- NOVO

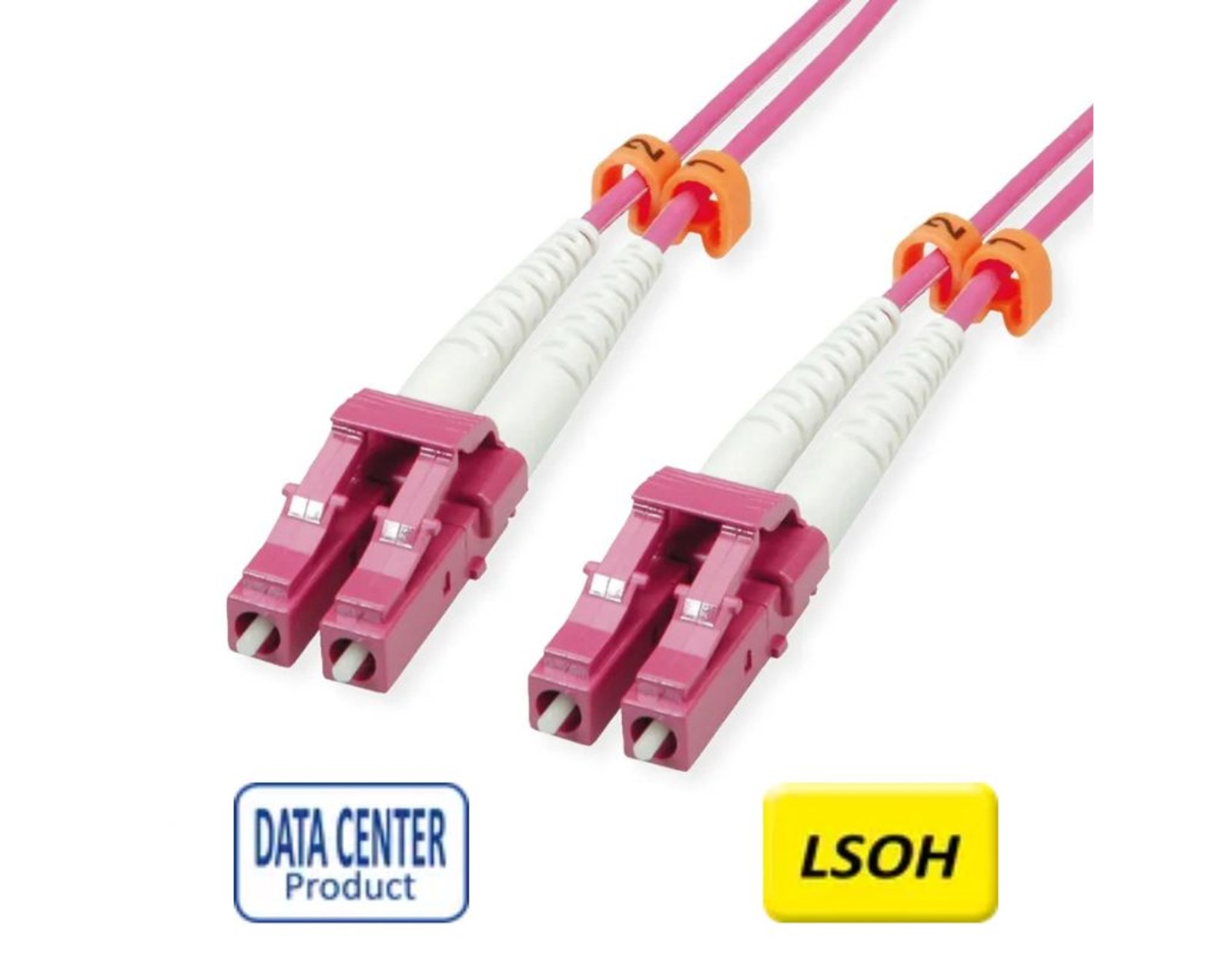

Roline VALUE optički mrežni kabel 50/125µm LC/LC Duplex, OM4, LSOH, ljubičasti, 2.0m
8,02 €
- Šifra proizvoda
- 21.99.8832
- Kataloški broj
- 21.99.8832
- Jamstvo
- 12 mjeseci
- Raspoloživost
-
raspoloživo
- Security for the future
- The OM4 fiber and connector quality with very low insertion ensure an excellent quality at very high bandwidths
- It supports 10 Gb/s Ethernet, Fibre Channel, and OIF applications to 550 meters, extends the system cost benefits to ultra long building backbones and medium length campus backbones
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
* Typical attenuation of a standard LC connector: 0.5 dB
* Typical attenuation of a low-loss LC connector: 0.15 dB
- Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
- Duplex cables with fiber type Multi-mode 50/125µm, OM4
Specifications
- Colour: Violet
- Length: 2.0 m
- Quantity of fibre: 2
- Conductor composition: Compact conductor
- Cable type: Duplex Cable
- External cable: No
- Fibre section: 50/125µm OM4
- Connection ports: LC / LC
- Side 1 Connector Type: LC
- side 1 connector ferrules: low loss
- Side 2 Connector Type: LC
- side 2 connector ferrules: low loss
- Kevlar strain relief: Yes
- External cable diameter: 2× 4 mm
- Mantle of external cable: LS0H
- Cable LSOH: Yes
- Weight: 20.2 g
- The OM4 fiber and connector quality with very low insertion ensure an excellent quality at very high bandwidths
- It supports 10 Gb/s Ethernet, Fibre Channel, and OIF applications to 550 meters, extends the system cost benefits to ultra long building backbones and medium length campus backbones
- The cable assembled with "low-loss" connectors achieve very good values for insertion loss and reflection. In comparison:
* Typical attenuation of a standard LC connector: 0.5 dB
* Typical attenuation of a low-loss LC connector: 0.15 dB
- Modal Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of the EMBC requirements)
- Duplex cables with fiber type Multi-mode 50/125µm, OM4
Specifications
- Colour: Violet
- Length: 2.0 m
- Quantity of fibre: 2
- Conductor composition: Compact conductor
- Cable type: Duplex Cable
- External cable: No
- Fibre section: 50/125µm OM4
- Connection ports: LC / LC
- Side 1 Connector Type: LC
- side 1 connector ferrules: low loss
- Side 2 Connector Type: LC
- side 2 connector ferrules: low loss
- Kevlar strain relief: Yes
- External cable diameter: 2× 4 mm
- Mantle of external cable: LS0H
- Cable LSOH: Yes
- Weight: 20.2 g
- Duljina
- 2.0m
- Tip
- 50/125µm
- Konektor 1
- LC
- Konektor 2
- LC
- Masa
- 0,22
- grupa
- PASIVNA MREŽNA OPREMA
- grupa
- ROLINE Kabeli i pribor
- grupa
- Optički kabeli
- brand
- ROLINE VALUE
