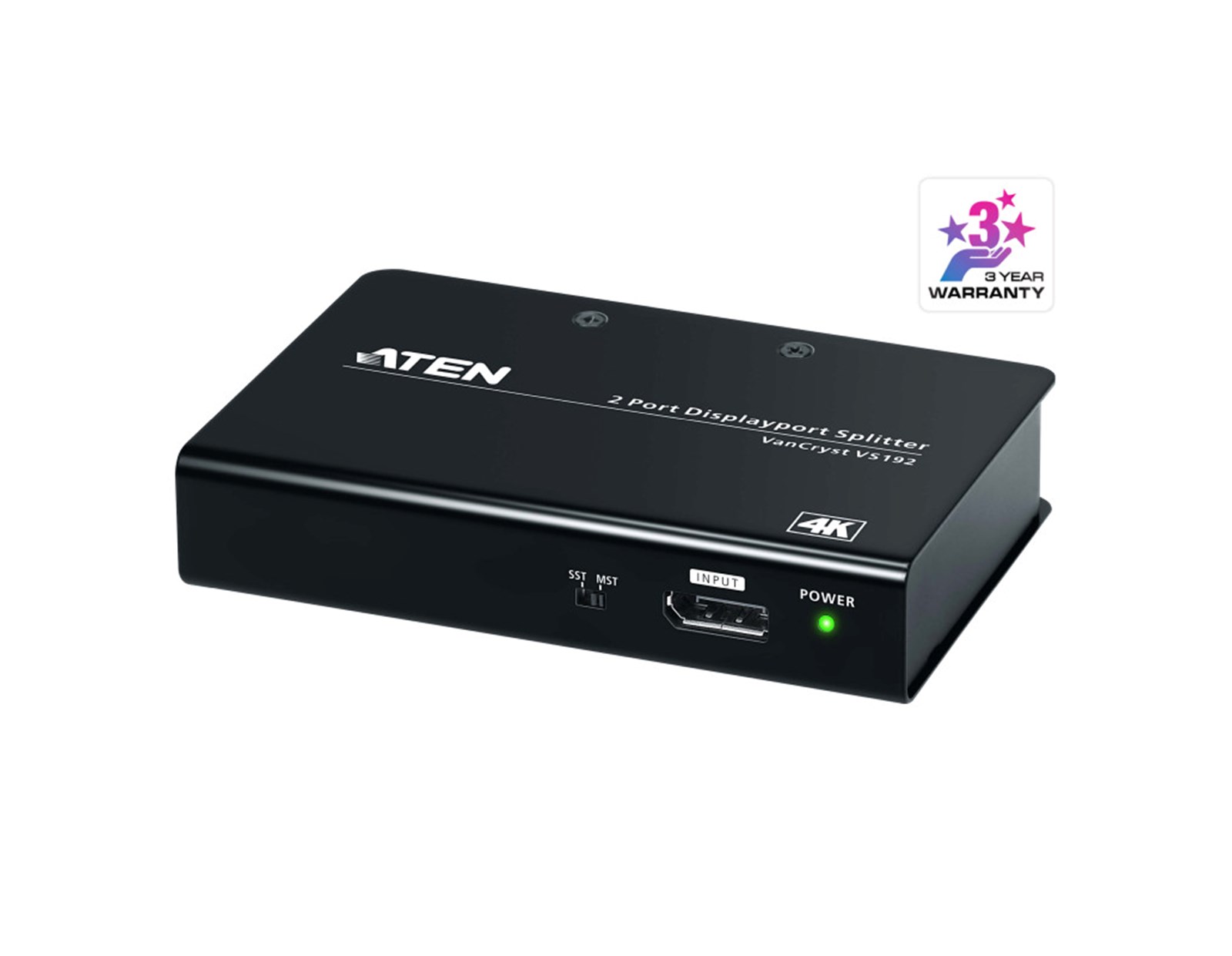

Aten 2-port True 4K DisplayPort Splitter

- The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to 2 DisplayPort displays. The VS192, not only splits but also expands DisplayPort audio/video signals on 2 DisplayPort monitors, is ideal for any multi-display application.

- The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in corporate, educational, and commercial settings.

Specifications
Video Output
- Interfaces: 2 x DisplayPort Female (Black)
- Max. Distance: 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz)
*tested with 2L-7D04DP

Video Input
- Interfaces: 1 x DisplayPort Female (Black)
- Max. Distance: 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz)
*tested with 2L-7D04DP

Video
- Compliance: DP 1.2a; HDCP 1.3
- Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz
- Max. Data Rate: 21.6 Gbps (5.4 Gbps per lane)

Connectors
- Power: 1 x DC Jack
- Power Consumption: DC5V:1.185W:6BTU

Environmental
- Operating Temperature: 0-40 °C
- Storage Temperature: -20 - 60 °C
- Humidity: 0 - 80% RH, Non-Condensing

Physical Properties
- Housing: Metal
- Weight: 0.30 kg ( 0.66 lb )
- Dimensions (L x W x H): 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
- Carton Lot: 20 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
