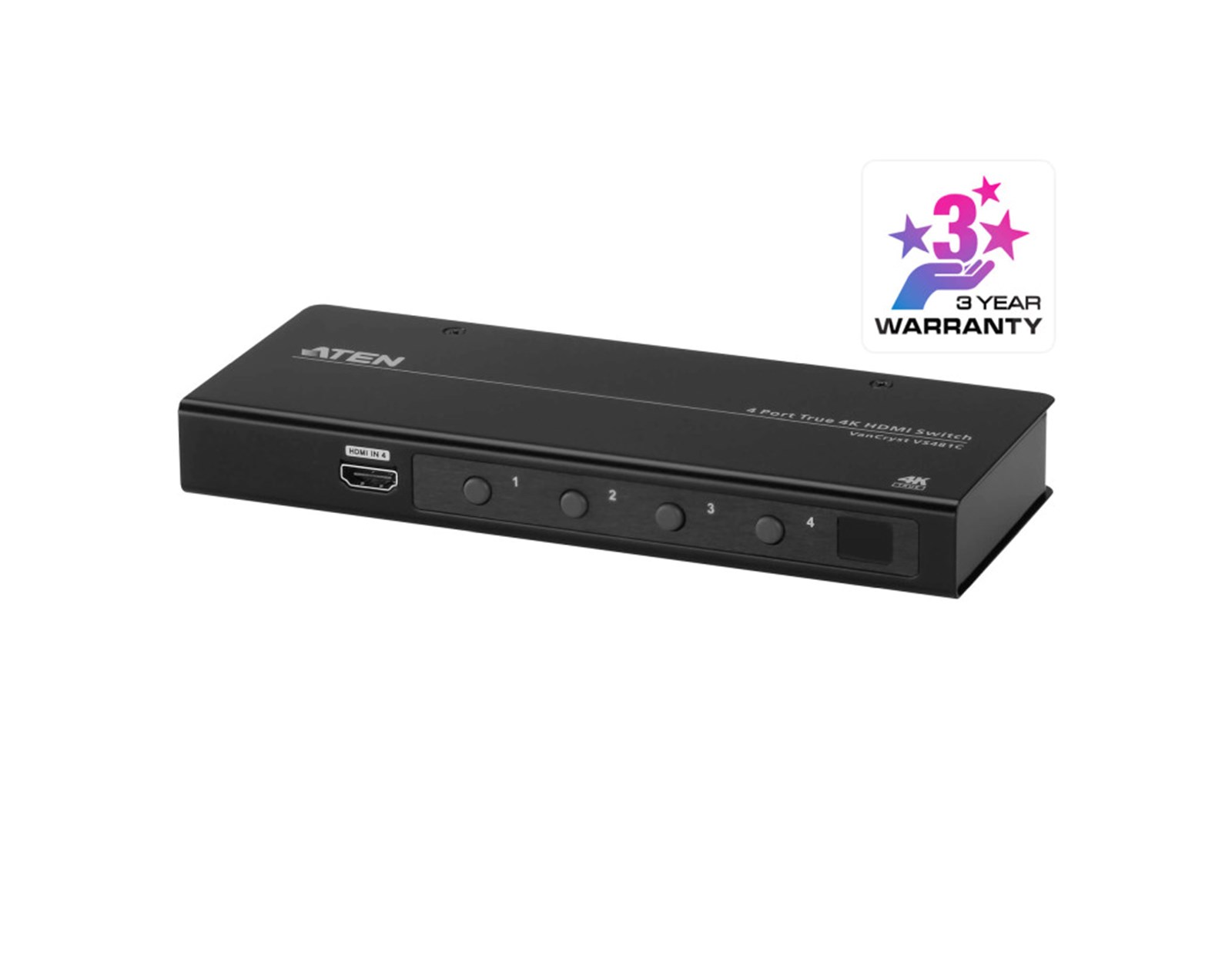

Aten 4-Port True 4K HDMI Switch

- The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.

- Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.

Specifications
Switches
- DIP: Auto Switch ON/OFF

Video Input
- Interfaces: 4 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video
- Max. Data Rate: 18 Gbps (6 Gbps Per Lane)
- Max. Pixel Clock: 600 MHz
- Compliance:

• HDMI 2.0 (3D, Deep Color, 4K)

• HDCP 2.2

• Consumer Electronics Control (CEC)
- Max. Resolution: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Control
- RS-232

• Connector:1 x DB-9 Female (Black)

• Baud Rate:19200 / Data Bits:8 / Stop Bits:1 / Parity:NO / Flow Control:NO
- IR

• 1 x Mini Stereo Jack Female (Black)

• 1 x IR Receiver

Connectors
- Power: 1 x DC Jack (with locking)

Power Consumption
- DC5V:0.924W:20BTU

Environmental
- Operating Temperature: 0-40 °C
- Storage Temperature: -20 - 60 °C
- Humidity: 0 - 80% RH, Non-Condensing

Physical Properties
- Housing: Metal
- Weight: 0.47 kg ( 1.04 lb )
- Dimensions (L x W x H): 20.00 x 8.21 x 2.50 cm (7.87 x 3.23 x 0.98 in.)
- Carton Lot: 10 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
