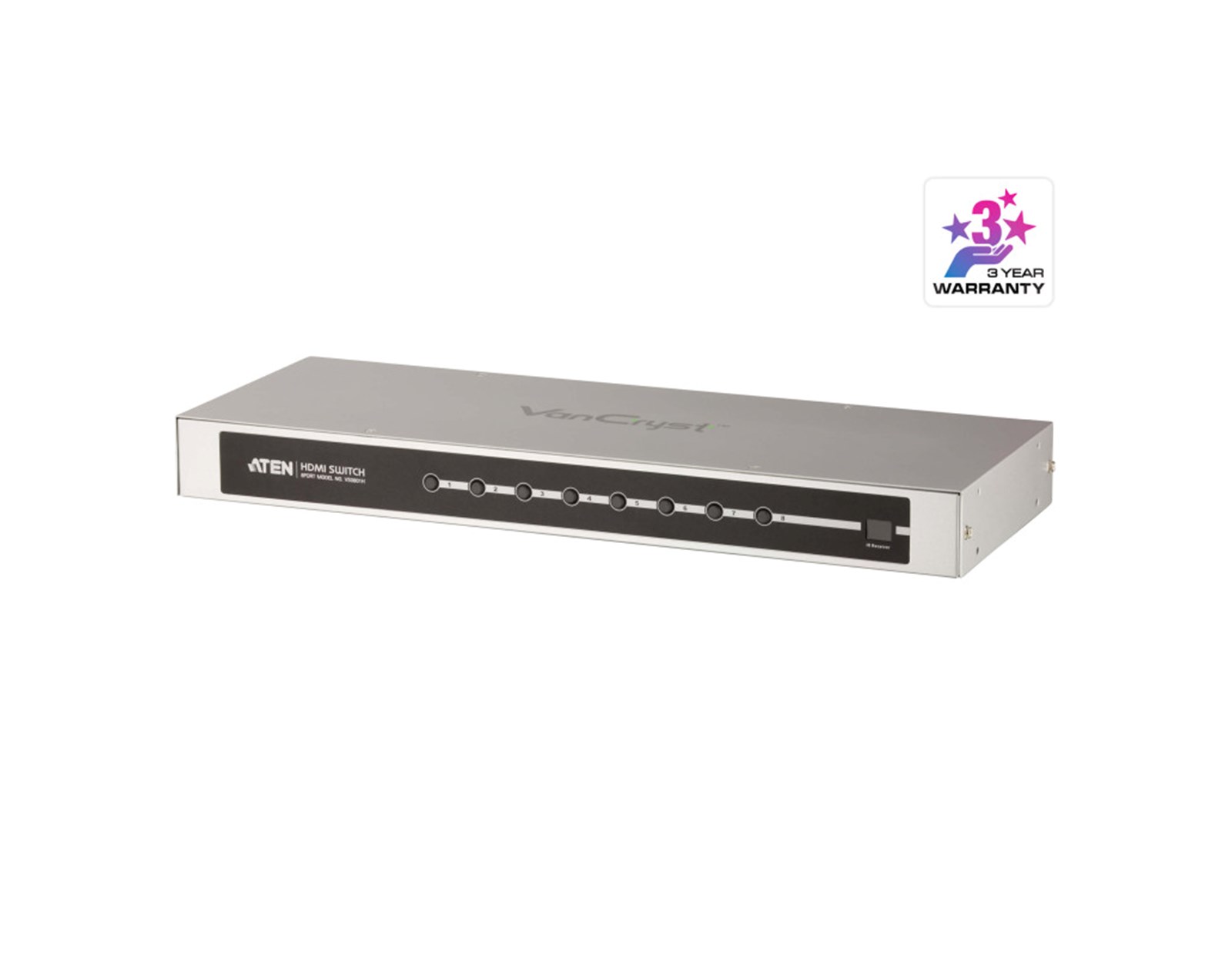

Aten 8-Port HDMI Audio/Video Switch with IR Remote Control

- With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

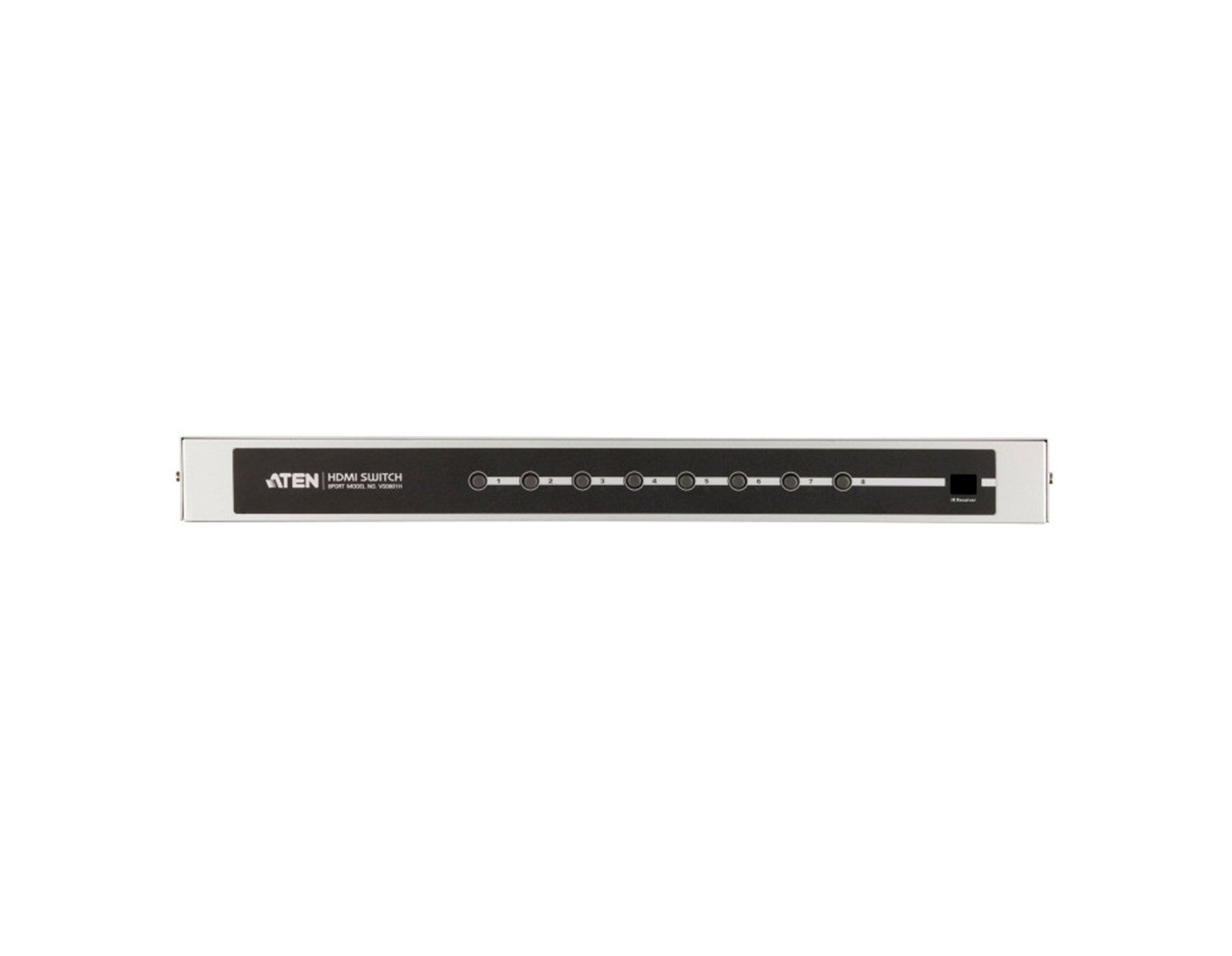

- The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Specifications
Video Input
- Interfaces: 8 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 3m 1920x1080 60 (4:4:4)

Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 15m 1920x1080 60 (4:4:4)

Video
- Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
- Max. Pixel Clock: 225 MHz
- Compliance:

• HDMI (3D, Deep Color)

• HDCP Compatible

• Consumer Electronics Control (CEC)
- Max. Resolution: Up to 1080p

Audio
- Input: 8 x HDMI Type A Female (Black)
- Output: 1 x HDMI Type A Female (Black)

Control
- RS-232: Connector: 1 x DB-9 Female (Black)

Baud Rate and Protocol
- Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

Connectors
- Power: 1 x DC Jack

Power Consumption
- DC5.3V:4.37W:20BTU

Environmental
- Operating Temperature: 0 - 50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing

Physical Properties
- Housing: Metal
- Weight: 1.75 kg ( 3.85 lb )
- Dimensions (L x W x H): 43.70 x 15.98 x 4.40 cm (17.2 x 6.29 x 1.73 in.)
- Carton Lot: 3 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
