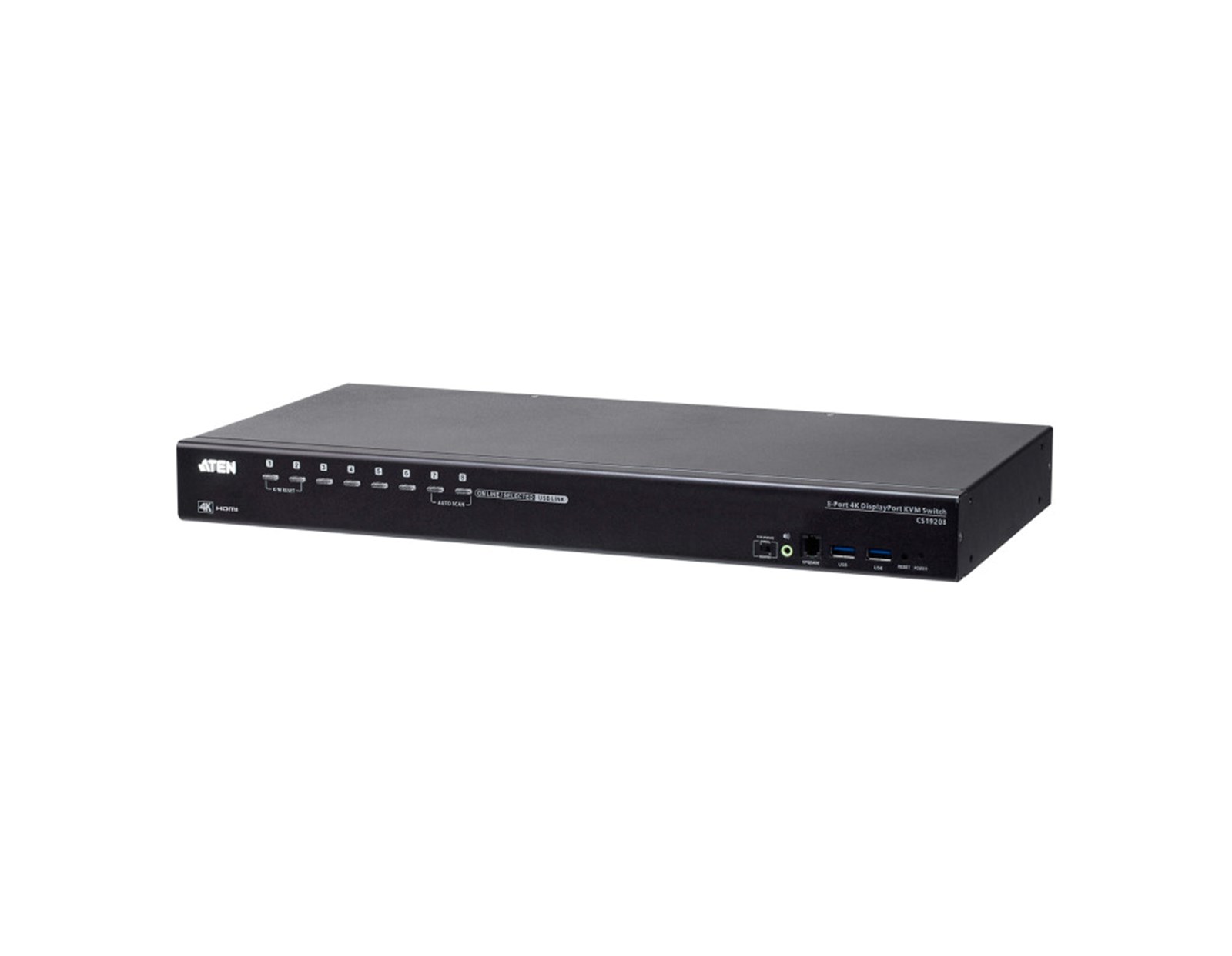

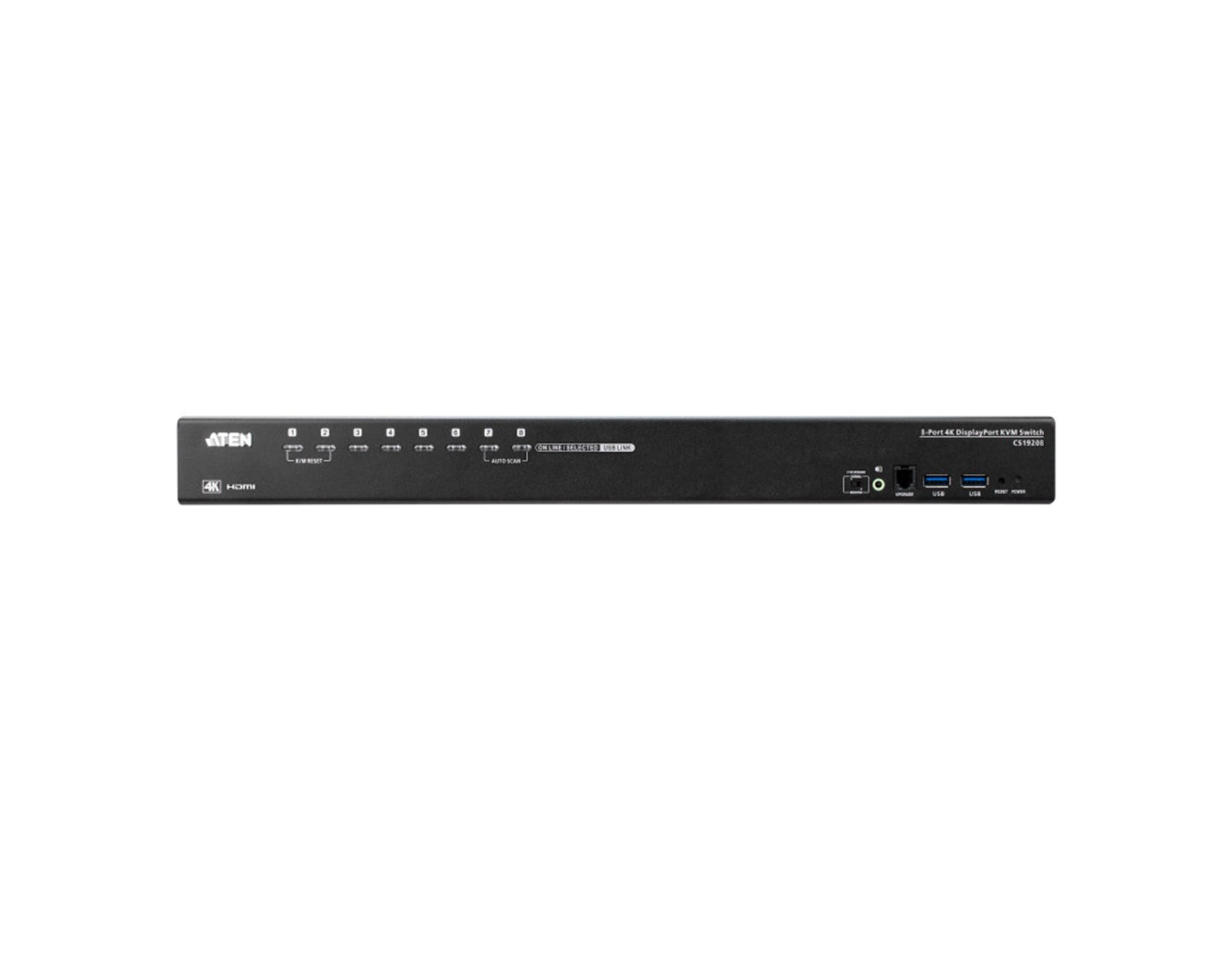

Aten 8-Port USB 3.0 4K DisplayPort KVM Switch

- The ATEN CS19208 8-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 8 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.

- To meet the needs of easy expansion and flexibility, the CS19208 can be cascaded to two levels to control up to 128 computers from a single console. Furthermore, the CS19208 supports multi-display function by stacking up to eight CS19208 units to compare and analyze information on 8 monitors at most, which substantially streamlines the working environment.

- With two patented ATEN technology – Video DynaSync and EDID Expert , the CS19208 can optimize display resolution, accelerate switching between ports and power up smoothly while eliminating boot-up display problems.

- Besides, the CS19208 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps, allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods, the CS19208 offers pushbuttons, hotkeys, RS-232 commands, and OSD with newly-designed UI, bringing effortless and intuitive operations.

- To eliminate security concern, a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities, the CS19208 is ideal for server room/computer room management applied in industries with requirements for high-quality images and multitasking, such as Enterprise, Government, Production, Telecom, Finance, Medical Healthcare, Industrial Automation, etc.

Specifications
Computer Connections
- Direct: 8
- Maximum: 128 (via Cascade)
- Port Selection: OSD, Hotkey, Pushbutton, RS-232 Commands

Connectors
- Console Ports

• 1 x DisplayPort Female

• 1 x HDMI Female (Black)

• 2 x USB Type A Female

• 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
- KVM Ports

• 8 x DisplayPort Female

• 8 x USB3.1 Gen1 Type B Female (Blue)

• 8 x 3.5mm Audio Jack Female (Green)
- Firmware Upgrade: 1 x RJ11 Female (Black)
- Power: 1 x DC Jack
- USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 2 x front)

Switches
- Port Selection: 8 x Pushbutton
- Reset: 1 x Semi-recessed Pushbutton
- Firmware Upgrade Recovery: 1 x Slide Switch

LEDs
- On Line /Selected: 8 (Orange)
- Power: 1 (Green)
- USB Link: 8 (Green)

Emulation
- Keyboard / Mouse USB
- Video: DisplayPort: 4096 x 2160 60Hz; HDMI: 4096 x 2160 60Hz
- Scan Interval: 0 – 255 seconds (default: 5 secs.)
- Power Consumption: DC12V:18.44W:136BTU

Environmental
- Operating Temperature: 0 – 40°C
- Storage Temperature: -20 – 60°C
- Humidity: 0 – 80% RH, Non-condensing

Physical Properties
- Housing: Metal
- Weight: 3.11 kg ( 6.85 lb )
- Dimensions (L x W x H): 43.24 x 21.43 x 4.40 cm (17.02 x 8.44 x 1.73 in.)
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
