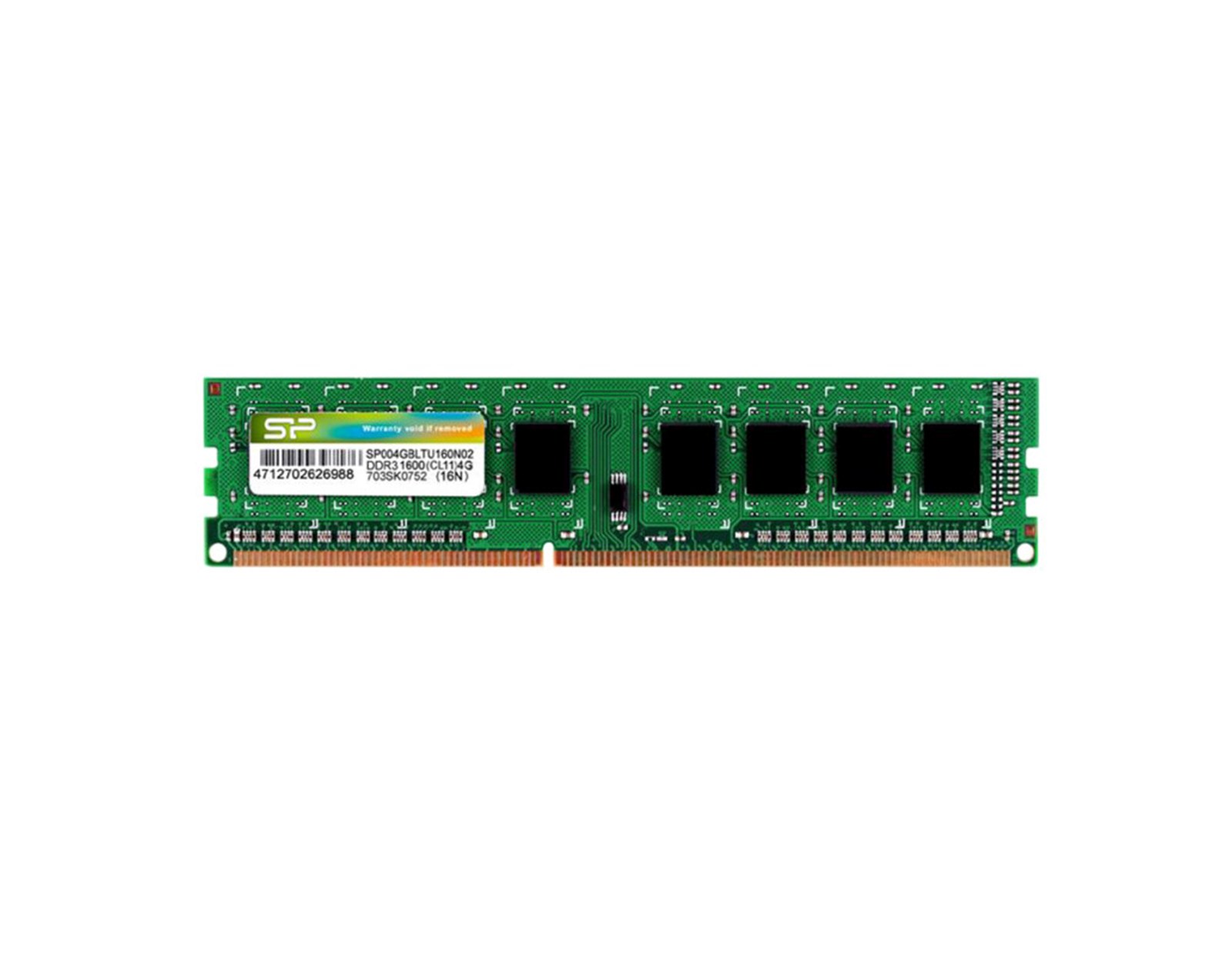

Silicon Power DIMM 8GB DDR3 1600MHz 1.5V CL11

- DDR3 functionality and operations supported as defined in the component data sheet
- 240 pin, unbuffered dual in-line memory module (UDIMM)
- Reset pin for improved system stability
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Fly-by topology
- Terminated control, command, and address bus
- Adjustable data-output drive strength
- Serial presence-detect (SPD) EEPROM
- Gold edge contacts
- Pb-free

Specifications
- Capacity: 8 GB
- Voltage: 1.5V
- Type: DRAM memory module
- Chip Density: 512Mx8 16Chips
- Technology: DDR3 SDRAM
- Form Factor: DIMM 240-pin
- Module Height (inch): 1.2
- Speed: 1600 MHz (PC3-12800)
- Latency Timings: CL11 (1600)
- Data Integrity Check: Non-ECC
- Features: Dual rank, On-Die Termination (ODT), Serial Presence Detect (SPD), unbuffered
