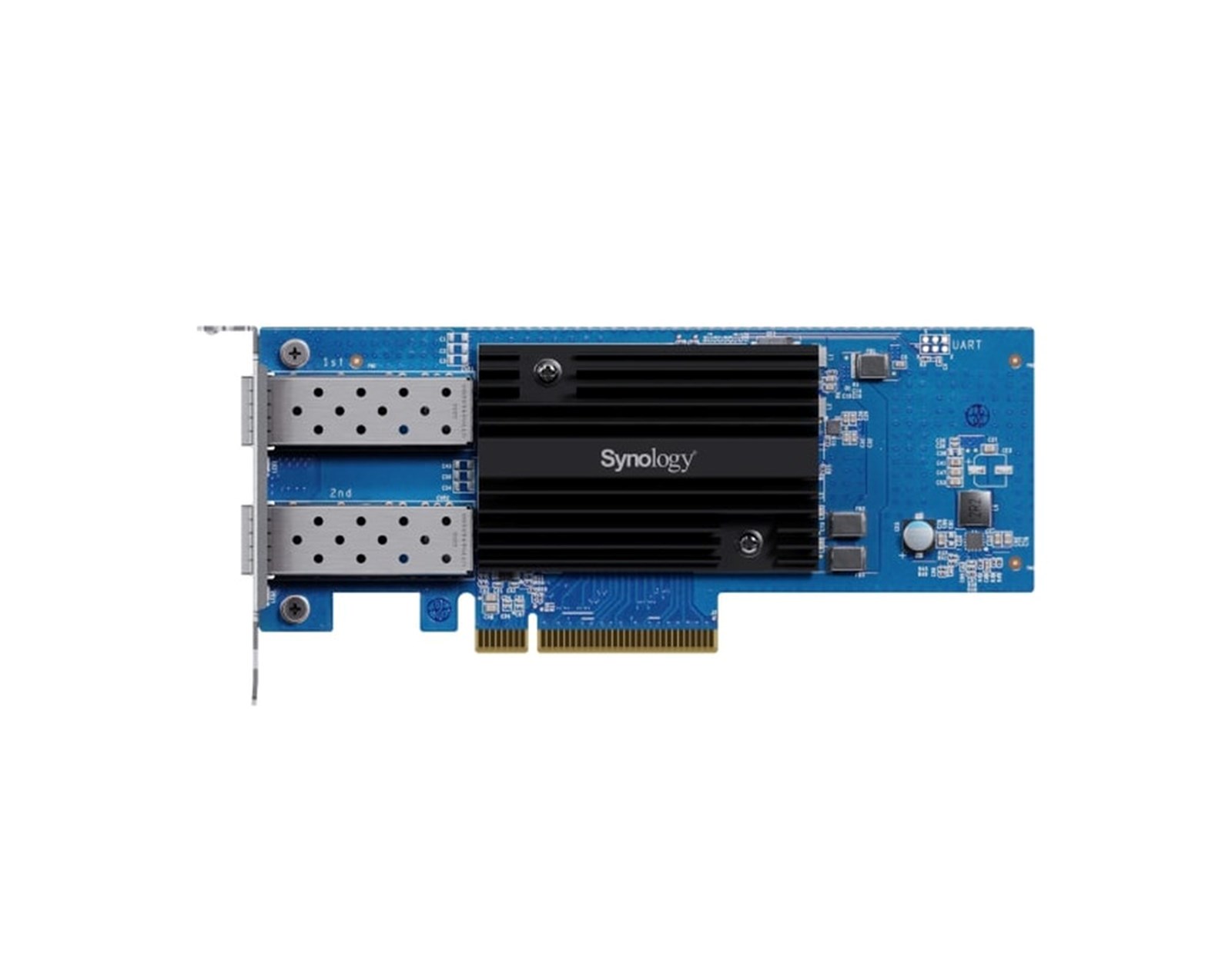

Synology E25G30-F2, dual-port 25GbE SFP28 mrežni adapter

E25G30-F2
- Dual-port 25GbE SFP28 add-in card for Synology systems
- 25GbE connectivity for seamless integration to modern enterprise networks

Throughput
- Increase network performance with 25GbE connectivity

Flexibility
- Optical SR, Optical LR, and DAC support

Compatibility
- Designed for maximum performance and reliability in Synology systems

High-performance connectivity upgrade
Flexible SFP28 options
- Support for short-range and long-range transceivers as well as DAC options enables flexible connectivity choices.

Link aggregation
- Dual 25GbE ports can be combined into a Link Aggregation Group to boost throughput up to 50 Gb/s, while also providing port failover and load balancing functionality.1

CPU offloading and load balancing
- Support for CPU offloading and load balancing technologies enables optimal system performance.

Specifications
Hardware Specifications
General
- Host Bus Interface: PCIe 3.0 x8
- Bracket Height: Low Profile and Full Height
- Size (Height x Width x Depth): 69 mm x 168 mm x 17.3 mm
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH
- Warranty: 5 Years
- Notes: The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Network
IEEE Specification Compliance
* IEEE 802.3ad Link Aggregation
* IEEE 802.3ae 10Gbps Ethernet
* IEEE 802.3by 25Gbps Ethernet
Data Transfer Rates: 25 Gbps/10 Gbps

Supported Features
* TCP Segmentation Offload (TSO)
* Receive Side Scaling (RSS)
* Generic Segmentation Offload (GSO)
* 1.5 - 9 KB Jumbo Frame
* TCP/UDP Checksum Offload
* Transmit side scaling (TSS)
* SR-IOV
* Large receive offload (LRO)
* Notes: As mixed link speeds are not supported, both network ports must be configured with the same link speed.

Compatibility
Applied Models
* Notes: DSM version requirement: 7.1.1-42962 Update 5 or later version
