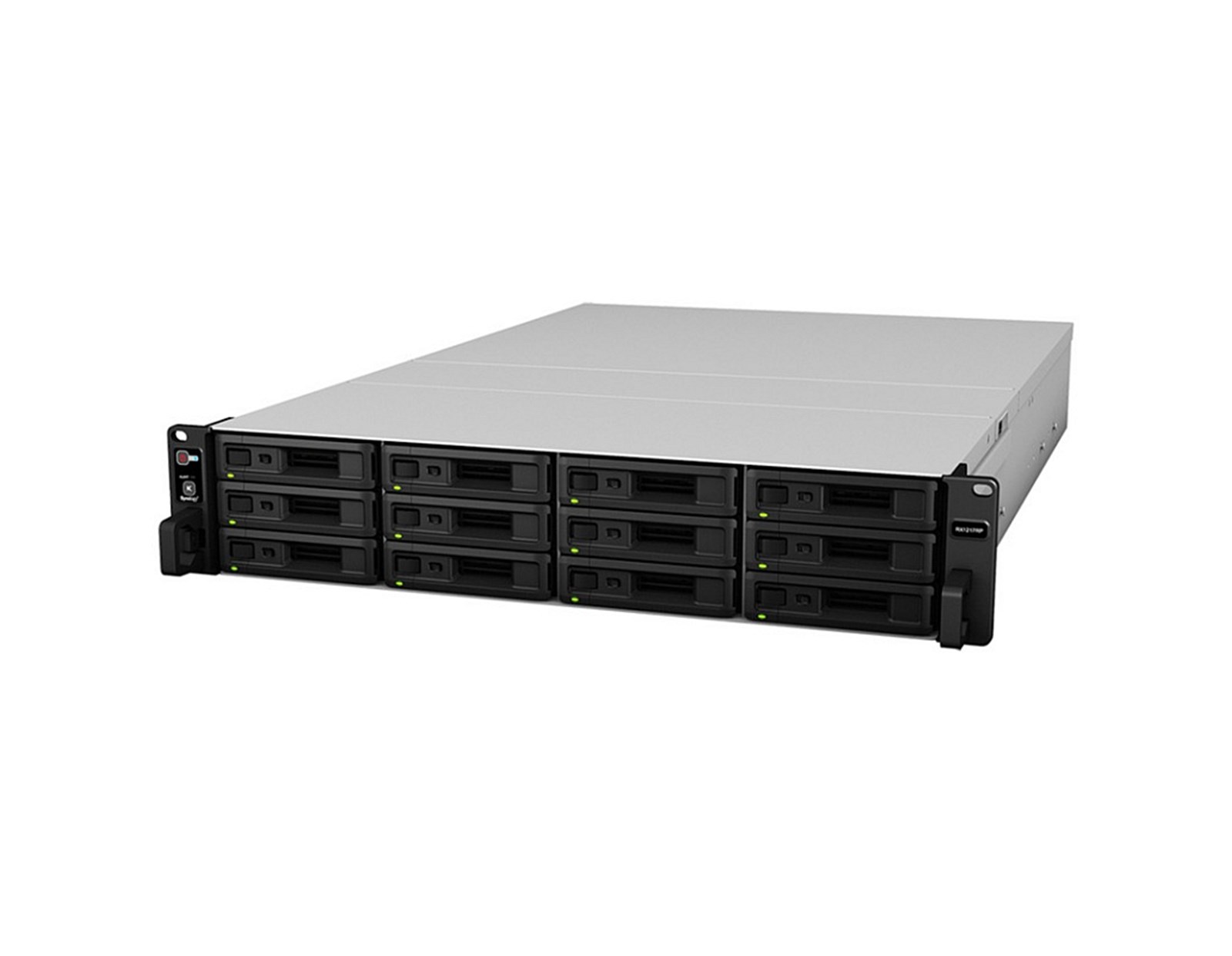

Synology RX1217 12-Bay (proširenje za 12 diskova)

- Scale up your RackStation in a breeze

VOLUME EXPANSION & BACKUP
- When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots
- The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process
- To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail
- When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations

RELIABLE PLUG-and-USE DESIGN
- Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation - as if they are part of the internal drives of Synology RackStation
- SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance

GREEN & EASY TO MANAGE
- Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time
- This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently

HADRWARE SPECIFICATIONS
APPLIED MODELS
- Supports creating volumes across different units
* 19 series: RS1619xs+
* 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+
* 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs
* 16 series: RS2416RP+, RS2416+
* 14 series: RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+
* 13 series: RS3413xs+
* 12 series: RS3412RPxs, RS3412xs, RS2212RP+, RS2212+
* 11 series: RS3411RPxs, RS3411xs, RS2211RP+, RS2211+

STORAGE
- Drive Bays: 12
- Compatible Drive Type:
* 3.5" SATA HDD
* 2.5" SATA HDD
* 2.5" SATA SSD
- Maximum Internal Raw Capacity: 192 TB (16 TB drive ×12) (Capacity may vary by RAID types)
- Hot Swappable Drive: Yes
RAID Management through Synology DSM: Yes

EXTERNAL PORTS
- Expansion Port: 1

APPEARANCE
- Size (H×W×D):
* 88×430.5×664 mm
* 88×430.5×692 mm (for RP model)
- Size (H×W×D) (with server ears):
* 88×482×696 mm
* 88×482×724 mm (for RP model)
- Weight:
* 12.7 kg
* 13.4 kg (for RP model)
- Rack Installation Support: 4-post 19" rack (Synology Rail Kit - RKS1317)
* Notes: The rail kit is sold separately

POWER
- Power Recovery: Synchronized with the Synology RackStation
- Power Supply Unit / Adapter: 500 W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption:
* 68.60 W (Access)
* 27.45 W (HDD Hibernation)
* 71.3 W (Access) (for RP model)
* 31.2 W (HDD Hibernation) (for RP model)
- British Thermal Unit:
* 234.23 BTU/hr (Access)
* 93.73 BTU/hr (HDD Hibernation)
* 243.52 BTU/hr (Access) (for RP model)
* 106.53 BTU/hr (HDD Hibernation) (for RP model)
- Redundant Power Supply (for RP model): Yes
* Notes: Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s)

TEMPERATURE
- Operating Temperature: 5°C to 35°C (40°F to 95°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH

OTHERS
- System Fan: 80×80 mm ×3 pcs
- Easy Replacement System Fan: Yes
- Noise Level: 54.6 dB(A), 54.2 dB(A) (for RP model)
* Notes: Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

CERTIFICATION
- FCC, CE, BSMI, EAC, RCM, KC

ENVIRONMENT & PACKAGING
- Environment: RoHS Compliant
- Packaging Content:
1× Main Unit
1× Accessory Pack
1× AC Power Cord
2× AC Power Cord (for RP model)
1× Expansion Cable: Infiniband
1× Quick Installation Guide
- Optional Accessories: Synology Rail Kit Sliding - RKS1317
