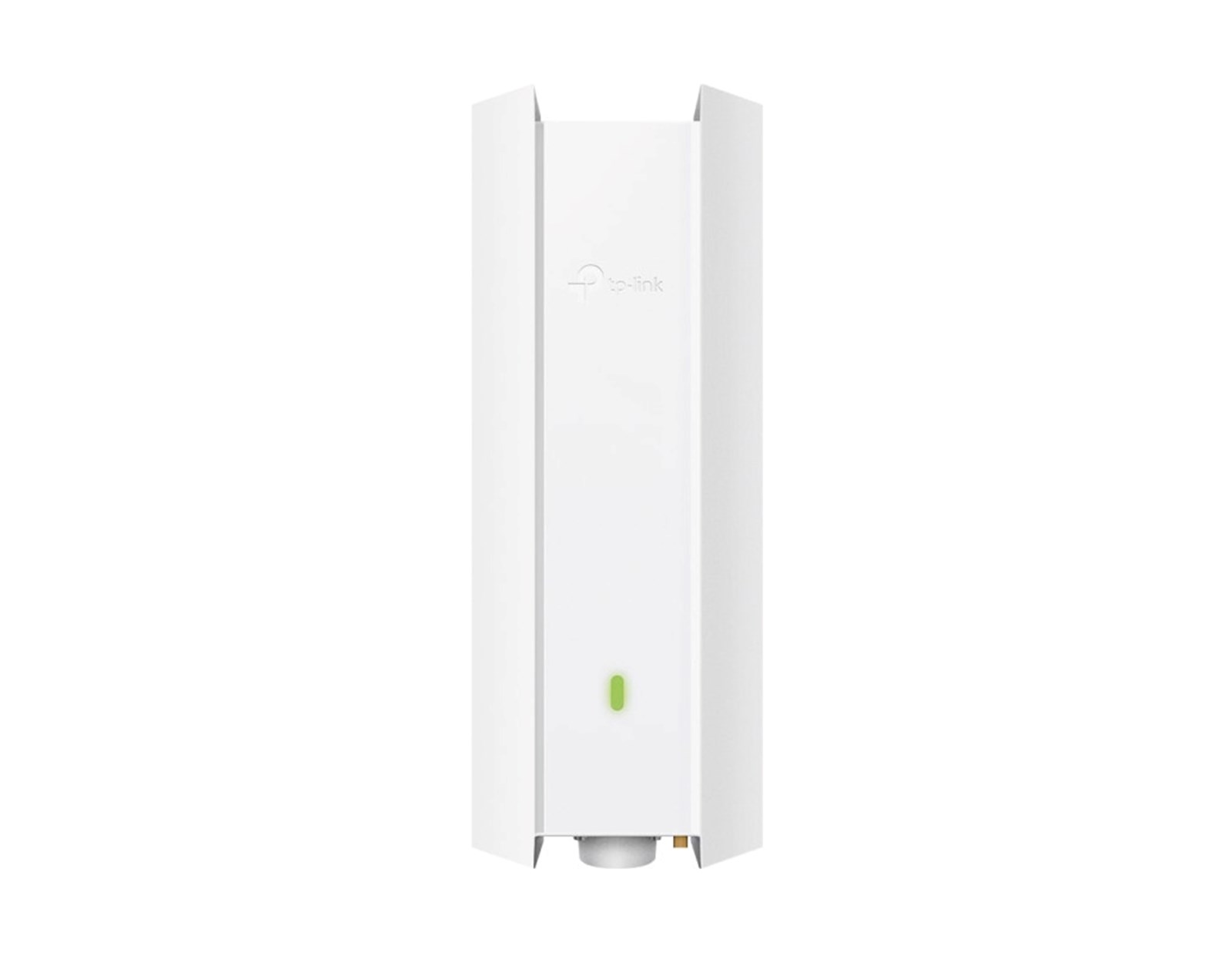

TP-Link AX1800 bežična pristupna točka zidna/stropna Dual-Band Wi-Fi 6 (AP) 574Mbps/1201Mbps (2.4GHz/5GHz), 802.11ax/ac/n/g/b/a, 1×G-LAN, podrška za PoE, 4×interna antena

217,84 €
  • Šifra proizvoda
  • EAP610-Outdoor
  • Kataloški broj
  • EAP610-Outdoor
  • Jamstvo
  • 5 godina
  • Raspoloživost
  • raspoloživo
Superior WiFi 6 Speeds:
- Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology

Higher Network Efficiency:
- Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO

Long-Range Coverage:
- Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure

Omada Mesh Technology:
- Enables wireless connectivity between access points for extended range and flexible deployment

Stay Smooth with Fast Roaming:
- Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points

Centralized Cloud Management:
- Integrates into Omada SDN for cloud access and remote management

Specifications
HARDWARE FEATURES
- Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
- Button: Reset
- Power Supply

• 802.3at PoE

• 48V/0.5A Passive PoE (PoE Adapter Included)
- Power Consumption

• EU: 12.5W (802.3at PoE or Passive PoE)

• US: 14.7W (802.3at PoE or Passive PoE)
- Dimensions ( W x D x H )

• 280.4×106.5×56.8 mm (without antenna & mounting kit)
- Antenna

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi
- Weatherproof Enclosure: IP67
- Mounting: Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
- Wireless Client Capacity: 250+
- Concurrent Clients: 250+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz, 5 GHz
- Signal Rate

• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)

• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)

• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Transmit Power

• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
- Wireless Functions

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS (WMM)

• MU-MIMO

• Omada Mesh

• Seamless Roaming

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client
- Wireless Security

• Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT
- Omada App: Yes
- Centralized Management

• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller
- Cloud Access

• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)

• OC300

• OC200

• Omada Software Controller
- Email Alerts: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c
- System Logging Local/Remote Syslog: Yes
- SSH: Yes
-Web-based Management: Yes
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents

• Access Point EAP610-Outdoor

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Waterproof Kits

• Waterproof Antenna

• Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Environment

• Operating Temperature: -30–70 ? (-22–158 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
