• NOVO

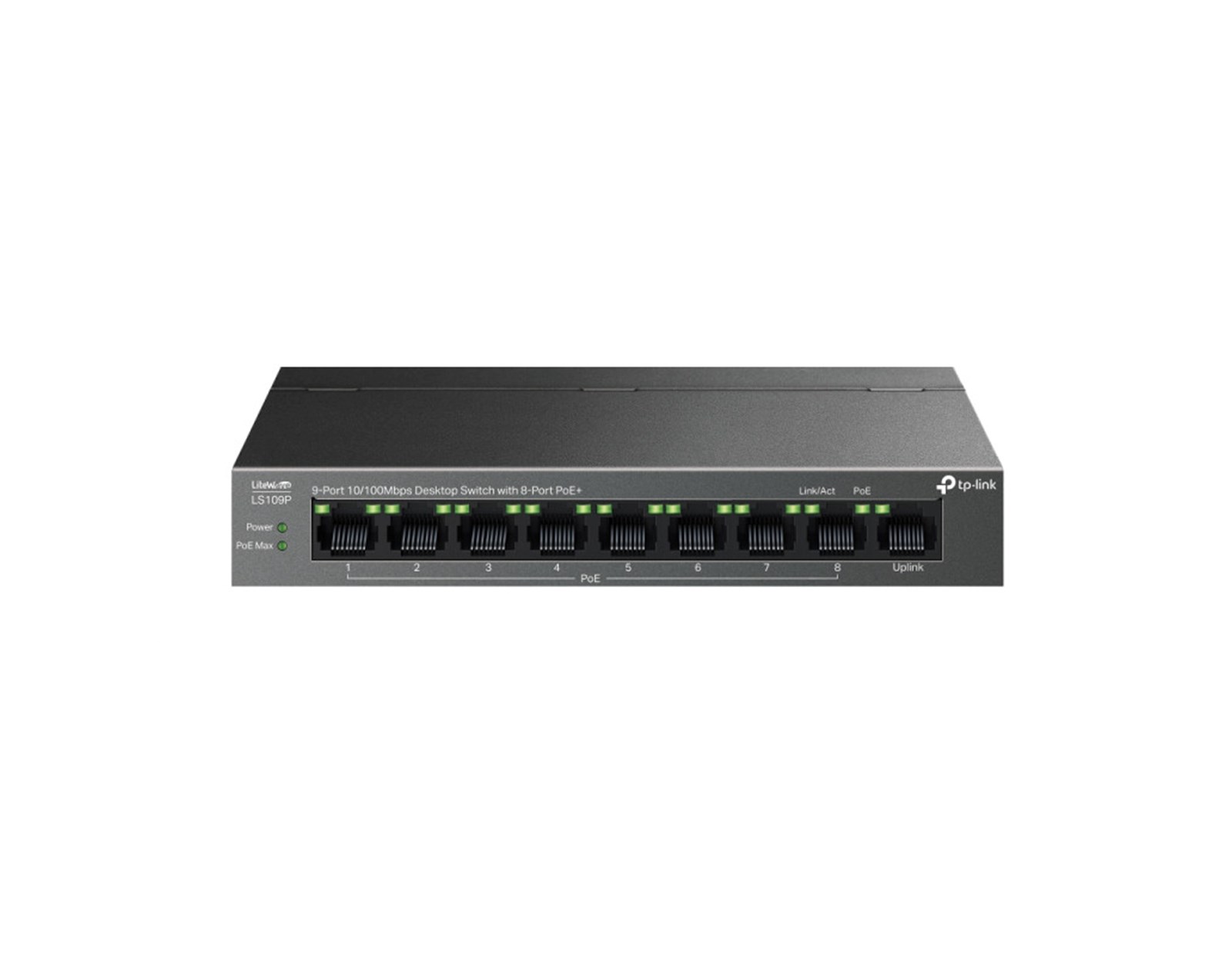

TP-Link 9-port Desktop preklopnik (Switch),9×10/100M RJ45 ports, 63W PoE, 8x port PoE+, do 250m PoE prijenos, Plug&play, metalno kućište

37,55 €
  • Šifra proizvoda
  • LS109P
  • Kataloški broj
  • LS109P
  • Jamstvo
  • 5 godina
  • Raspoloživost
  • raspoloživo
63 W PoE Budget:
- Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*

Up to 250 m PoE Transmission:
- With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**

PoE Auto Recovery:
- Automatically reboots your dropped or unresponsive PoE-powered devices.

Traffic Separation for Higher Security:
- Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.

Plug and Play:
- Simply plug and play for instant connectivity with no configuration required.

Silent Operation:
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

Reliable Hardware Design:
- Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications
HARDWARE FEATURES
- Interface

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)

• AUTO Negotiation

• AUTO MDI/MDIX
- Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity: Fanless
- Installation

• Desktop

• Wall Mounting
- Power Supply: External Power Adapter (Output: 53.5VDC / 1.31A)
- PoE Ports (RJ45)

• Standard: 802.3 af/at compliant

• PoE Ports: Ports 1–8, up to 30 W PoE output per port

• Power Supply: 63 W
- LED Indicator

• Power

• Link/Act

• PoE Status

• PoE MAX
- Dimensions ( W x D x H ): 6.7×3.9×1.1 in (171×98×27 mm)
- Max Power Consumption

• 3.67 W (220 V/50 Hz no PD connected)

• 73.24 W (220 V/50 Hz with 63 W PD connected)
- Max Heat Dissipation

• 12.48 BTU/h (220 V/50 Hz no PD connected)

• 249 BTU/h (220 V/50 Hz with 63 W PD connected)

PERFORMANCE
- Switching Capacity: 1.8 Gbps
- Packet Forwarding Rate: 1.3392 Mpps
- MAC Address Table: 2K
- Jumbo Frame: 1.5 KB

SOFTWARE FEATURES
- Advanced Features

• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)

• Isolation Mode Button (Ports 1–8)

• PoE Auto Recovery Button (Ports 1–8)

• Compatible With IEEE 802.3af/at Compliant PDs

• Mac Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control

• Green Technology
- Transfer Method: Store and Forward

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents

• LS109P

• Power Adapter

• Installation Guide

• Rubber Feet
- Environment

• Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

  • LAN
  • 10/100M
  • Vrsta kućišta
  • Metalno
  • Masa
  • 1,07
  • Broj portova
  • 9
