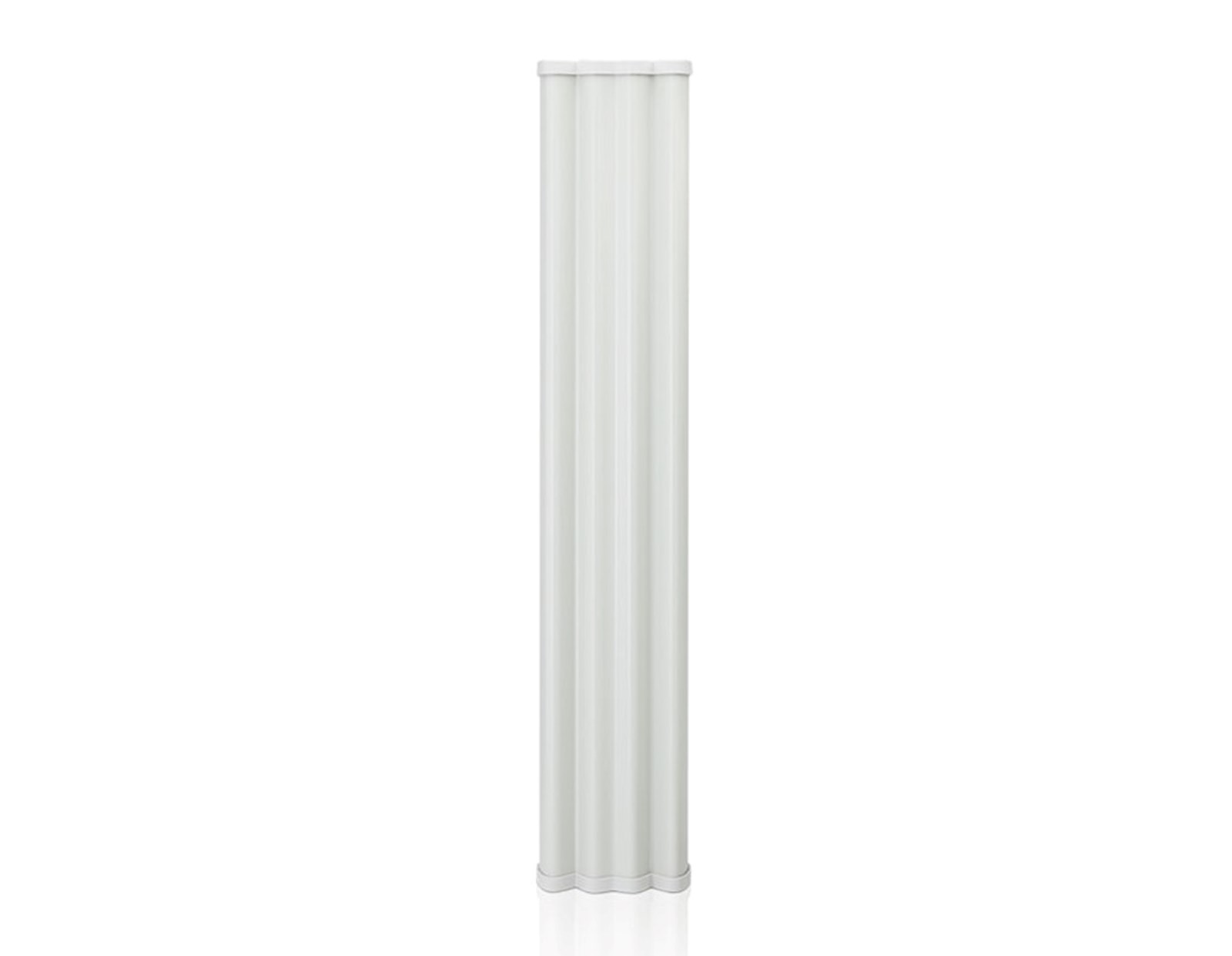

Ubiquiti airMax AM-5G20-90, Sektor Antena 5GHz, 90°, 20dBi

- airMAX 2x2 BaseStation Sector Antenna Pair the airMAX Sector Antenna with a Rocket M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks

Specifications
- Frequency Range: 5.15 - 5.85 GHz
- Gain: 19.4 - 20.3 dBi
- HPOL Beamwidth: 91° (6 dB)
- VPOL Beamwidth: 85° (6 dB)
- Electrical Beamwidth: 4°
- Electrical Downtilt: 2°
- Max. VSWR: 1.5:1
- Wind Survivability: 125 mph
- Wind Loading: 26 lbf @ 100 mph
- Polarization: Dual-Linear
- Cross-pol Isolation: 28 dB Min.
- ETSI Specification: EN 302 326 DN2
- Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
- Dimensions: 700×135×70 mm
- Weight: 5.9 kg
