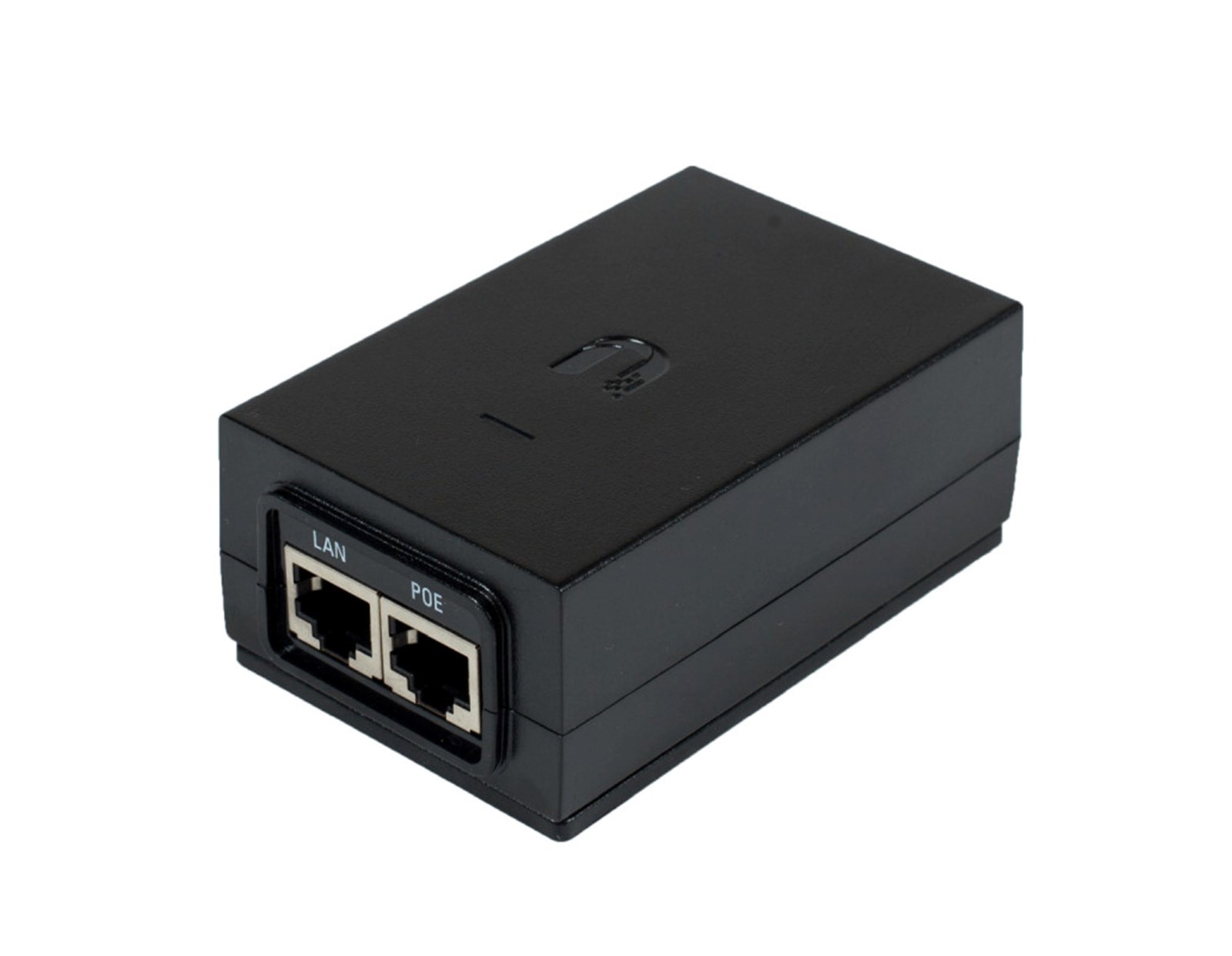

Ubiquiti PoE adapter 48V-24W (za IP kamere)

15,31 €
  • Šifra proizvoda
  • 41935
  • Kataloški broj
  • POE-48-24W
  • Jamstvo
  • 24 mjeseca
  • Raspoloživost
  • raspoloživo
Specifications
- Output Voltage: 48VDC @ 0.5A
- LAN Activity Indicator: No
- Gigabit LAN Port: No
- Remote Reset Capability: No
- Reset Button: No
- Rated Voltage: 100-240VAC @ 50/60Hz

- Input Current:
* 0.6A @ 120VAC
* 0.4A @ 240VAC
- Inrush Current:
* <60A Peak @ 120VAC
* <120A Peak @ 230VAC
- Efficiency: 80+%
- Output Ripple: 1% Max
- Switching Frequency: 65 kHz
- Line Regulation: <= 3%
- Load Regulation: <= 5%
- 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
- 4-Pair Powering: -
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -30C to 70C (-22F to 158F)
- Operating Humidity: 35 to 95% Noncondensing
- AC Connector: IEC-320 C6

- Data IN / POE: RJ45 Shielded Socket
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power

- Max. Surge Discharge: 1500A (8/20 µs) Power
- Peak Pulse Current: 36A (10/1000 µs) Data
- Shunt Capacitance: <5 pF data
- Response Time: <1 ns
- Certifications: CE, FCC, IC, UL
- Dimensions: 88×57×33 mm
- Weight: 135.5 g
