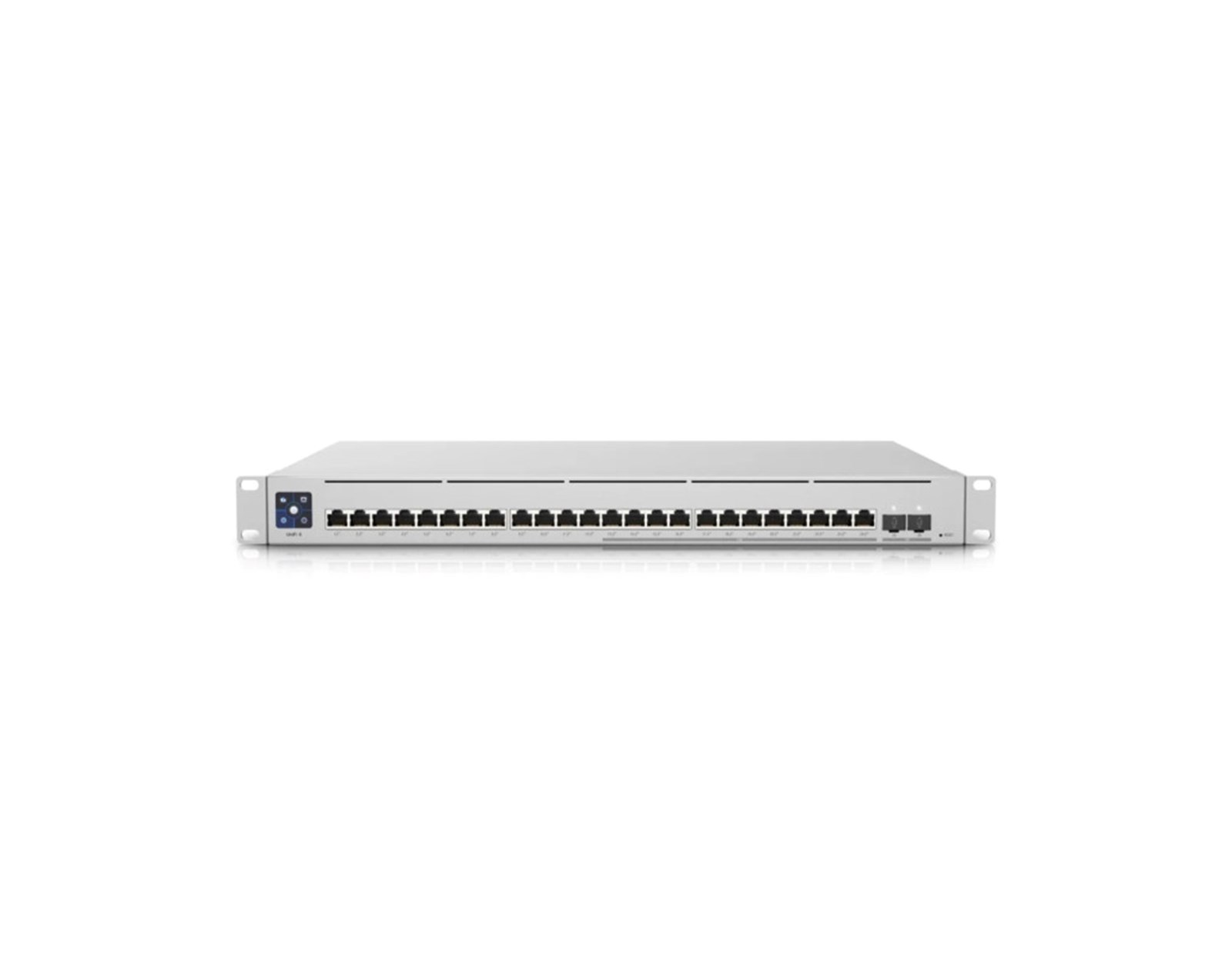

Ubiquiti UniFi Enterprise 24-port Gigabit PoE L3 Switch, 12×100/1000/2500Mbps, 12×10/100/1000Mbps, 1G/10Gbps SFP, Touchscreen LCD, Rackmoun, 400W (USW-Enterprise-24-PoE)

- A 24-port, Layer 3 switch with 2.5 GbE PoE+ output.

Features
- (12) 2.5 GbE, (12) GbE; all PoE+ ports
- (2) 10G SFP+ ports
- 400W total PoE availability
- DC power backup-ready
- Layer 3 switching

Specifications
Mechanical
- Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
- Weight: Without mounting brackets: 5.1 kg (11.3 lb)
- With mounting brackets: 5.2 kg (11.5 lb)
- Enclosure material: SGCC steel

Hardware
- Management interface: Ethernet In-Band
- Networking interface

• (12) GbE RJ45 ports

• (12) 2.5 GbE RJ45 ports

• (2) 10G SFP+ ports
- PoE interface: (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
- Total non-blocking throughput: 62 Gbps
- Switching capacity: 124 Gbps
- Forwarding rate: 92.25 Mpps
- Power method

• (1) Universal input, 100—240V AC, 8.5A Max., 50/60 Hz

• (1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
- Power supply: AC/DC, internal, 550W
- Supported voltage range: 100—240V AC
- Max. power consumption: 60W (Excluding PoE output)
- Total available PoE: 400W
- Max. PoE+ wattage per port by PSE. 34.2W
- Voltage range PoE mode:

• PoE: 44— 57V

• PoE+: 50—57V
- Services: SMB Layer 3 PoE GbE switch
- ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
- LCM display: (1) 1.3" color touchscreen
- Button: Factory reset
- Ambient operating temperature: -5 to 40° C (23 to 104° F)
- Ambient operating humidity: 10 to 95% noncondensing
- Certifications: CE, FCC, IC

Switching Features
Layer 2 features
- IGMP snooping
- STP / RSTP with priorities and port-level disable
- Port isolation
- Storm control
- Voice VLAN
- Port mirroring
- LACP port aggregation
- Multicast / broadcast rate limiting
- MAC address blocking
- Flow control
- 802.1X control
- Jumbo frames
- Proprietary loop protection
- DHCP snooping / guarding
- Egress rate limit
- LLDP-MED
- Port restricted by MAC
- Device isolation with ACLs

Layer 3 features
- DHCP for locally-managed networks
- DHCP relay
- Inter-VLAN routing between networks on same switch
- Static routing between local networks
- Network isolation with ACLs

LEDs
- System: Status
- Ethernet: Link/activity
- SFP+: Link/activity

Application Requirements
- UniFi Network: Version 5.14.12 and later
