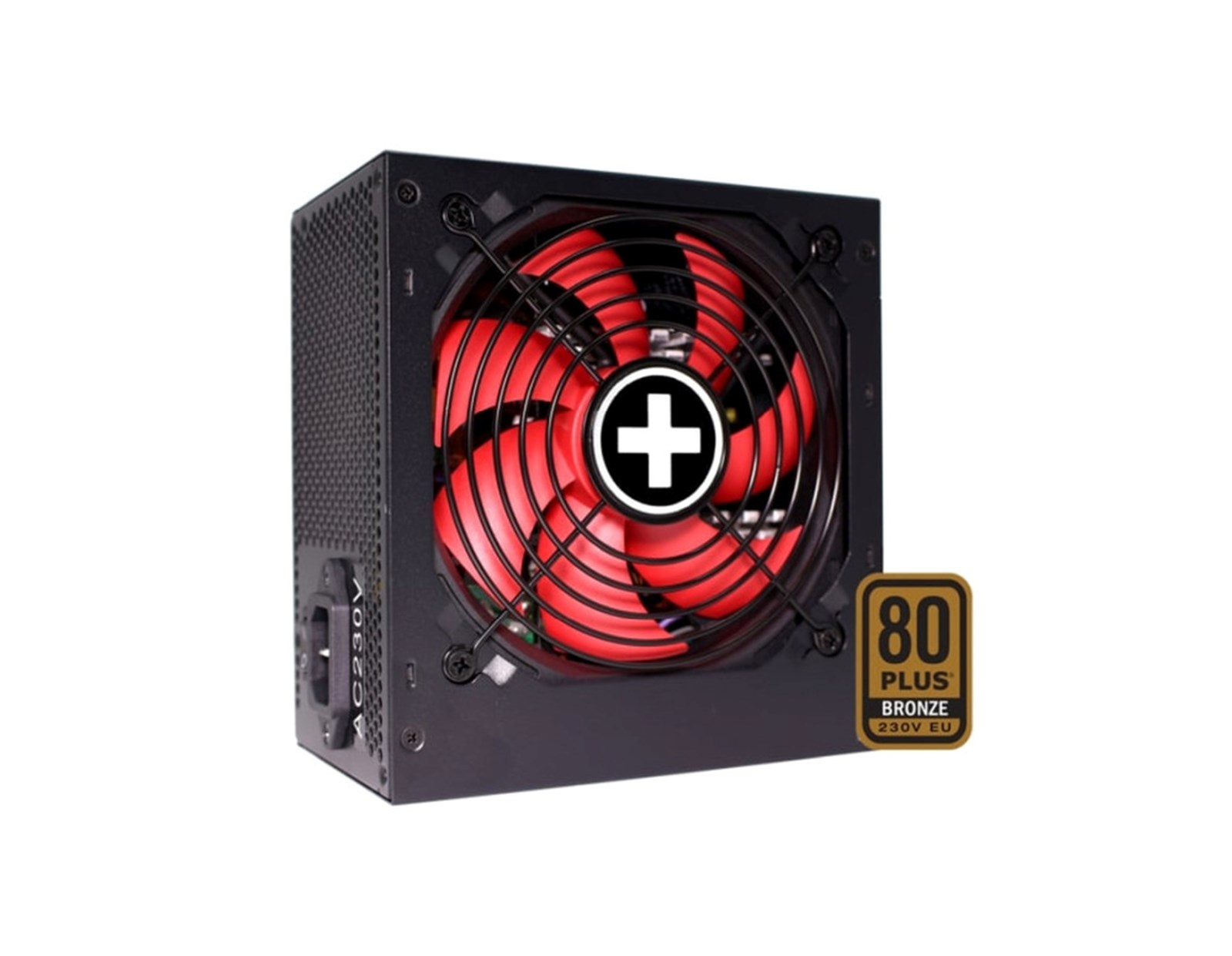

Xilence 850W Gaming, ATX 2.52 80+ BRONZE, aktivan PFC, 2×PCIe, 8×SATA, 20+4-pina, 120mm ventilator, crno

- The new successful Gaming Bronze series combines high performance with a low noise level and high effciency. The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming. Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past. Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case.

Features
- Extremely silent cooling: large 120mm fan
- Excellent air flow design for a better heat dissipation
- Full safety design:

• OVP (Over Voltage Protection)

• UVP (Under Voltage Protection)

• SCP (Short Circuit Protection)

• OPP (Over Power Protection)
- Low stand-by consumption
- High energy efficiency: 80+ BRONZE certified (complies with ErP2014 norm)
- Active-PFC

Technical data
General
- Peak Power (W): 850
- Form factor ATX 12V: Version 2.4
- Voltage (Vac): 200 - 240
- Model: Gaming
XP850R10
- Frequency (Hz): 50
- Input current (A): 10
- PFC: Active

Output
+3.3V (A): 20
+5V (A): 20
+12V1 (A): 70.8
-12V (A): 0.3
+5Vsb (A): 3.0
- Max. combined power 12V (W): 850
- Max. combined power 3.3V + 5V (W): 100
+12V2 (A): Yes

Fan / Cooling technology
- Bearing technology: Hydro Bearing
- Fan size (mm): 120

Protection
- OCP (over current protection): Yes
- OVP (over voltage protection): Yes
- UVP (under voltage protection): No
- SCP (short circuit protection): No
- OTP (over temperature protection): No
- OPP (over power protection): Yes

Eco / Efficiency
- 80 PLUS certification: 80+ Bronze
- Efficiency (%) at 230V, 20% load >85%
- Efficiency (%) at 230V, 50% load >88%
- Efficiency (%) at 230V, 100% load >85%

Environmental directives
- ErP
- WEEE
- RoHS

Cable management / Connectors
- Modular cable management: No
- Cable length to mainboard (mm): 500
- Cable length to first connector (mm): 450
- Maximum cable length (mm): 750
- Sleeved cables: No
- No. of cables: 7
- ATX-Motherboard (20+4-pin): 1
- P4+4 (CPU): 2
- P8 (CPU): No
- PCI-E 6-pin (GPU): No
- PCI-E 6+2-pin (GPU): 3
- PATA 4-pin: 3
- SATA 15-pin (HDD, Drives): 8
- FDD (Floppy): No

Logistics data, RRP
- Range: Gaming
- Article number: XN240
- EAN code: 4044953502712
- Dimensions, package (L x W x H), (mm): 140 x 150 x 86mm
- Gross weight, package (kg): 1.98
- Pieces per packaging unit: 8
- Dimensions, shipping box (L x W x H), (mm): 580 x 440 x 265
- Gross weight, shipping box (kg): 16.50
