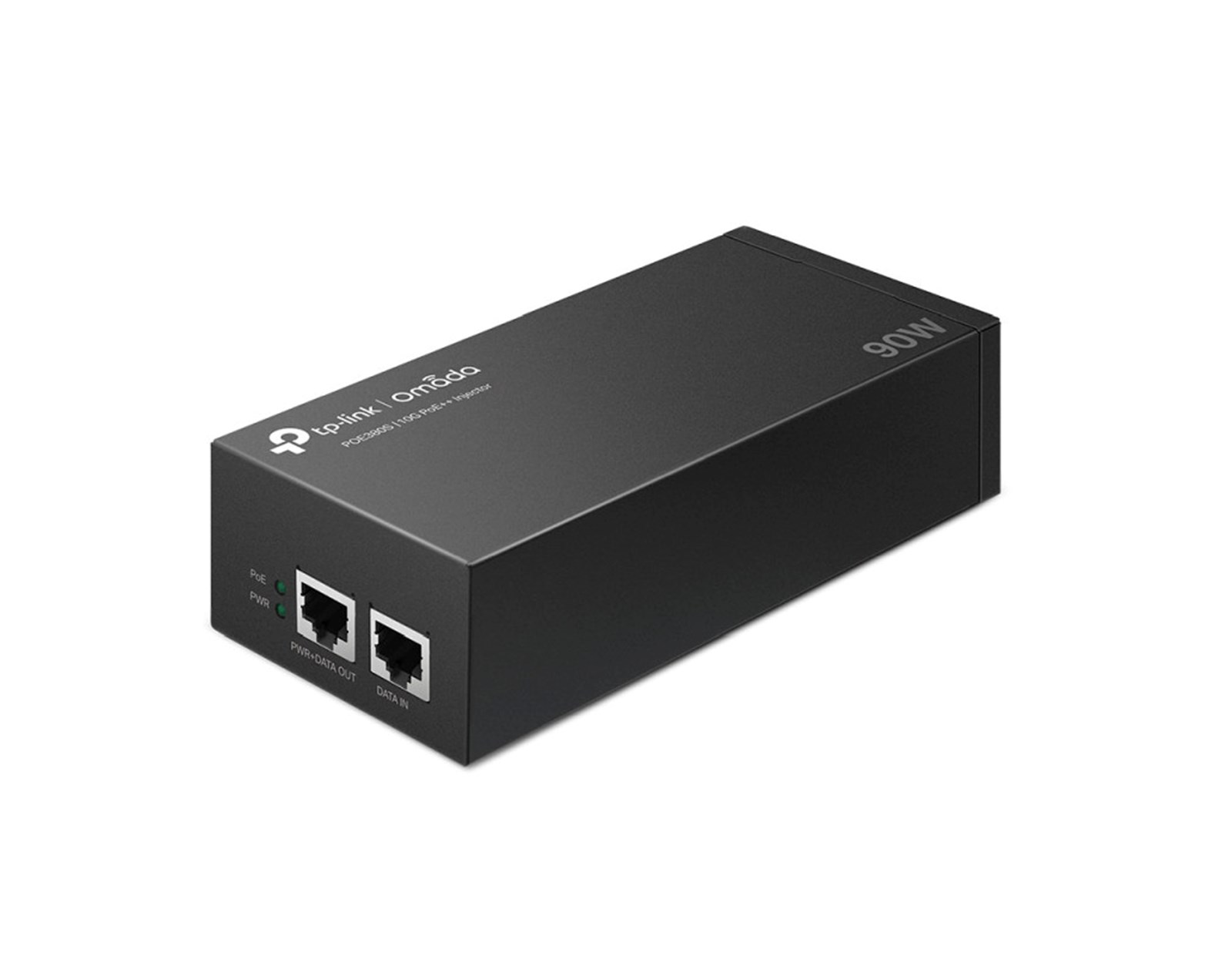

TP-Link POE380S Omada PoE++ Injector

- 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
- Integrated power supply
- Durable metal casing

Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
- Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100? STP (maximum 100 m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100? STP (maximum 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
- Ports

• 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port

• 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W)

• 1× AC socket
- Power Consumption

• Input: 100-240 V, 50/60 Hz, 1.6A

• Output: Auto-determine the necessary power requirements (max. 90 W)
- Basic Function

• Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD

• Auto-determine the necessary power requirements

• Wall-mounting and desktop installation

• Plug-and-Play
- LED: Power / PoE
- Dimensions ( W x D x H ): 6.1*2.8*1.7 in (155*70*42 mm)

OTHERS
- Certification: FCC, CE, RoHS
- Package Contents

• POE380S

• Power Cord

• Installation Guide
- Environment

• Operating Temperature: 0°C to 45°C (32°F to 113°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

• Operating Humidity: 10% to 90%RH non-condensing

• Storage Humidity: 5% to 90%RH non-condensing
