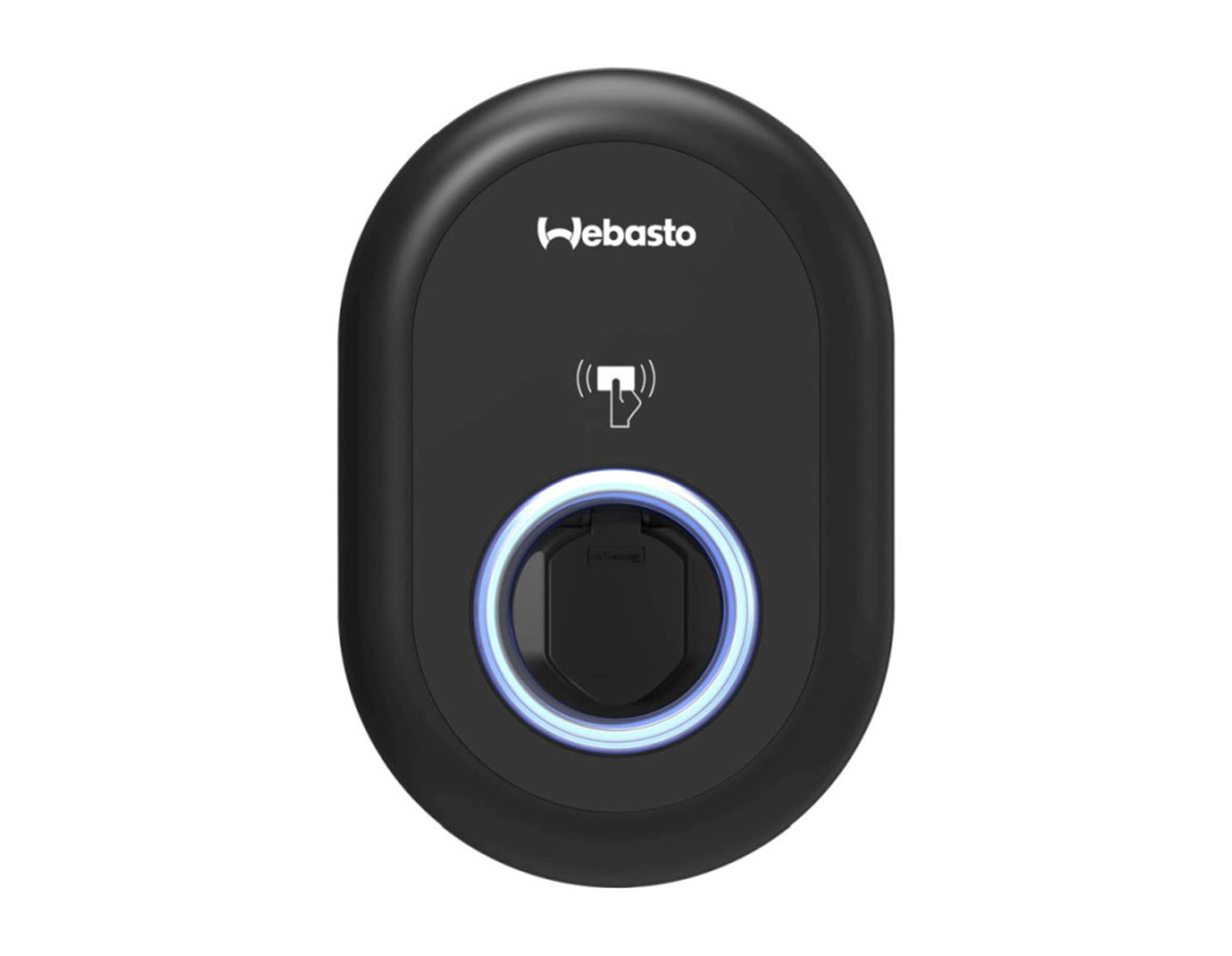

Webasto (5112415A) SOD Unite MID 4G AC 22 kW

Scalable charging capacity up to 22 kW

• Charging socket (type 2) for charging cable

• Digital management and remote control with

Webasto ChargeConnect (access via portal and app)

• Always online thanks to 24/7 real-time transmission of the wallbox data to Webasto ChargeConnect

• Authentication using RFID technology or

Webasto ChargeConnect App

• Interface for Energy Management System (EMS) integration via Modbus TCP1)

• Integrated local dynamic load management2) for up to 32 charging points Integrated MID-compliant meter allows billing and refund of charging processes?
• Meter window for easy reading of energy meter values

• Robust, high-quality housing meeting the Webasto quality and safety standards

• Cost savings at installation due to DC residual current protection

• Secured network stability by network operator using a ripple control receiver

• User friendly configuration using an integrated configuration hotspot and Webasto Charger Setup App or configuration interface for installers?

• Cellular connectivity ready on board via micro SIM card3)

Specifications
- Authorization

• Application

• Wi-Fi

• RFID
- Charging plug: Type 2
- Charging current: 32
- Charging power: 22 kW
- Nominal voltage: 230 V 400 V
- Type of protection:

• IP54

• IK10
- Color:Black
- Width: 315 mm
- Height: 460 mm
- Depth: 135 mm
- Weight: 5 kg
- Number of connections: 1
- Number of phases: 1-phase and 3-phase
- Nominal current: 32
- Max. temperature: +55 °C
- Min. temperature: -35 °C
- Product type: Wallbox
