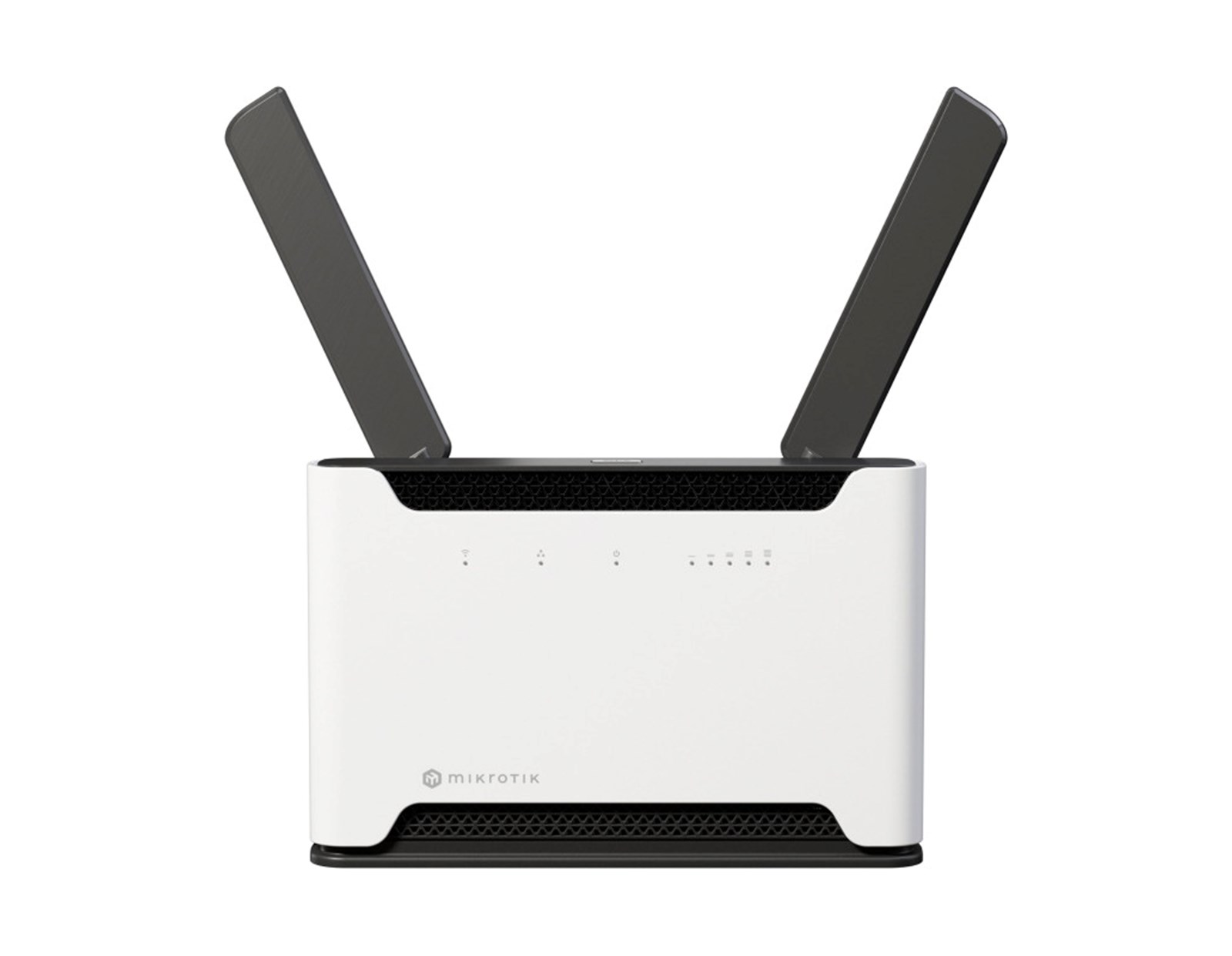

Mikrotik Chateau PRO ax kit, 2208 MHz CPU, 1GB RAM, 5×G-LAN, 1xUSB 3.0, Wi-Fi 6, 2.4Ghz/5Ghz, IEEE 802.11 b/g/n/ax, RouterOS L4

- A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.

- Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

- With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

- Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.

Specifications
- Product code: H53UiG-5HaxQ2HaxQ
- Architecture: ARM 64bit
- CPU: IPQ-8072A
- CPU core count: 4
- CPU nominal frequency: 2208 MHz
- Switch chip model: IPQ-8072
- RouterOS license: 6
- Operating System: RouterOS v7
- Size of RAM: 1 GB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C

Wireless capabilities
- Wireless 2.4 GHz Max data rate: 1148 Mbit/s
- Wireless 2.4 GHz number of chains: 4
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz: 5
- Wireless 2.4 GHz chip model: QCN-5024
- Wireless 2.4 GHz generation: Wi-Fi 6
- Wireless 5 GHz Max data rate: 2400 Mbit/s
- Wireless 5 GHz number of chains: 4
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz: 6
- Wireless 5 GHz chip model: QCN-5054
- Wireless 5 GHz generation: Wi-Fi 6
- WiFi speed: AX3600

Ethernet
- 10/100/1000 Ethernet ports: 5
- Number of 1G Ethernet ports with PoE-out: 1

Peripherals
- Number of USB ports: 1
- USB Power Reset. Yes
- USB slot type: USB 3.0 type A
- Max USB current (A): 1.5

Powering
- Number of DC inputs: 1 (DC jack)
- DC jack input Voltage: 18-57 V
- Max power consumption: 55 W
- Max power consumption without attachments: 18 W
- Cooling type. Passive

PoE-out
- PoE-out ports: Ether5
- PoE out: Passive PoE up to 57V
- Max out per port output (input 18-30 V): 600 mA
- M ax out per port output (input 30-57 V): 500 mA
- Max total out (A): 0.600 A
- Total output current: 0.600
- Total output power: 22.8

Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
- IP: 20

Other
- CPU temperature monitor: Yes
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Mode button: Yes
