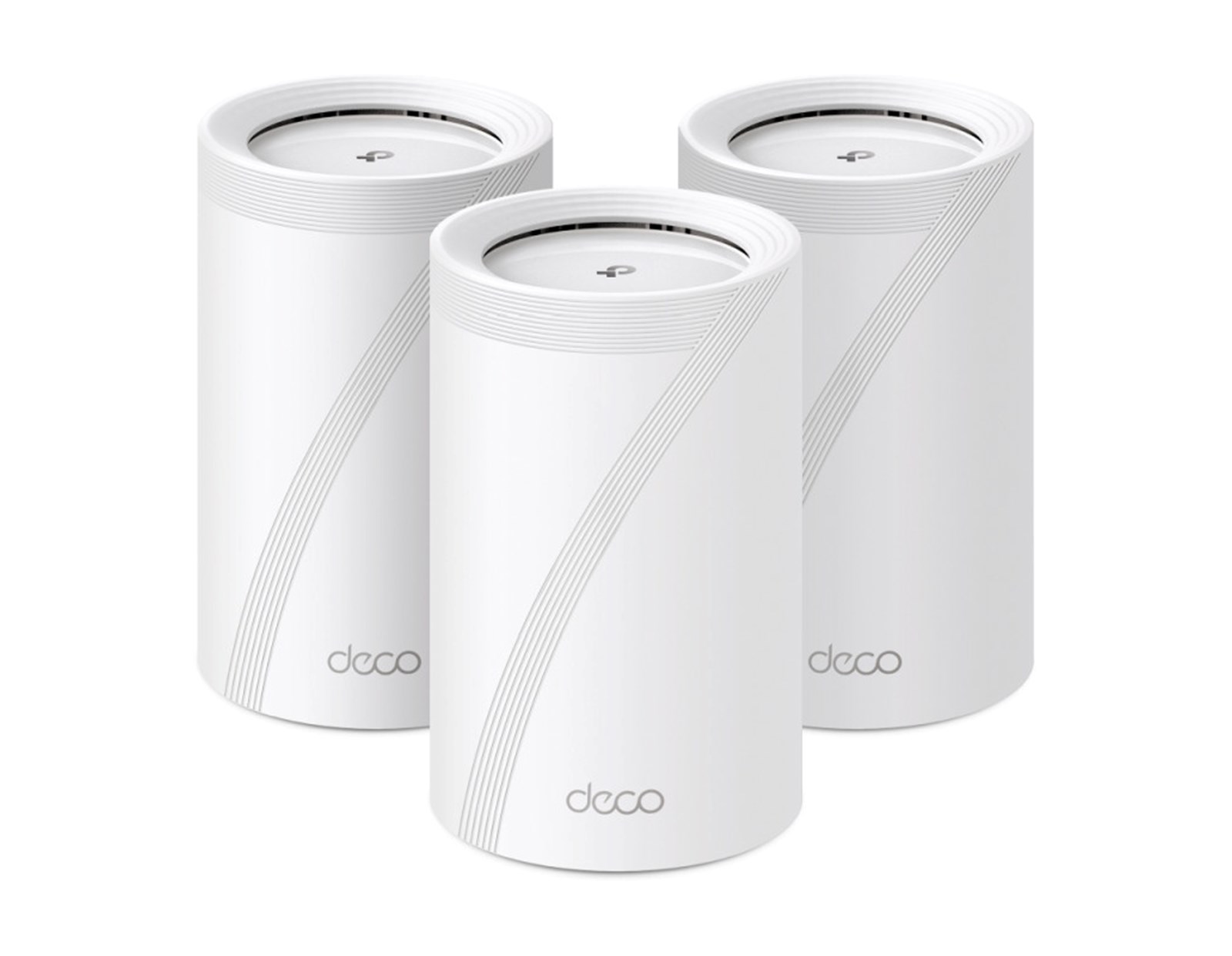

TP-Link BE9300 Whole Home Mesh Wi-Fi 7 System (Tri-Band)

9214 Mbps Tri-Band WiFi
- 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†

2.5 Gbps Wired Connections
- 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.§

Wireless and Wired Combined Backhaul
- Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.

Multi-Link Operation (MLO)
- Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.?

320 MHz Channels
- Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.?

Works on the 6 GHz Band
- Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.?

TP-Link HomeShield
- Provides comprehensive network protection, robust parental controls, and real-time IoT security.*

Universal Compatibility
- Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.

Specifications
WIRELESS
- Standards: Wi-Fi 7

• IEEE 802.11be/ax 6 GHz

• IEEE 802.11be/ax/ac/n/a 5 GHz

• IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: BE9300

• 6 GHz: 5760 Mbps (802.11be)

• 5 GHz: 2880 Mbps (802.11be)

• 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range: Broader Whole Home Coverage

• TP-Link Mesh Technology

• Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

• AI-Driven Mesh: Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

• 4× High-Performance Antennas (Internal); Multiple antennas form a signal-boosting array to cover more directions and large areas

• Tri-Band: A newly-opened 6 GHz band brings more bandwidth and faster speeds
- WiFi Capacity: Very High

• Tri-Band: Distribute devices to different bands for optimal performance

• 2×2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients

• OFDMA: Simultaneously communicates with multiple WiFi 7 clients

• 6 Streams: More than enough bandwidth for connected devices
- Working Modes

• Router Mode

• Access Point Mode
- Advanced Functions

• Multi-Link Operation (MLO)

• 320 MHz Channel

• 4K-QAM

• Multi-RUs

• Works with Alexa and Google Assistant

SECURITY
- Network Security

• SPI Firewall: Access Control

• HomeShield Security

• Real-Time IoT Protection

• Malicious Site Blocker

• Intrusion Prevention System

• DDoS Attack Prevention

• Home Network Scanner
- Guest Network

• 1× 6 GHz Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

• Effective Time: Bandwidth Control
- VPN Server

• OpenVPN Server

• PPTP VPN Server

• L2TP/IPSec VPN Server
- VPN Client

• OpenVPN Client

• PPTP VPN Client

• L2TP/IPSec VPN Client
- WiFi Encryption

• WPA-Personal

• WPA2-Personal

• WPA3-Personal

HARDWARE
- Ethernet Ports: 4× 2.5 Gbps
*Per Deco Unit: Supports WAN/LAN auto-sensing
- USB Support:

• 1× USB 3.0 Port

• FTP Server

• Media Server

• Apple Time Machine

• Samba Server
- Buttons

• 1× Reset Button

• 1× WPS

SOFTWARE
- Advanced Features

• Reboot Schedule

• Tapo/Kasa Onboarding

• IoT network & Device Isolation

• Static Routing Function

• Node/Band Connection Preference
- Protocols

• IPv4

• IPv6
- Service Kits: HomeShield
- Parental Controls

• HomeShield Parental Controls

• Youtube Restriction

• SafeSearch

• Custom Profiles

• Professional Content Filter Library

• Family Time

• Bedtime

• Off Time

• Time Rewards

• Family Online Time Ranking

• Pause the Internet

• Weekly and Monthly Reports
- WAN Types

• Dynamic IP

• Static IP

• PPPoE

• PPTP

• L2TP
- Quality of Service

• HomeShield QoS

• QoS by Device
- Cloud Service

• OTA Firmware Upgrade

• TP-Link ID

• DDNS
- NAT Forwarding

• Port Forwarding

• UPnP
- IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN
- DHCP

• Address Reservation

• DHCP Client List

• Server
- DDNS: TP-Link
- Management: Deco App

PHYSICAL
- Dimensions (W×D×H): 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm)
- Package Contents

• Deco BE65 (3-pack)

• 3 Deco BE65 units

• 1 RJ45 Ethernet cable

• 3 Power adapters

• Quick Installation Guide

OTHERS
- Certifications: CE, FCC, RoHS
- Environment: Operating Temperature: 0°C~40°C (32 °F~104 °F)
- Storage Temperature: -40°C~60°C (-40 °F~140 °F)
- Operating Humidity: 10%~90% RH
- Storage Humidity: 5%~90% RH
