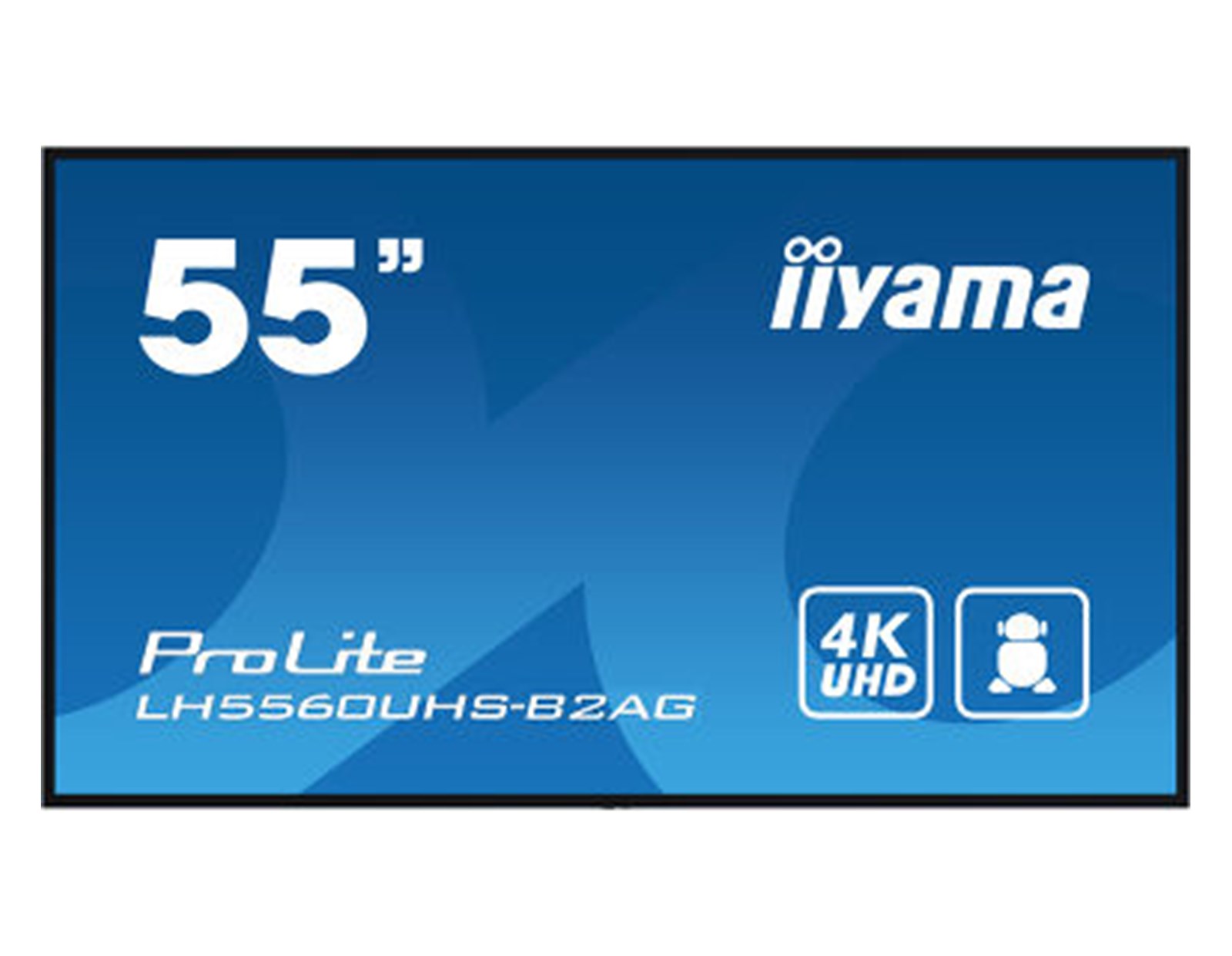

IIYAMA 55" LH5560UHS-B2AG 4K UDH (3840x2160) VA Signage 24/7, 500 cd/m2, 4000:1, Android OS, E-Share, iiSignage2

55" 4K UHD professional digital signage display with advanced control and connectivity options

Elevate your visual communication with the LH5560UHS-B2AG and unlock the new possibilities for your business. This 500cd/m2 high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage2 (Content Management Software), Signal FailOver, and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze.

This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH5560UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.

DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 54.6", 139cm
Panel VA, Anti-Glare Coated Glass, Hard Coating (3H), haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m2
Static contrast 4000:1
Response time (GTG) 6.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 87%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 28.8"
Bezel width (sides, top, bottom) 13.3mm, 13.3mm, 15.3mm
Pixel pitch 0.315mm
Bezel colour and finish black, matte
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x3 (2.0, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1
RJ45 (LAN) x1
Audio output Mini jack x1 (3.5mm)
Speakers 2 x 10W
HDCP 1.4 & 2.2
USB ports x2 (2.0)
FEATURES
Integrated software Android 11 OS, FailOver, iiSignage2, EShare
WiFi yes (Built-in, 802.11ac)
Hardware CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB
Extra Wall mounting kit included (VESA 300x400mm)
Max. non-stop operating time 24/7
Anti image retention yes
Media playback yes
Housing (bezel) metal (front)
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power button, Power Indicator, Remote Sensor
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 300 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides quick start guide, safety guide
Other Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Remote control yes (batteries included)
POWER MANAGEMENT
Energy Star 8.0 (POn at 230V) 56.2W
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 55W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead, Lead monoxide, Diboron trioxide
DIMENSIONS / WEIGHT
Product dimensions W x H x D 1239.7 x 712.5 x 38.6mm
Box dimensions W x H x D 1390 x 850 x 136mm
Weight (without box) 17.6kg
Weight (with box) 22.9kg
EAN code 4948570125685
