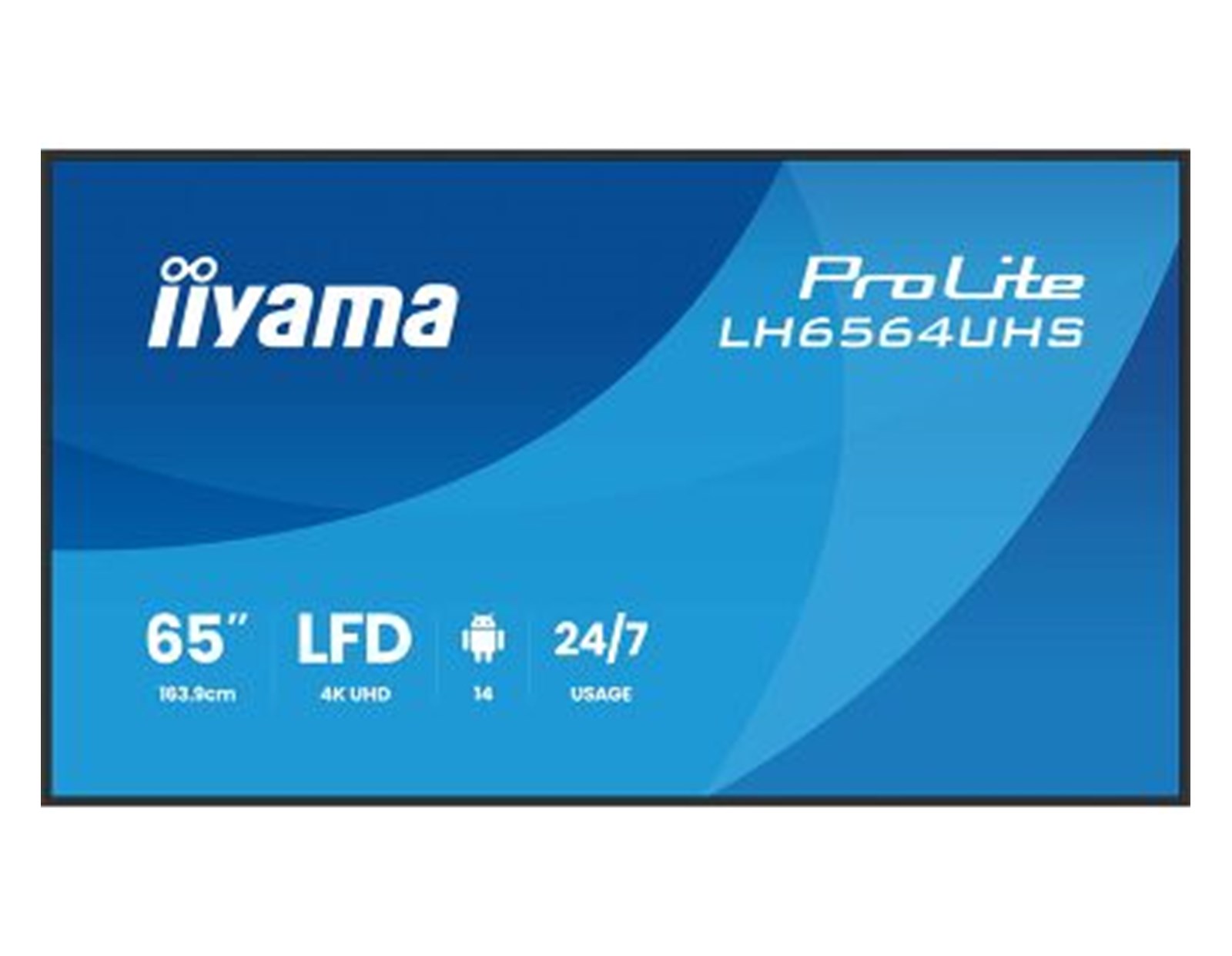

IIYAMA 65" LH6564UHS-B1AG 4K UHD (3840x2160) VA Signage 24/7, 500 cd/m2, 5000:1, Android OS 14, iiShare, iiControl, iiSignage2

65" 4K UHD Most powerful professional digital signage display with advanced control and connectivity options

The ProLite LH6564UHS-B1AG is a 65" 4K UHD digital signage powerhouse designed to elevate your business's visual communication. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS) and iiShare (Wireless Presentation), managing content is effortless. It's WiFi enabled for remote content delivery and offers reliable 24/7 operation. Perfect for retail, corporate, hospitality, or restaurant settings, this display ensures a captivating audience experience with its versatile design and high brightness..

DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 65", 164cm
Panel VA, Anti-Glare coated glass, matte finish, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m2
Static contrast 5000:1
Response time (GTG) 6.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync 57 - 62kHz
Viewable area W x H 1428.5 x 803.5mm, 56.2 x 31.6"
Bezel width (sides, top, bottom) 12.8mm, 12.8mm, 12.8mm
Pixel pitch 0.372mm
Bezel colour and finish black, matte
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x2 (v.2.0, max. 3840x2160 @60Hz)
USB-C x1 (DP Alt, 15W PD)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Audio output Mini jack x1 (3.5mm)
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm)
IR loop through x1 (3.5mm)
HDCP v.1.4 & 2.0
USB ports x2 (v.2.0)
FEATURES
Integrated software Android 14 OS, iiSignage2, iiControl, iiShare, EShare, FailOver, TeamViewer, PDF & Media Player, iiBrowser, File manager
WiFi yes (Built-in, 2.4G/ 5G)
Hardware CPU: A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB
Extra Wall mounting kit included (VESA 500x500mm)
Max. non-stop operating time 24/7
Anti image retention yes
Media playback yes
Housing (bezel) plastic
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power Indicator, Power button, Remote Sensor
User controls network (status, Wifi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD setting (OSD timeout, OSD H-Position, OSD V-position, OSD transparency, information OSD), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, power saving, panel saving, monitor info, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen share, Miracast standby, log export)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 500 x 500mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides quick start guide, safety guide
Other Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Remote control yes (batteries included)
POWER MANAGEMENT
Energy Star 8.0 (POn at 230V) 104.5W
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 184W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (UKCA, RoHS2.0, PFOS)
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead, Lead monoxide
DIMENSIONS / WEIGHT
Product dimensions W x H x D 1457.7 x 832.4 x 68.8mm
Box dimensions W x H x D 1640 x 990 x 164mm
Weight (without box) 17.7kg
Weight (with box) 27.5kg
EAN code 4948570125326
