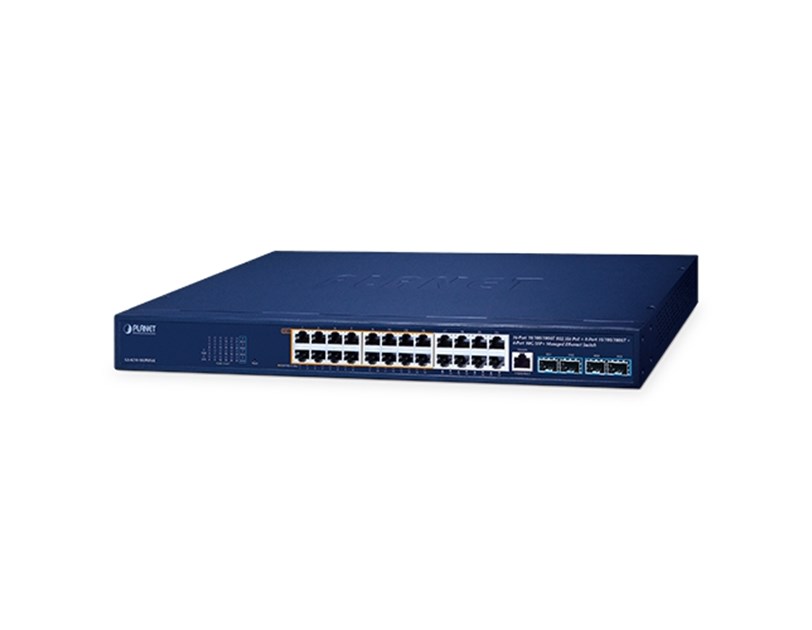

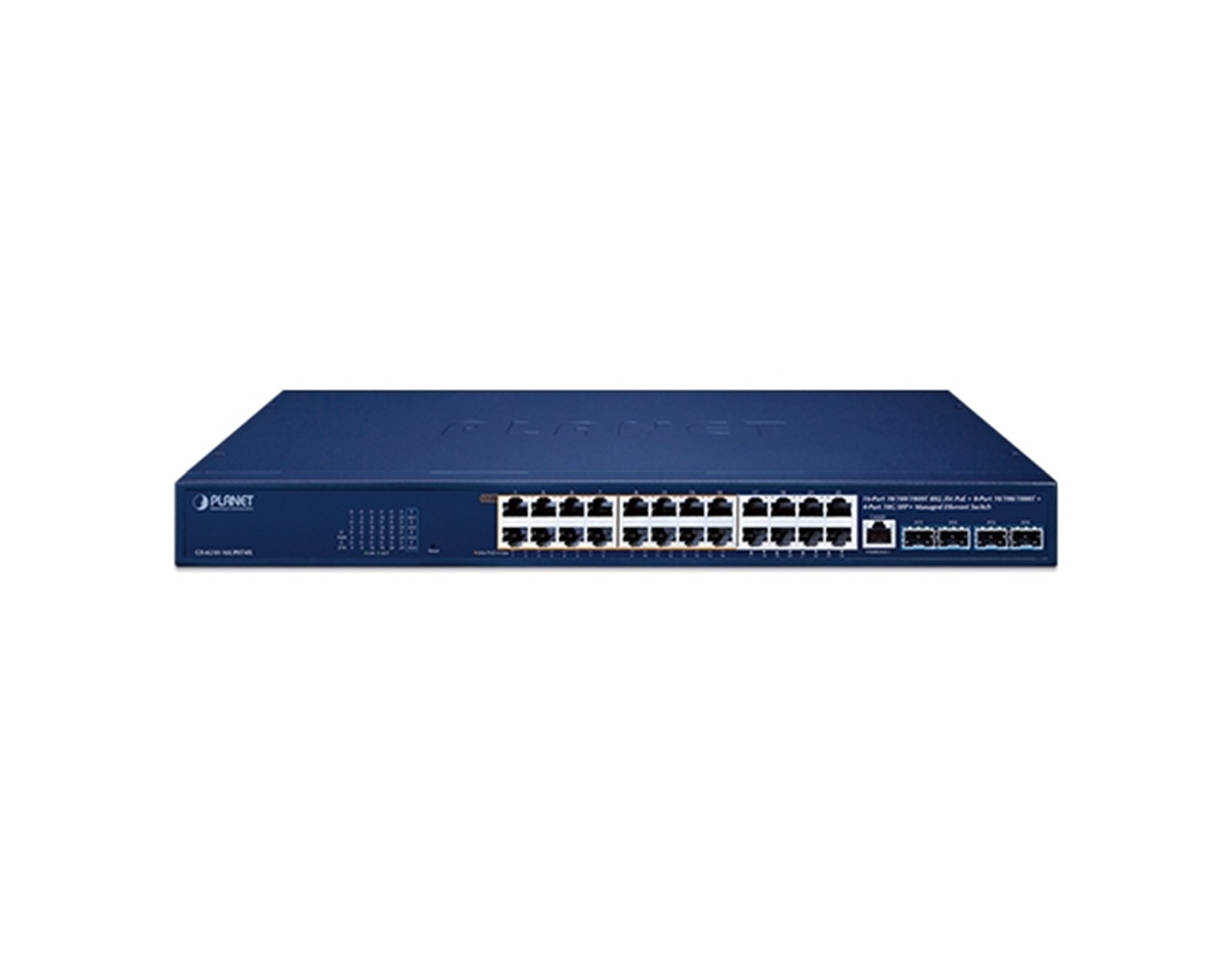

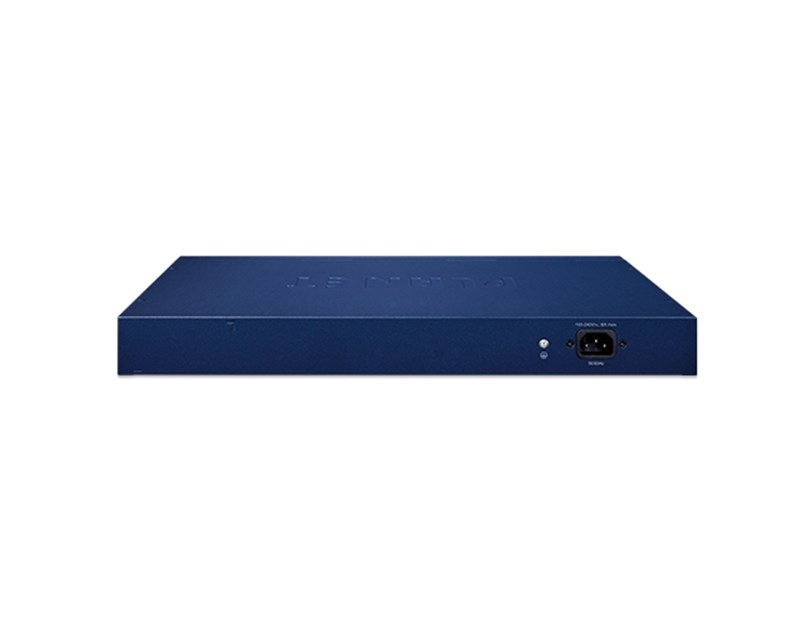

PLANET IPv6/IPv4, 16-Port 10/100/1000T 95W 802.3bt PoE + 8-Port 10/100/1000T + 4-Port 10G SFP+ Managed Switch, 420W PoE budget, PoE PD, 250m Extend mode, ACL, CloudNMS, MQTT

Key Features:

Physical Port
- 16 10/100/1000BASE-T ports with 95W 802.3bt PoE++ injector function (Ports 1 to 16)
- 8 10/100/1000BASE-T ports (Ports 17 to 24)
- 4 10GBASE-SR/LR SFP+ slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG4)
- RJ45 to DB9 console interface for switch basic management and setup

Switching
- Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 16K MAC address table size
- 12K jumbo frame
- Automatic address learning and address aging

PoE
- Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
- 16 ports supporting IEEE 802.3bt PoE++ with each offering up to 95 watts (ports 1-16)
- Total PoE power budget of 420 watts
- Automatic detection of powered devices (PD)
- Built-in circuit protection to prevent power interference between ports
- Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
- Advanced PoE management capabilities: Total PoE power budget control, Per port PoE function enable/disable, PoE port power feeding priority, Per PoE port power limitation, Detection of PD classification, Intelligent PoE features, PD alive check, PoE schedule, Scheduled power recycling

Layer 2 Features
- Supports VLAN
- Supports Spanning Tree Protocol (STP), RSTP, MSTP, STP BPDU Guard, BPDU Filtering and BPDU Forwarding
- Supports Link Aggregation
- Supports port mirror (many-to-1)
- Loop protection to avoid broadcast loops
- Supports ERPS (Ethernet Ring Protection Switching)
- Link Layer Discovery Protocol (LLDP)

Multicast
- Supports IPv4 IGMP snooping v2 and v3
- Supports IPv6 MLD snooping v1, v2
- IGMP querier mode support
- IGMP snooping port filtering
- MLD snooping port filtering
