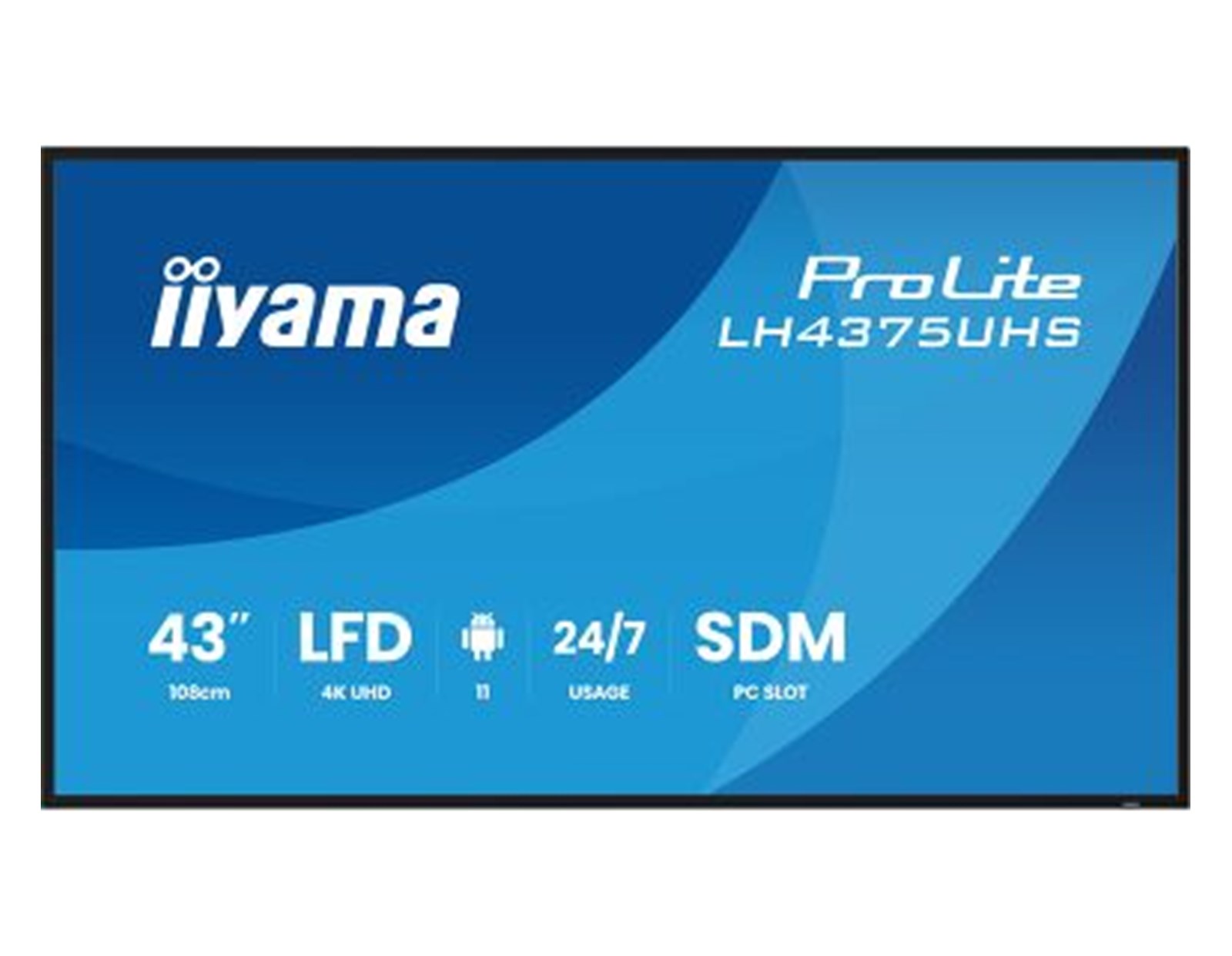

IIYAMA 43" LH4375UHS-B2AG 4K UHD (3840x2160) IPS Signage 24/7, 500 cd/m2, 1200:1, Android OS, E-Share, iiSignage2

43" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH4375UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it.

The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. Now the display is also offering DP-Out from any input.

With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 42.5", 108cm
Panel IPS, Anti-Glare Coated Glass, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m2
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 941 x 529mm, 37 x 20.8"
Bezel width (sides, top, bottom) 13.5mm, 15.5mm, 15.5mm
Pixel pitch 0.245mm
Bezel colour and finish black, matte
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x3 (2.0, max. 3840x2160 @60Hz, ARC on HDMI #3)
DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
IR x1 (3.5mm stereo mini)
Digital signal output DisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio output Mini jack x1 (3.5mm)
Speakers 2 x 10W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP 2.2
USB ports x2 (2.0)
FEATURES
Integrated software Android 11 OS, iiSignage2, iiControl, iiShare, EShare, FailOver
WiFi yes (Built-in, 802.11ac)
Hardware CPU: A311D2 Octa-core A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Extra Intel® SDM-S, micro SD card slot
Max. non-stop operating time 24/7
Anti image retention yes
Video wall / daisy chain Yes, from any input signal, (MST-output via DP-Out)
Media playback yes
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power (longpress for Quick Menu)
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor info, DP version, DP monitors, HDMI version, configuration 2 reset), advanced options (no signal image, motorized stand, IR control, power LED light, tiling, off timer, schedule, HDMI with One Wire, HDMI with One Wire power off, Signal FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced options reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 200 x 200mm
Mini PC mount VESA 75 x 75, VESA 100 x 100
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides quick start guide, safety guide
Other Stickers for screw holes, wire buckles
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 101W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead, Lead monoxide
DIMENSIONS / WEIGHT
Product dimensions W x H x D 968 x 557 x 54mm
Box dimensions W x H x D 1075 x 683 x 127mm
Weight (without box) 8.9kg
Weight (with box) 12.5kg
EAN code 4948570125234
