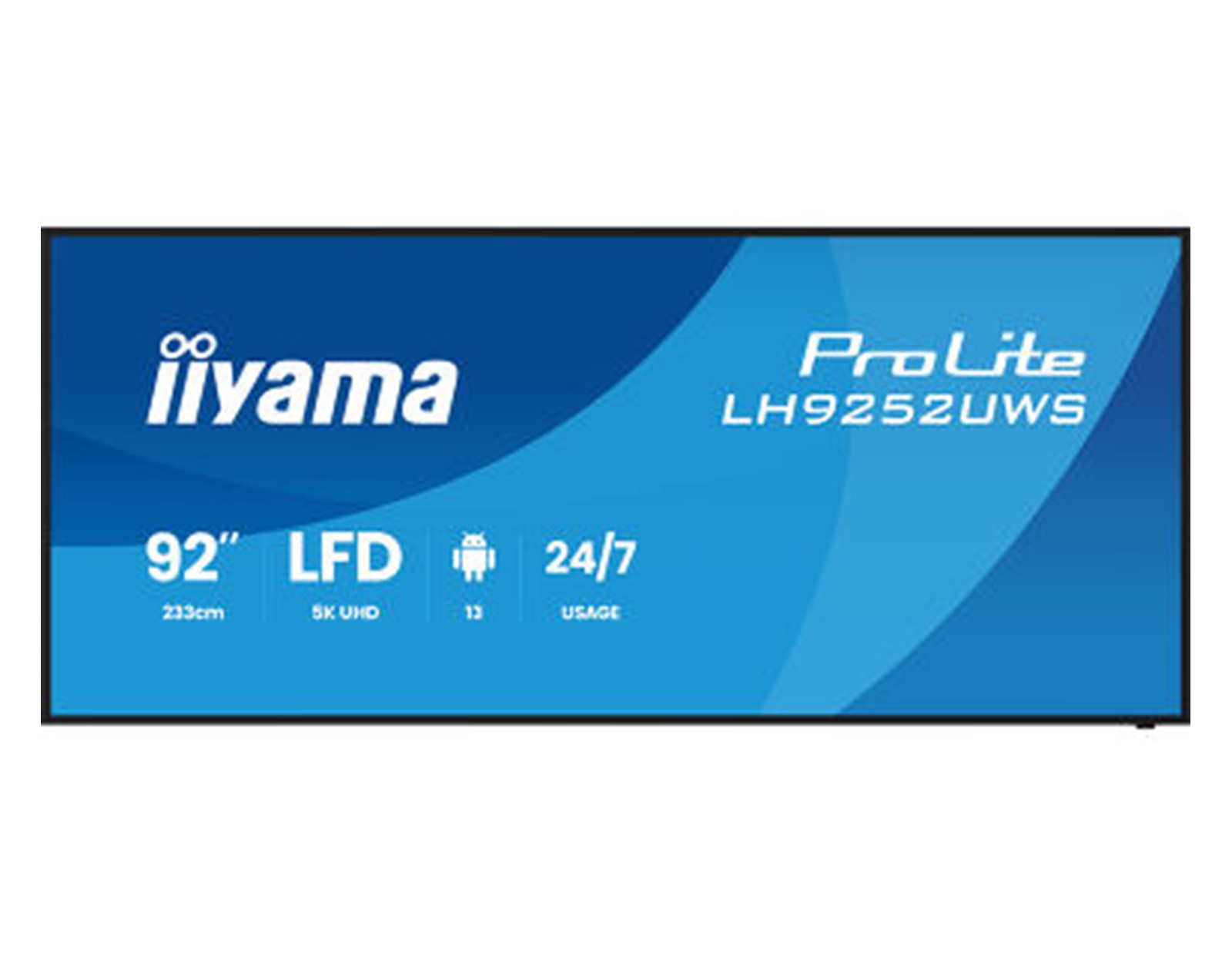

IIYAMA 92" LH9252UWS-B1AG 5K UWD (5120x2160) VA 21:9 Signage 24/7, 500 cd/m2, 5000:1, Android OS, iiyama DMS, iiyama Share, EShare

ProLite LH9252UWS-B1AG with 92" 5K collaboration display

The ProLite LH9252UWS-B1AG features an impressive 92" 5K UltraWide VA panel with USB-C connectivity, Android OS and integrated speakers with subwoofer, making it an ideal solution for collaborative workspaces, digital signage and immersive presentation environments.

DISPLAY CHARACTERISTICS
Diagonal 92", 233cm
Panel VA Panel, AG coated glass, matte finish, haze 25%
Native resolution 5120 x 2160 @60Hz (5K)
Aspect ratio 21:9
Panel brightness 500 cd/m2
Static contrast 5000:1
Dynamic contrast 5000:1
Response time (GTG) 6.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07B (8 bit + Hi-FRC)
Horizontal Sync 30 - 135kHz
Viewable area W x H 2141.952 x 903.636mm, 84.3 x 35.6"
Bezel width (sides, top, bottom) 14.9mm, 14.9mm, 14.9mm
Pixel pitch 0.13945 x 0.41835mm
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x1 (5120 x 2160 60Hz, HDMI 2/3/4 x3: 3840 x 2160 60Hz)
DisplayPort x1 (5120 x 2160 60Hz)
USB-C x1 (3840 x 2160 60Hz)
Audio input Mini jack x1 (3.5mm)
Monitor control input RS-232c x1
RJ45 (LAN) x2 (1000Mbps)
Digital signal output HDMI x1 (Max. resolution 3840 x 2160 @60Hz HDMI2,0 HDCP 1.4)
Audio output Mini jack x1 (3.5mm)
Speakers 2 x 20W (20W subwoofer)
Monitor control output OPS Slot x1 (Intel OPS 80pin)
USB ports x3 (1x Side Android only, 2x Side +2x top Public (can auto switch to current channel) USB 3.2 Gen1)
RJ45 (LAN) x2 ((IN/OUT) 1000Mbps)
USB HUB x1
FEATURES
Integrated software Android 13 OS, iiyama DMS, iiyama Share, EShare
WiFi yes (WiFi 6E + BT 5.2)
Hardware SOC: RK3588 Octo-core A76x4 + A55x4, GPU Mali G640 MP4, RAM: 8GB, ROM: 128 GB
Extra 1x Intel OPS 80pin
Kiosk mode yes
Max. non-stop operating time 24/7
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, CAT, FI, DA, ET, LV, LT, HU
Control buttons Power key (1key with On: LED Off: , Long push(power off (LED :Red) Turn off/on backlight(Short click) Standby modus (LED :Red Flashing fast)
User controls Wireless & Network(Ethernet, Wi-Fi, Hotspot, VPN, Share Network), Personal(Wallpaper), Input & Output(Sound Output Settings, Input Naming Settings, HDMI OUT Format, CEC), System(Date & Time, Language & Keyboard, Startup & Shutdown, Screen orientation, Pixel Shift, Storage, System Update, Advance Settings, Security, User Experience Improvement), About(Legal Information, Module Number, Android Version, Kernel Version, Build Number, Firmware Version, Serial Number)
Blue light reducer yes
Flicker free yes
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
VESA mounting 800 x 600mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
ACCESSORIES INCLUDED
Cables power (3m), HDMI (3m), DP (3m), RS-232c (3m)
Guides quick start guide, safety guide
Other Guides, cable management cover, remote control, cable ties (5 units), webcam bracket, wall mount bracket, wall mount bracket set.
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 201W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D 2182 x 943.8 x 85.2mm
Box dimensions W x H x D 2360 x 1072 x 225mm
Pallet volume 50pcs
Pallet dimensions W x H x D 2380 x 1140 x 120mm
Weight (without box) 44kg
Weight (with box) 63kg
EAN code 4948570128051
