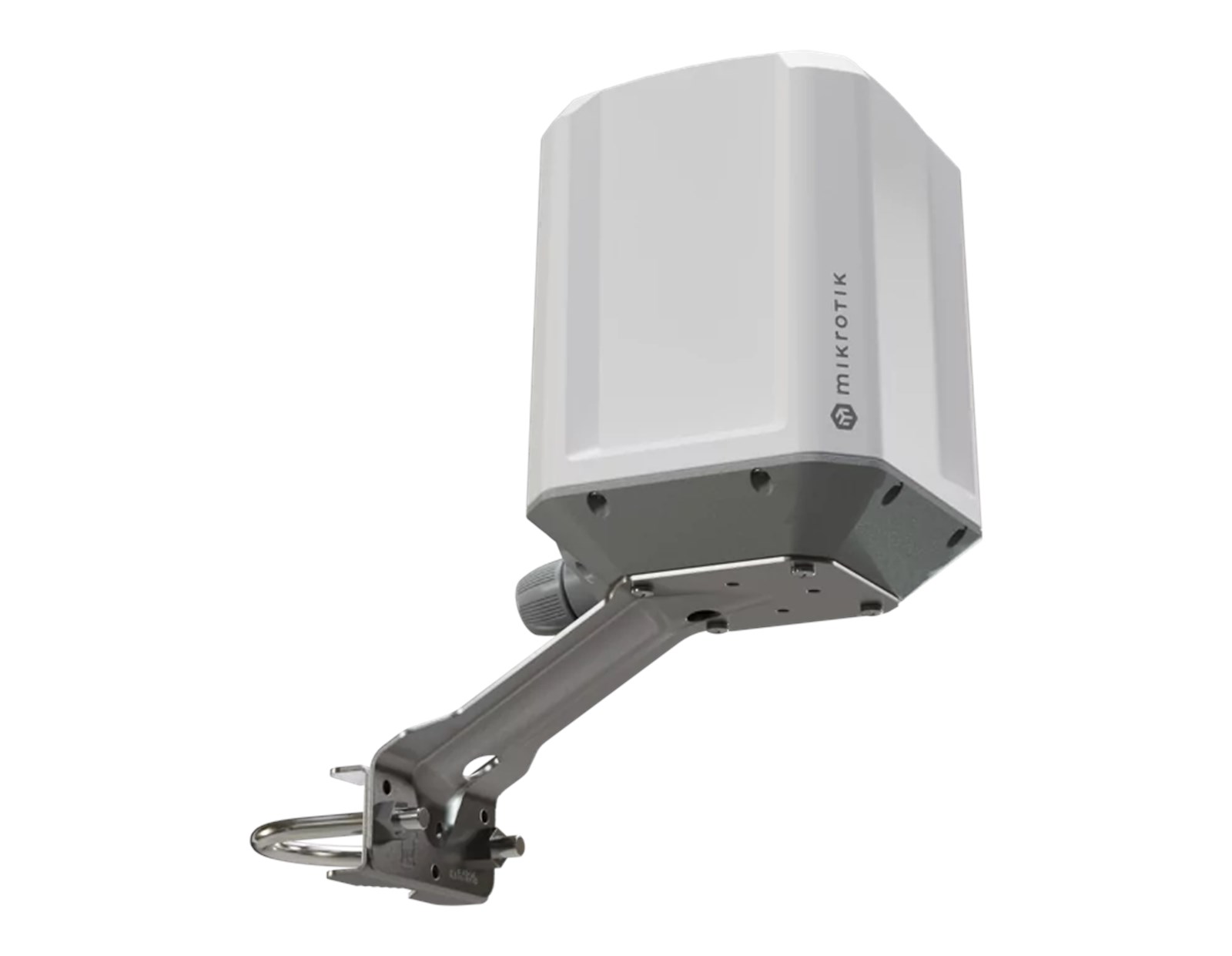

Mikrotik LAMP 5G R16, rugged outdoor 5G device, 1G Ethernet PoE-in Port, 1x10/100/1000 Ethernet port, IP67

A rugged outdoor 5G device that uses omnidirectional antennas and built-in eSIM support to automatically connect to the best available tower – no antenna alignment or physical SIM swaps required. IP67, maritime durability, GNSS, PoE-in.

Features:
- Product code: LAMPGM&RG520F-EU
- Architecture: ARM 64bit
- CPU: 88F3720
- CPU core count: 2
- CPU nominal frequency: 800 MHz
- CPU Threads count: 2
- RouterOS license: 3
- Operating System: RouterOS v7
- Size of RAM: 512 MB
- Storage size: 32 MB
- Storage type: FLASH
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C

Powering
- Number of DC inputs: 1 (PoE-IN)
- Max power consumption: 10 W
- Cooling type: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 12-56 V

Mobile
- 3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
- 3G bands: 1 (2100 MHz), 5 (850 MHz), 8 (900 MHz)
- LTE Category: 20 (DL: 2.0 Gbps; UL: 200 Mbps)
- LTE FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz), 32 (1500 MHz)
- LTE TDD bands:, 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 42 (3500 MHz), 43 (3700 MHz)
- 5G NSA FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
- 5G NSA TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)
- 5G SA FDD bands: 1 (2100 MHz), 3 (1800 MHz), 5 (850 MHz), 7 (2600 MHz), 8 (900 MHz), 20 (800 MHz), 28 (700 MHz)
- 5G SA TDD bands: 38 (2600 MHz), 40 (2300 MHz), 41 (2500 MHz), 75 (1500 MHz), 76 (1500 MHz), 77 (3700 MHz), 78 (3500 MHz)

Ethernet
- 10/100/1000 Ethernet ports: 1
- Number of 1G Ethernet ports with Reverse PoE (PoE-in): 1

Peripherals
- Number of SIM slots: 1 Modem (Micro SIM)
- Number of M.2 slots: 1

Other
- eSim: Yes

Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: 67

Package content
- Device
- 24V 0.5A power adapter
- Gigabit PoE injector
- LAMP mount

*The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use.
*The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
