- NOVO

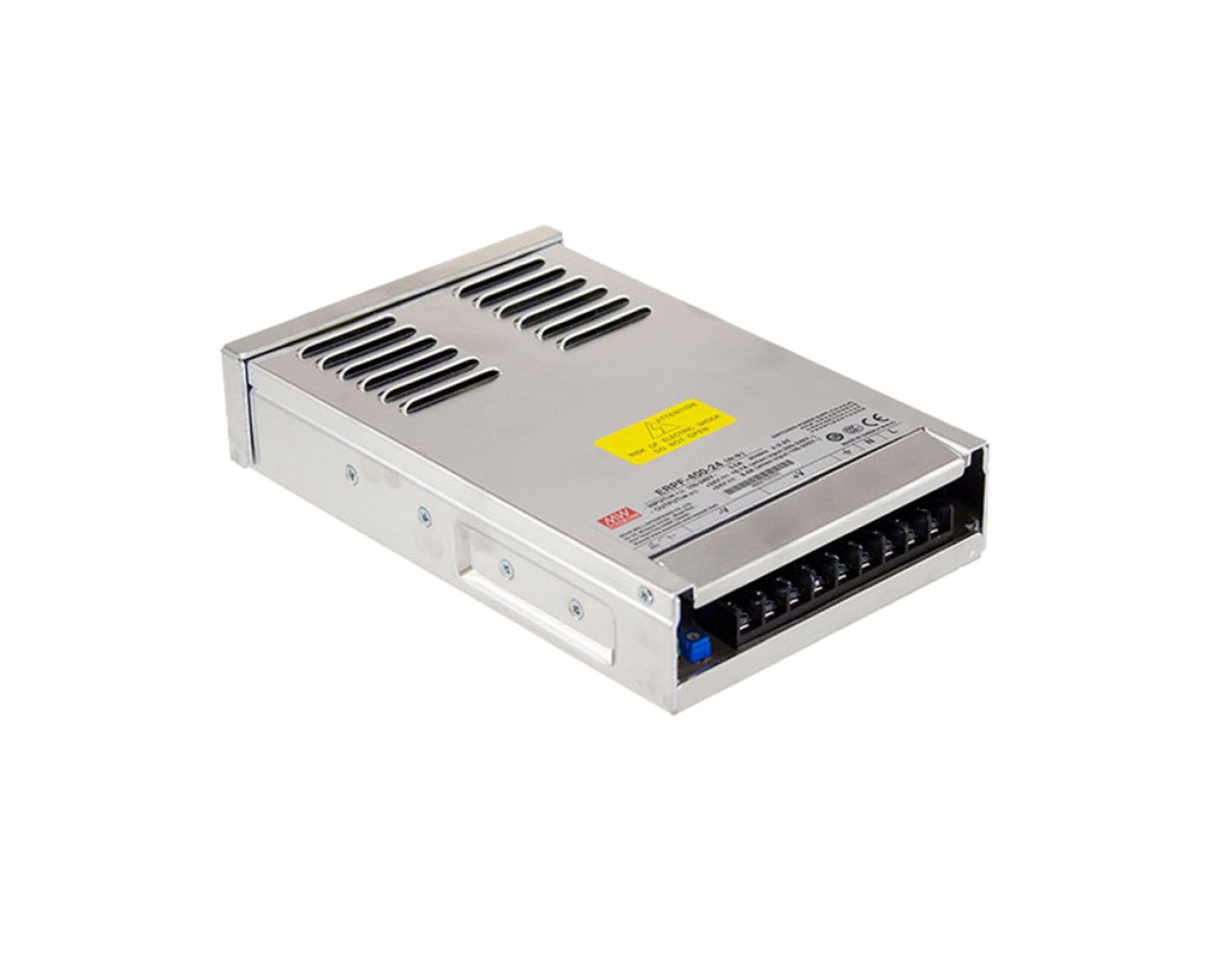

MEAN WELL napajanje ERPF-400-12
49,05 €
- Šifra proizvoda
- 47259
- Kataloški broj
- ERPF-400-12
- Jamstvo
- 36 mjeseci
- Raspoloživost
-
raspoloživo
Output:
DC VOLTAGE: 12V
RATED CURRENT: 30A
RATED POWER:360W
VOLTAGE ADJ. RANGE:10.8 ~ 13.2V
VOLTAGE TOLERANCE:±1.0%
Input:
VOLTAGE RANGE:90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE:47 ~ 63Hz
POWER FACTOR (Typ.):PF?0.95/230VAC, PF?0.98/115VAC
EFFICIENCY:89%
AC CURRENT :2.5A/230VAC 3A/115VAC
INRUSH CURRENT:cold start 45A/115VAC, 90A/230VAC
ENVIRONMENT:
WORKING TEMP:-30 ~ +60?
WORKING HUMIDITY:20 ~ 90% RH non-condensing
VIBRATION:10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axe
DIMENSION:220.4*130*48mm (L*W*H)
WEIGHT: 1,1kg
WARRANTY: 3 years
DC VOLTAGE: 12V
RATED CURRENT: 30A
RATED POWER:360W
VOLTAGE ADJ. RANGE:10.8 ~ 13.2V
VOLTAGE TOLERANCE:±1.0%
Input:
VOLTAGE RANGE:90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE:47 ~ 63Hz
POWER FACTOR (Typ.):PF?0.95/230VAC, PF?0.98/115VAC
EFFICIENCY:89%
AC CURRENT :2.5A/230VAC 3A/115VAC
INRUSH CURRENT:cold start 45A/115VAC, 90A/230VAC
ENVIRONMENT:
WORKING TEMP:-30 ~ +60?
WORKING HUMIDITY:20 ~ 90% RH non-condensing
VIBRATION:10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axe
DIMENSION:220.4*130*48mm (L*W*H)
WEIGHT: 1,1kg
WARRANTY: 3 years
- grupa
- LED RASVJETA
- grupa
- NAPAJANJA 12V, IP20
- grupa
- MEAN WELL NAPAJANJA
- brand
- MEAN WELL
