- NOVO

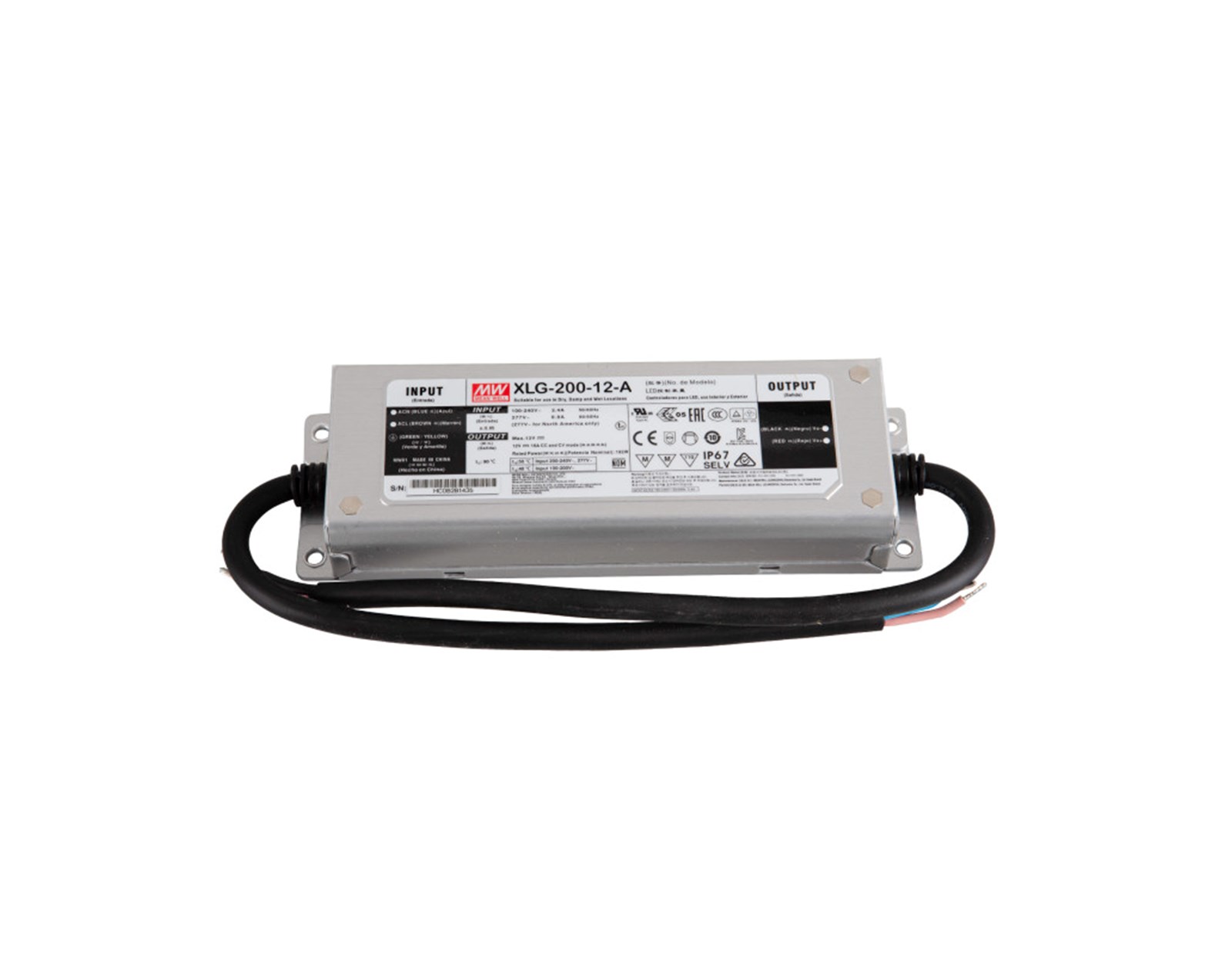

MEAN WELL napajanje XLG-200-12-A
53,55 €
- Šifra proizvoda
- 52962
- Kataloški broj
- XLG-200-12-A
- Jamstvo
- 5 godina
- Raspoloživost
-
raspoloživo
Opis
XLG-200-12 je 230V LED napajanje sa kućištem od perforiranog lima,
podesivog napona.
Idealan za LED trake i raznu LED rasvijetu.
SELV zaštita
OUTPUT
- DC VOLTAGE:12V
- RATED CURRENT:16A
- RATED POWER:192W
- CURRENT ADJ. RANGE:8 ~ 16A
- VOLTAGE TOLERANCE: +/-2%
INPUT
- VOLTAGE RANGE:142 ~ 431VDC
- FREQUENCY RANGE: 47-63 Hz
- EFFICIENCY (Typ.): 92%
- AC CURRENT:2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
ENVIRONMENTi
- WORKING TEMP.: -40°~+90°
- WORKING HUMIDITY: 20 ~ 95% RH non-condensing
- WEIGHT: 850 g
- DIMENSION: 199*63*35.5mm (L*W*H)
- PROTECTION: IP67 / SELV
XLG-200-12 je 230V LED napajanje sa kućištem od perforiranog lima,
podesivog napona.
Idealan za LED trake i raznu LED rasvijetu.
SELV zaštita
OUTPUT
- DC VOLTAGE:12V
- RATED CURRENT:16A
- RATED POWER:192W
- CURRENT ADJ. RANGE:8 ~ 16A
- VOLTAGE TOLERANCE: +/-2%
INPUT
- VOLTAGE RANGE:142 ~ 431VDC
- FREQUENCY RANGE: 47-63 Hz
- EFFICIENCY (Typ.): 92%
- AC CURRENT:2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
ENVIRONMENTi
- WORKING TEMP.: -40°~+90°
- WORKING HUMIDITY: 20 ~ 95% RH non-condensing
- WEIGHT: 850 g
- DIMENSION: 199*63*35.5mm (L*W*H)
- PROTECTION: IP67 / SELV
