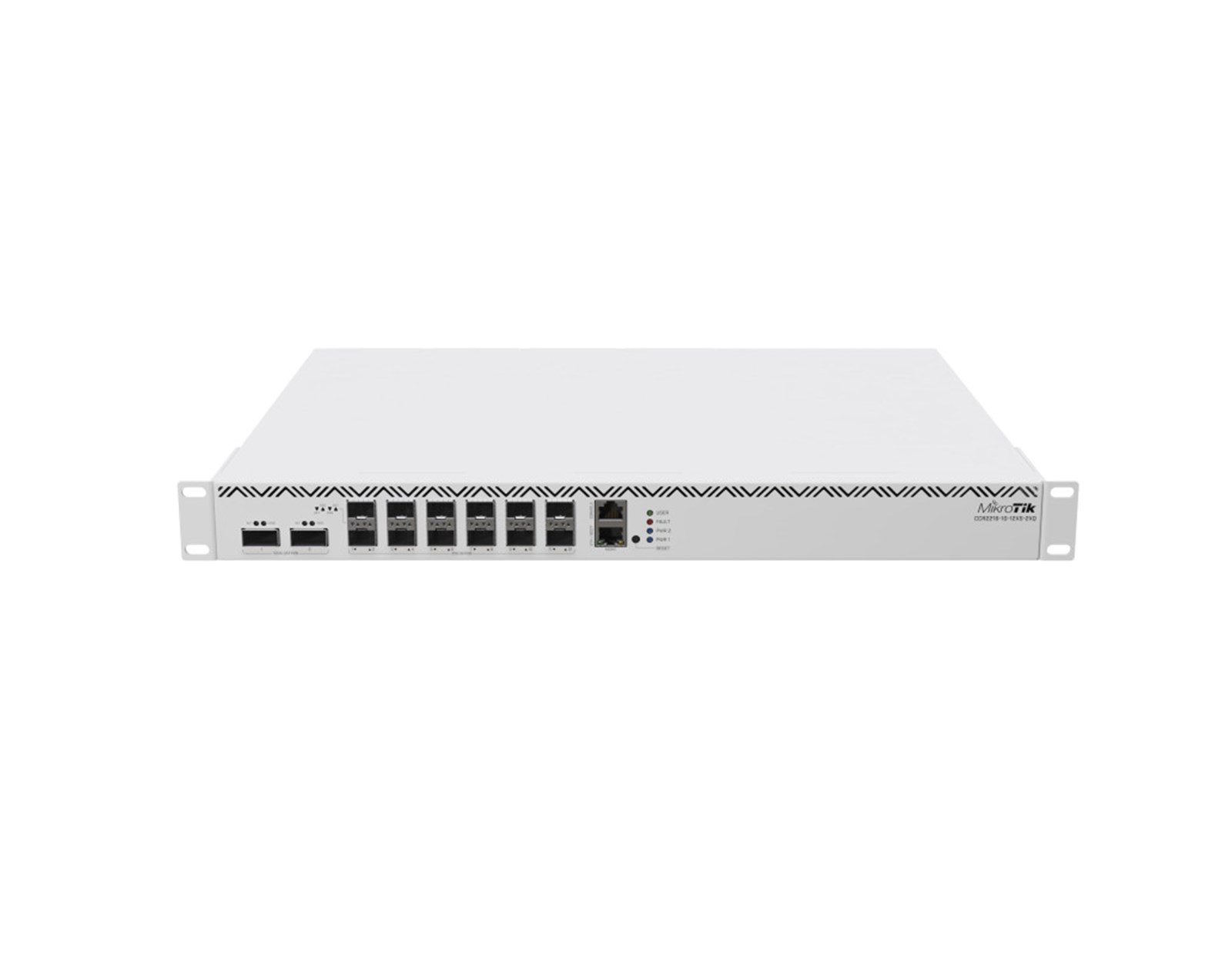

Mikrotik Cloud Core Router 2216-1G-12XS-2XQ, AL73400 CPU (16-cores), 16GB RAM, 2×100G QSFP, 14×25G SFP28, 1×Gbit LAN, 2xM.2 SATA, RouterOS L6, 1U, rackmount, Dual-redundant hot-swap PSU's

- The new MikroTik flagship with the power of a whole fleet. Unleash the power of 100 Gigabit networking with L3 Hardware Offloading! This router can be a handy drop-in upgrade for existing CCR1072 setups.
Start your 100 Gigabit journey with our new flagship product: the Cloud Core Router 2216! Its powerful 16-core CPU can trade blows with the mighty 72-core Tile CPU of our previous flagship - the CCR1072.

- But the exceptional Marvell Prestera Aldrin2 switch-chip really takes it to the next level with L3 Hardware Offloading! Our previous CCR2116 featured a switch-chip with four 10G CPU connection lines, but this time there are four 25G lines!

- There are 2x QSFP28 cages for blazing-fast 100 Gigabit connectivity, 12x SFP28 cages for 25 Gigabit networking, and a Gigabit Ethernet port. The device comes with 16 GB of RAM, decent NAND storage, and two M.2 SATA slots for additional storage. There are four hot-swappable fans, as well as dual-redundant hot-swap power supplies. And these PSUs might look familiar if you have used our CCR1072 before: you can keep using your previous hot-swap power supplies and SFP modules.

- You’re saving time and money on accessories, while also getting better performance with lower power consumption.. This is the perfect drop-in upgrade for existing CCR1072 setups!

Specifications
Details
- Product code: CCR2216-1G-12XS-2XQ
- Architecture: ARM 64bit
- CPU: AL73400
- CPU core count: 16
- CPU nominal frequency: 2000 MHz
- Switch chip model: 98DX8525
- Dimensions: 443 x 367 x 44 mm
- RouterOS license: 6
- Operating System: RouterOS v7
- Size of RAM: 16 GB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -20°C to 60°C
- IPsec hardware acceleration: Yes

Powering
- Number of AC inputs: 2
- AC input range: 100-240
- Max power consumption: 128 W
- Max power consumption without attachments: 80 W
- Cooling type: 4 fans

Ethernet
- 10/100/1000 Ethernet ports: 1

Fiber
- Number of 25G SFP28 ports: 12
- Number of 100G QSFP28 ports: 2

Peripherals
- Serial console port: RJ45
- Number of M.2 slots: 2

Other
- CPU temperature monitor: Yes
- PCB temperature monitor: Yes
- Voltage Monitor: Yes

Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: 20
