Mikrotik L23UGSR-5HaxD2HaxD-NM NetMetal ax long-range outdoor AP Wi-Fi 6, 800 MHz

- The Mars rover of networking. Our toughest long-range outdoor access point – now with Wi-Fi 6!

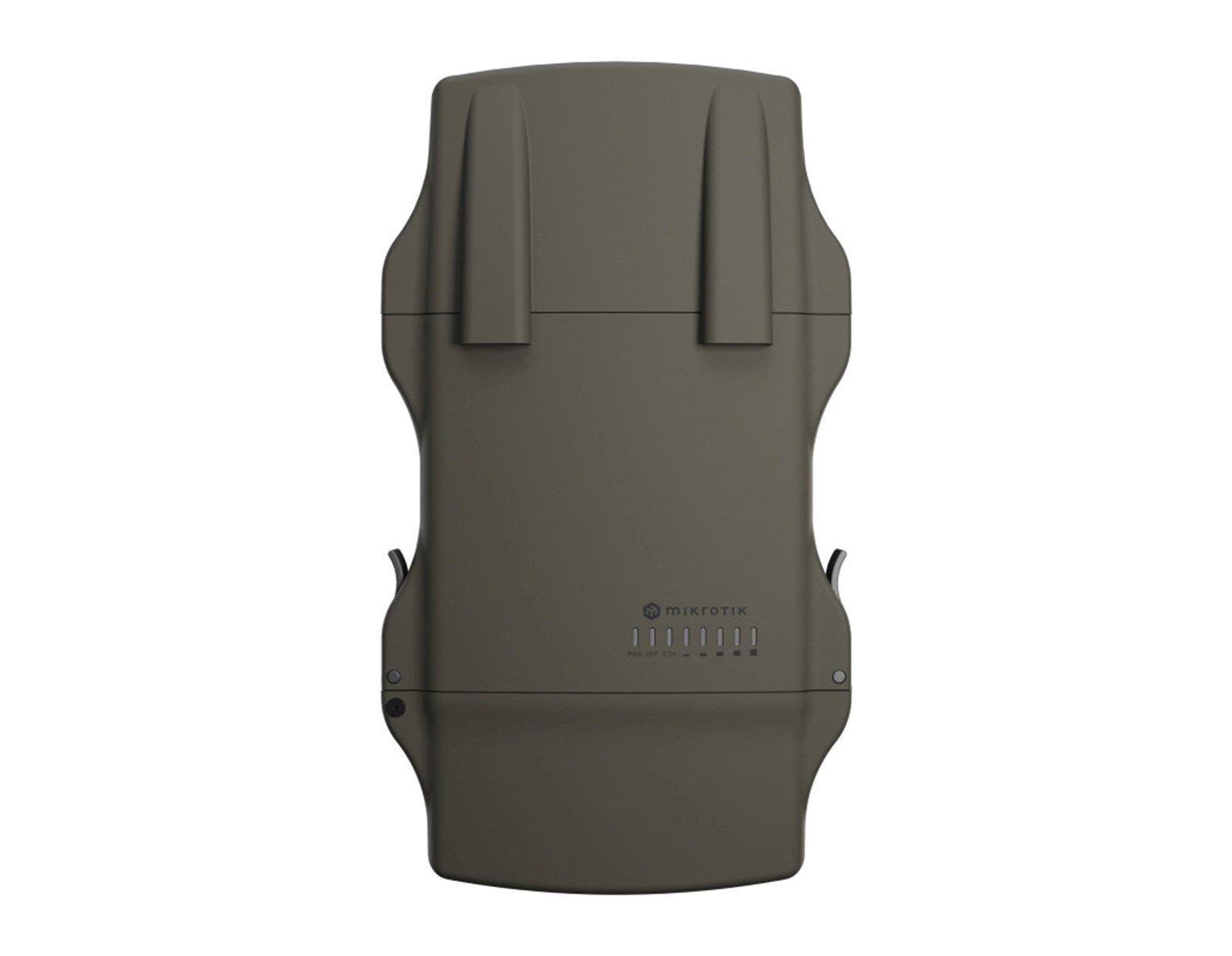

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of networking!

- It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fiber connectivity, a USB port, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the NetMetal! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

- A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA connectors allow adding an antenna of your choice for distances up to 30 kilometers.*. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band.

- If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It’s important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.

Specifications
Details
- Product code: L23UGSR-5HaxD2HaxD-NM
- Architecture: ARM 64bit
- CPU: IPQ-5010
- CPU core count: 2
- CPU nominal frequency: 800 MHz
- RouterOS license: 4
- Operating System: RouterOS v7
- Sze of RAM: 256 MB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C

Powering
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 12-28 V
- Max power consumption: 25 W
- Max power consumption without attachments: 12 W
- Cooling type: Passive
- PoE in: Passive PoE
- PoE in input Voltage: 18-28 V

Wireless specifications
- Wireless 2.4 GHz Max data rate: 574 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Wireless 2.4 GHz chip model: IPQ-5010
- Wireless 2.4 GHz generation: Wi-Fi 6
- Wireless 5 GHz Max data rate: 2400 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Wireless 5 GHz chip model: QCN-6102
- Wireless 5 GHz generation: Wi-Fi 6

Ethernet
- 10/100/1000 Ethernet ports: 1

Fiber
- SFP ports: 1 (2.5G supported)

Peripherals
- Number of SIM slots: 1 Modem (Nano SIM)
- MiniPCI-e slots: 1
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB type A
- Max USB current (A): 1

Other
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Beeper: Yes

Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
- IP: 66
