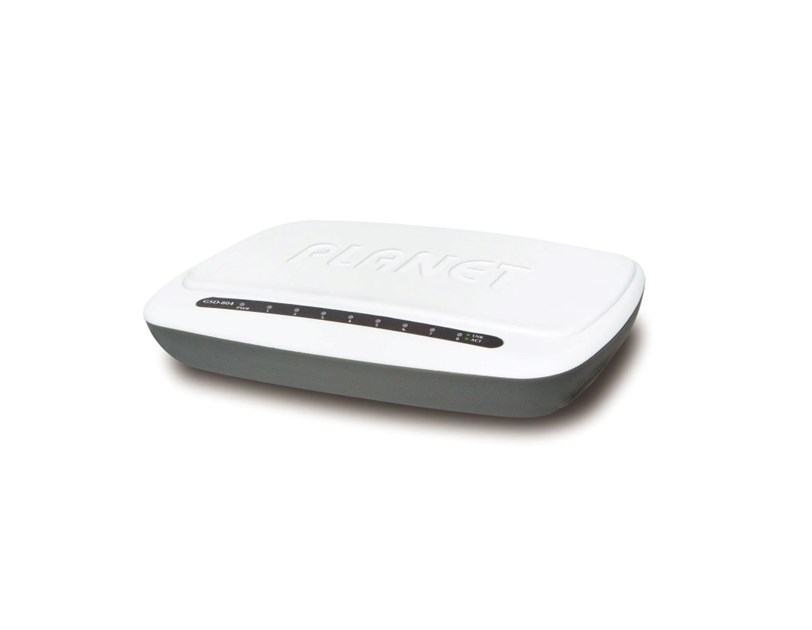

PLANET Gigabit preklopnik (Switch) 8-port 10/100/1000Mbps

Key Features
- Eight 10/100/1000Mbps Gigabit Ethernet ports
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
- Supports auto MDI/MDI-X function
- Hardware-based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Integrated address look-up engine, supporting 8K absolute MAC addresses
- 9K Jumbo packet size
- Power saving ability for Green networking
- Automatic address learning and address aging
- Supports CSMA/CD protocol Made from plastic, desktop size and wall-mount design
- LED indicators for system power, per port Link / Act
- 5V DC, 1A external power adapter
- FCC, CE Class B compliant

SPECIFICATION
HARDWARE SPECIFICATION
- Hardware Version: 7
- 10/100/1000Base-T Ports: 8 auto MDI/MDIX ports
- LED Display: One for Power, One for Link / Act per port
- Enclosure: Plastic
- Dimensions (W×D×H): 168×100×29mm
- Weight (g): 175g
- Power Requirements (External power adapter): 5V DC, 1A
- Power Consumption (100M full operation): 4 watts / 13 BTU

SWITCH SPECIFICATIONS
- Switch Processing Scheme: Store-and-Forward
- Address Table: 8K
- Flow Control:
* Back pressure half duplex
* IEEE 802.3x pause frame full duplex
- Switch Fabric: 16Gbps
- Throughput (packet per second): 11.9Mpps
- Jumbo packet size: 9K

STANDARD CONFORMANCE
- Regulation Compliance: FCC Part 15 Class B, CE
- Standards Compliance:
* IEEE 802.3 (Ethernet)
* IEEE 802.3u (Fast Ethernet)
* IEEE 802.3ab(Gigabit Ethernet)
* IEEE 802.3x (Full-duplex flow control)
* IEEE 802.3az Energy Efficient Ethernet (EEE)
