Ne odgovaramo za eventualne pogreške nastale u opisu proizvoda. Slike artikala su ilustrativne prirode te ne moraju u potpunosti odgovarati artiklima.

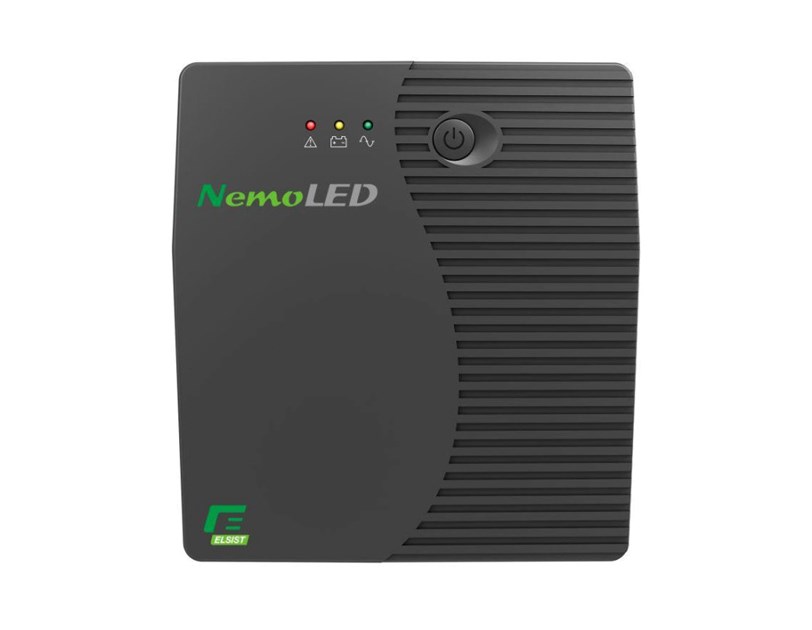

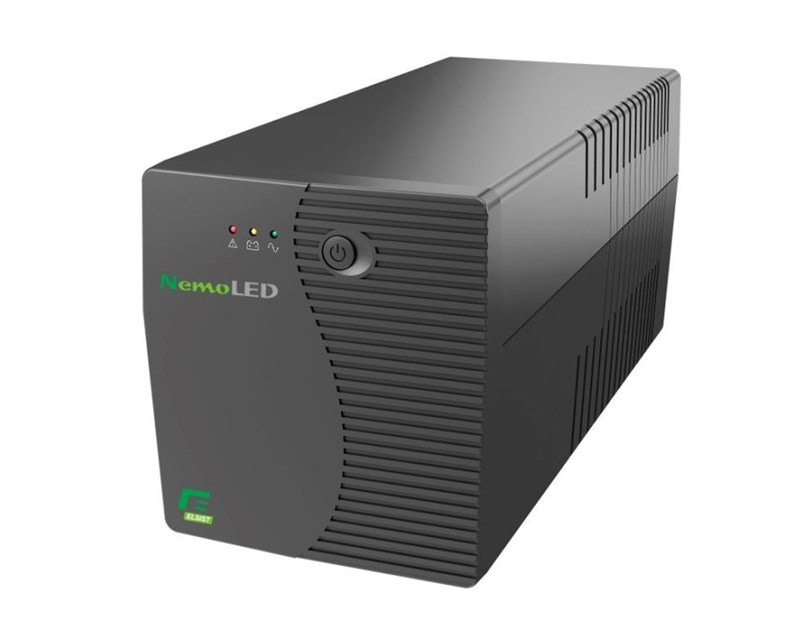

Elsist UPS NemoLED 160 1600VA/600W, Line-Interactive, 4×Schuko, 2x 12V/7Ah, 10min. autonomija
-
Šifra artikla64371
-
Kataloški brojNEMOLED160
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}
Specifications
NPUT
- Input Voltage: 220-230-240Vac Acceptance Range: 162-290Vac
- Frequency: 50/60Hz (automatic switching)
OUTPUT
- Output Voltage: 230Vac
- Waveform: Simulated sine wave at rated
- voltage Voltage tolerance: ± 10%
- Frequency: 50/60Hz (as the input frequency)
- Power (VA/W): 1600/600
- Switching time: 2-6 mS tpc, 10ms max
- Schuko sockets: 4
NOISE
- FILTERING Present
BATTERIES
- Typical runtime: 10 min
- Battery voltage: 2x 12V/7Ah
- Type: Pb Hermetic
- Charging time: 6-8 hours at 90% after full discharge
PROTECTIONS
- Overvoltage/Undervoltage: Switching to "Battery Operation"Overload/Short Circuit: Electronic Limit (Both for "Mains Operation" and "Battery Operation")
AUDIBLE ALARMS Battery
- mode: 1 time every 10 sec Low battery: 1 time per sec Overload: 1 time every 0.5 sec
- Fault: continuous
MECHANICAL CHARACTERISTICS
- Maximum dimensions (LxWxH) mm: 149x350x162
- Weight (Kg): 7,5
Environment
- Temperature 0-40°C, Humidity 0-95% non-condensing, max altitude 3000 mt.
- Audible noise: < 40dbA (measured at 1mt.)
STANDARDS
- IEC/EN62040-1 IEC/EN62040-2 IEC/EN62040-3 IEC/EN60950-1
NPUT
- Input Voltage: 220-230-240Vac Acceptance Range: 162-290Vac
- Frequency: 50/60Hz (automatic switching)
OUTPUT
- Output Voltage: 230Vac
- Waveform: Simulated sine wave at rated
- voltage Voltage tolerance: ± 10%
- Frequency: 50/60Hz (as the input frequency)
- Power (VA/W): 1600/600
- Switching time: 2-6 mS tpc, 10ms max
- Schuko sockets: 4
NOISE
- FILTERING Present
BATTERIES
- Typical runtime: 10 min
- Battery voltage: 2x 12V/7Ah
- Type: Pb Hermetic
- Charging time: 6-8 hours at 90% after full discharge
PROTECTIONS
- Overvoltage/Undervoltage: Switching to "Battery Operation"Overload/Short Circuit: Electronic Limit (Both for "Mains Operation" and "Battery Operation")
AUDIBLE ALARMS Battery
- mode: 1 time every 10 sec Low battery: 1 time per sec Overload: 1 time every 0.5 sec
- Fault: continuous
MECHANICAL CHARACTERISTICS
- Maximum dimensions (LxWxH) mm: 149x350x162
- Weight (Kg): 7,5
Environment
- Temperature 0-40°C, Humidity 0-95% non-condensing, max altitude 3000 mt.
- Audible noise: < 40dbA (measured at 1mt.)
STANDARDS
- IEC/EN62040-1 IEC/EN62040-2 IEC/EN62040-3 IEC/EN60950-1
- 1 fazni/3 fazni
- 1 Fazni
- Rack/Tower/Compact
- Tower
- Vrsta
- Line-interactive
- Robna marka
- (595-57)
