Ne odgovaramo za eventualne pogreške nastale u opisu proizvoda. Slike artikala su ilustrativne prirode te ne moraju u potpunosti odgovarati artiklima.

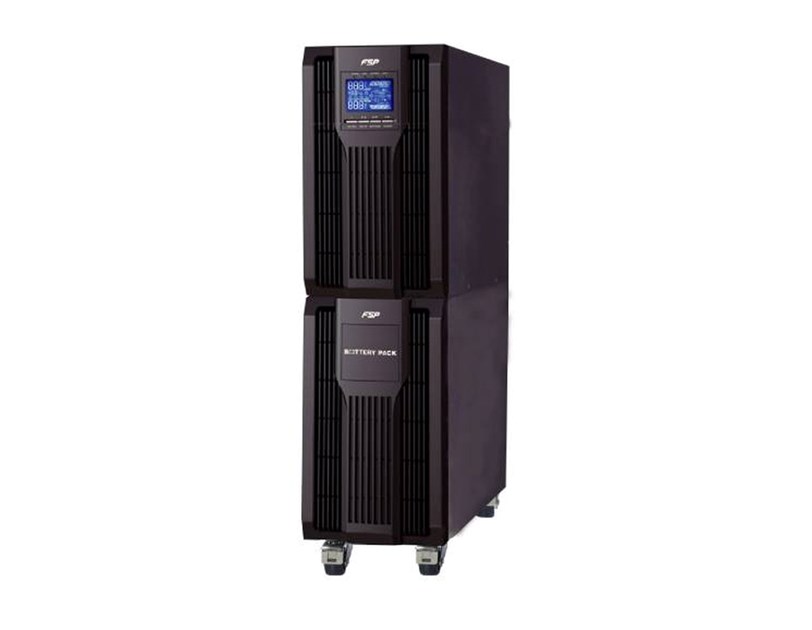

Fortron Source Champ Tower 10000VA/9000W, On-line double conversion, Pure Sinewave, 0.9 power factor, 16pcs CSB 9Ah battery inside, USB, RS-232, EPO
20241108T13_31_42Z.png)
-
Šifra artikla65740
-
Kataloški brojPPF90A0802
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}
- FSP Champ Rack Series is the high density version of double-conversion online UPS with a output power factor 0.9.
- It’s designed in small cabinet with microprocessor controller.
- It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Features
- Capacity: 10000VA/9000W
- Power Factor (PF): 0.9
- Wave Form: Sine wave
- Battery: 16pcs CSB 9Ah battery inside
- Battery Extension: Yes
- Intelligent Slot: SNMP, AS400, RS485-Modbus
- Built-in MBS: Yes
- Network Ports: USB, RS-232, EPO
- Box contents: UPS, user manual, software CD, USB cable
Specifications
- Model: Champ TW 10K
- Capacity: 10000 VA / 9000W
- Input Voltage Range: 110-300 VAC (50% load), 176-300VAC (100% load)
- Input Frequency: 46Hz ~ 54Hz or 56Hz ~ 64Hz
- Power Factor: ? 0.99 @ Nominal Voltage (100% load)
- Output Voltage: 208/220/230/240 VAC
- Output Frequency Range: 46Hz ~ 54Hz or 56Hz ~ 64Hz
- Current Crest Ratio: 3:1
- Harmonic Distortion:
• ? 3 % THD (Linear Load)
• ? 5 % THD (Non-linear Load)
- Output Transfer Time (Typical)
• Zero (AC to DC)
• Zero (Inverter to Bypass)
- Output Waveform (Batt. Mode): Pure Sinewave
- Battery Type & Number: No internal battery
- Backup Time: Up to 6mins @ full load
- Typical Recharge Time (up to 90% capacity): 4 hours
- Indicators / AC Mode: ?
- Indicators / Battery Mode: ?
- Indicators / Battery level: ?
- Indicators / Load level: ?
- Indicators / Bypass mode: ?
- Indicators / Fault: ?
- Alarm / Battery Mode: Sounding every 4 seconds
- Alarm / Low Battery: Sounding every second (Batt. Mode)
- Alarm / Overload: Sounding twice per second
- Alarm / Fault: Continuously sounding
- Physical Dimension (mm): 442 x 190 x 318 (DxWxH)
- UPS Net Weight (kg): Long run time Model: 16
- Operating Environment / Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
- Operating Environment / Noise Level: Less than 50dB @ 1 Meter
- Management / Optional USB / RS-232 Port: Supports Windows 98/XP/2000/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Linux, and MAC
- Optional SNMP: Power management from SNMP manager and web browser
- It’s designed in small cabinet with microprocessor controller.
- It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Features
- Capacity: 10000VA/9000W
- Power Factor (PF): 0.9
- Wave Form: Sine wave
- Battery: 16pcs CSB 9Ah battery inside
- Battery Extension: Yes
- Intelligent Slot: SNMP, AS400, RS485-Modbus
- Built-in MBS: Yes
- Network Ports: USB, RS-232, EPO
- Box contents: UPS, user manual, software CD, USB cable
Specifications
- Model: Champ TW 10K
- Capacity: 10000 VA / 9000W
- Input Voltage Range: 110-300 VAC (50% load), 176-300VAC (100% load)
- Input Frequency: 46Hz ~ 54Hz or 56Hz ~ 64Hz
- Power Factor: ? 0.99 @ Nominal Voltage (100% load)
- Output Voltage: 208/220/230/240 VAC
- Output Frequency Range: 46Hz ~ 54Hz or 56Hz ~ 64Hz
- Current Crest Ratio: 3:1
- Harmonic Distortion:
• ? 3 % THD (Linear Load)
• ? 5 % THD (Non-linear Load)
- Output Transfer Time (Typical)
• Zero (AC to DC)
• Zero (Inverter to Bypass)
- Output Waveform (Batt. Mode): Pure Sinewave
- Battery Type & Number: No internal battery
- Backup Time: Up to 6mins @ full load
- Typical Recharge Time (up to 90% capacity): 4 hours
- Indicators / AC Mode: ?
- Indicators / Battery Mode: ?
- Indicators / Battery level: ?
- Indicators / Load level: ?
- Indicators / Bypass mode: ?
- Indicators / Fault: ?
- Alarm / Battery Mode: Sounding every 4 seconds
- Alarm / Low Battery: Sounding every second (Batt. Mode)
- Alarm / Overload: Sounding twice per second
- Alarm / Fault: Continuously sounding
- Physical Dimension (mm): 442 x 190 x 318 (DxWxH)
- UPS Net Weight (kg): Long run time Model: 16
- Operating Environment / Humidity: 20-90 % RH @ 0- 40°C (non-condensing)
- Operating Environment / Noise Level: Less than 50dB @ 1 Meter
- Management / Optional USB / RS-232 Port: Supports Windows 98/XP/2000/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Linux, and MAC
- Optional SNMP: Power management from SNMP manager and web browser
- 1 fazni/3 fazni
- 1 Fazni
- Rack/Tower/Compact
- Tower
- Vrsta
- On-line double conversion
- Robna marka
- (654-57)
