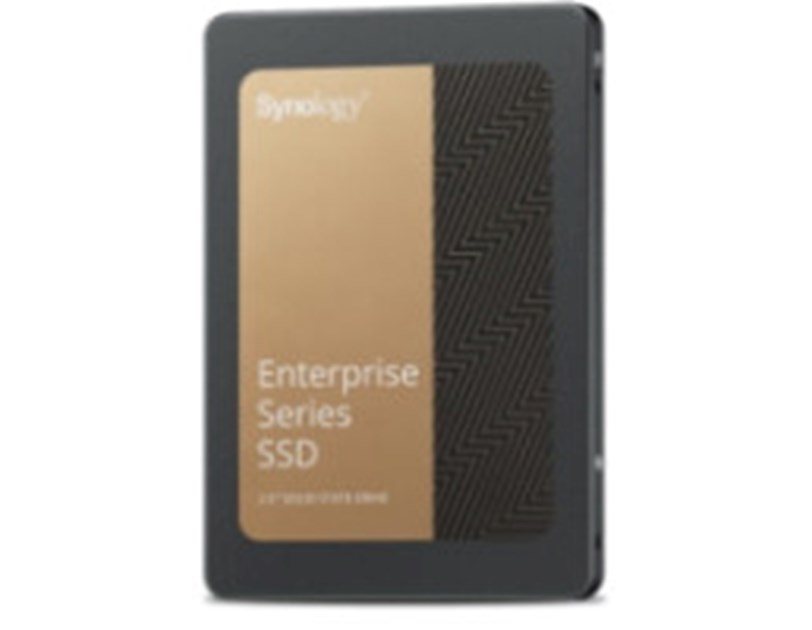

Synology 960GB SATA3 SSD Enterprise, 2.5" (SAT5221-960G)

Enterprise solid-state drives
- Synology SAT5200 Series SATA SSDs offer stable I/O performance while reducing the latency of critical services and applications. They are built to handle mixed and intensive 24/7 workloads without compromising on endurance, providing a streamlined storage experience on Synology systems with minimal service disruptions.

Performance
- Up to 67,000 4K random write IOPS

Endurance
- Up to 11,460 TBW for 24/7 enterprise workloads

Analytics
- Actionable insight for optimal performance and longevity

Updates
- One-click drive firmware updates through DSM4

Stable high performance for demanding environments
- Engineered for demanding environments such as for online transaction processing (OLTP) databases and virtualization deployments, Synology SAT5200 Series drives deliver consistently high performance.

11,460 TBW
- Built to withstand 24/7 intensive workloads with endurance up to 11,460 TBW.

End-to-end data protection
- Data integrity and consistency are safeguarded over the entire data transfer path.

Power loss protection circuit design
- Dedicated capacitors provide sufficient power to flush data-in-flight into NAND flash during a power loss event, further preventing data corruption.

Better analytics
- Full integration with Synology DiskStation Manager (DSM) enables lifetime analytics for each SAT5200 Series drive based on actual workloads.

Timely notifications
- Plan further ahead for uninterrupted system performance and longevity with timely notifications.

Optimal use
- Easy monitoring allows you to make optimal use of each SSD.

One-click firmware upgrades
- Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.

Purpose-built for Synology systems
- Synology SAT5200 Series SSDs are thoroughly validated for our systems following each engineering change, while firmware and component changes are strictly managed. Intensive I/O stress, power cycling, and temperature trials ensure that all products meet our strictest standards for quality and reliability.

Specifications
General
- Capacity: 960 GB
- Form Factor: 2.5" 7mm
- Interface: SATA 6 Gb/s

Performance

• Sustained Sequential read (128 KB, QD32): 530 MB/s

• Sustained Sequential write (128 KB, QD32): 500 MB/s

• Sustained Random Read (4KB, QD32): 98,000 IOPS

• Sustained Random Write (4KB, QD32): 67,000 IOPS
- Notes
* All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.
* Performance specifications refer to SSD performance only. Actual performance may vary depending on the hardware and software configuration of the host system.

Endurance and Reliability

• Terabytes Written (TBW): 2,194 TB

• Power Loss Protection: Yes
- Warranty: 5 years
- Notes

• Based on the JESD219A enterprise workload.

• 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first.
- Power Consumption

• Active Read (Typ.): 2.7 W

• Active Write (Typ.): 2.8 W

• Idle: 1.4 W
- Notes
* Power consumption may differ according to configurations and platforms.
- Temperature

• Operating Temperature: 0°C to 70°C (32°F to 158°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
