Ubiquiti EdgeMax Managed 8-port Gigabit PoE Switch, 2×SFP, 150W (ES-8-150W)

- Managed PoE+ Gigabit Switch with SFP
- The fanless EdgeSwitch 8 is a fully managed, high-performance, PoE+ Gigabit switch
- It delivers powerful performance and intelligent switching with its 10 independent switching ports
- A DC input option is included for flexibility

GIGABIT CONNECTIVITY
- The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity
- It can be placed on a desktop or mounted on a wall

CONVENIENT PoE+ SUPPORT
- Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure

OPTICAL FIBER BACKHAUL
- The EdgeSwitch provides fiber connectivity options for your growing networks
- Two SFP ports provide uplinks of up to 1 Gbps

POWERFUL PERFORMANCE
- The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps

SWITCHING CAPACITY
- The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss

ADVANCED UI
- The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface
- For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH

Features
- 8× Gigabit RJ45 Ports
- 2× SFP Ports
- 1× Serial Console Port
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Maximum Power Consumption: 150W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Wallmountable with Mount Brackets (Included)
- Desktop-Mountable (Do not physically stack the ES-8-150W)
- DC Input Option (Redundant or Stand-Alone)

Specifications
- Total Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Max. Power Consumption:
* Includes PoE Output : 150W
* Excludes PoE Output: 20W
- Power Method:
* AC: 100-240VAC/50-60 Hz, AC/DC Integrated PSU, Universal Input
* DC: 42 to 56VDC External, (Self-Correcting Polarity Protection) Terminal Block Input
- Power Supply: AC/DC, Internal, 150W DC
- LEDs Per Port:
* RJ45 Data Ports - PoE, Speed/Link/Activity
* SFP Data Ports- Speed/Link/Activity
- Networking Interfaces:
* 8× 10/100/1000 Mbps RJ45 Ethernet Ports
* 2× 1 Gbps SFP Ethernet Ports
- Management Interface: 1× RJ45 Serial Port, Ethernet In/Out Band
- Certifications: CE, FCC, IC
- Wallmount: Yes
- ESD/EMP Protection:
* Air: +/-24 kV
* Contact: +/-24 kV
- Operating Temperature:
* Internal AC/DC @ 150W: -25C to 45C (-13F to 113 F)
* Internal AC/DC @ 100W : -25C to 55C (-13F to 131 F)
* External DC: -25C to 60C (-13F to 140 F)
- Operating Humidity: 5% to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard

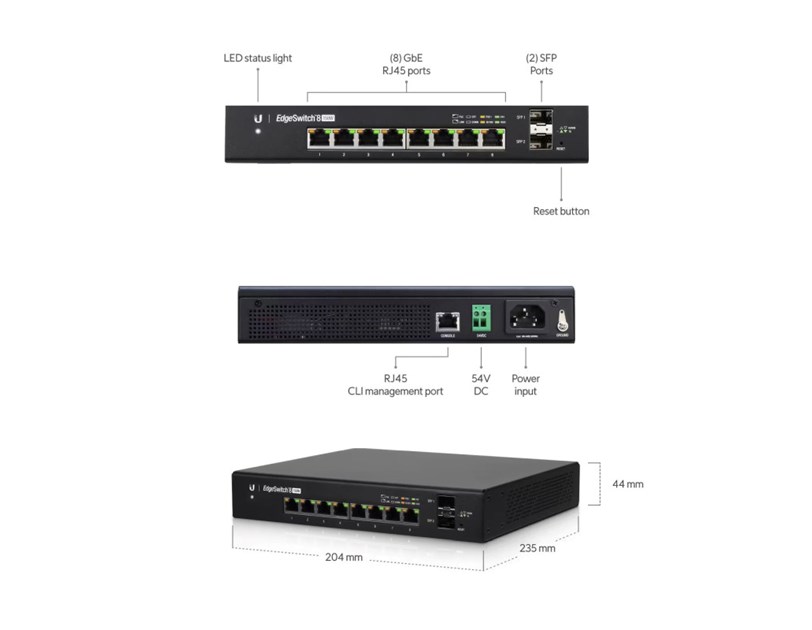

- Dimensions: 204×43×235 mm (8.03"×1.69"×9.25")
- Weight:
* Without Mount Brackets: 1.72 kg (3.79 lb)
* With Mount Brackets: 1.8 kg (3.96 lb)

PoE Per Port
- PoE Interfaces:
* POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
* 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
- Max. PoE+ Wattage per Port by PSE: 34.2W
- Voltage Range 802.3at Mode: 50-57V
- Max. Passive PoE Wattage per Port: 17W
- 24V Passive PoE Voltage Range: 20-27V
