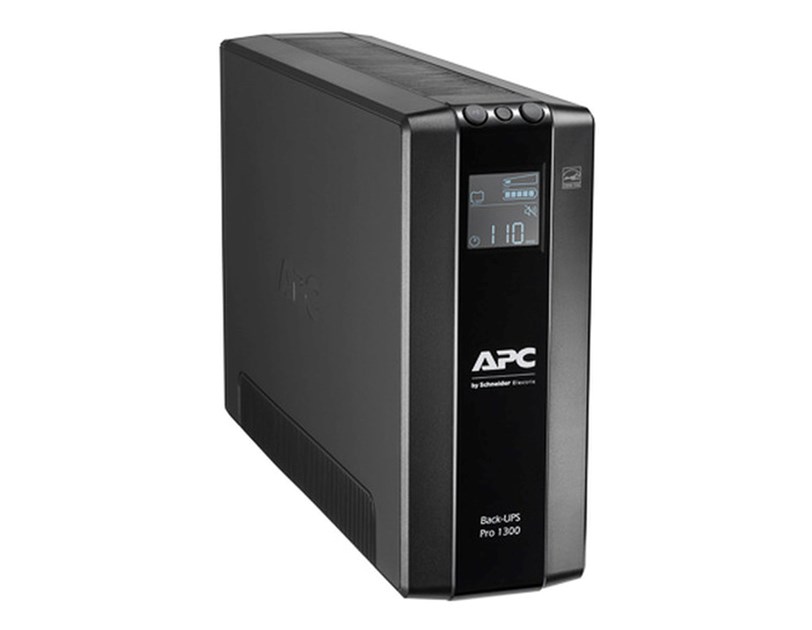

APC BR1300MI Back UPS Pro BR 1300VA/780W, Sinewave, 8 C13 Outlets, AVR, LCD interface

Features
- Output power capacity: 780 Watts / 1.3kVA

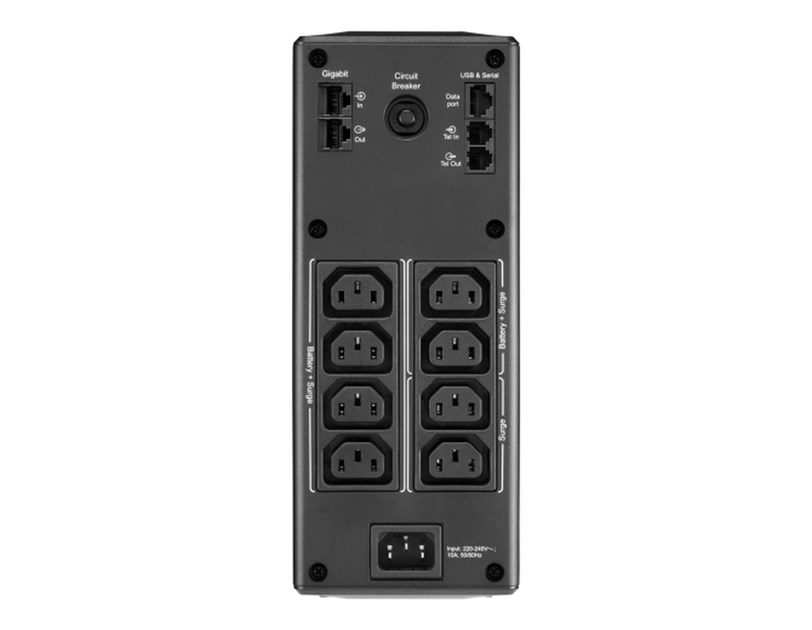

- Output Connections

• (6) IEC 60320 C13 (Battery Backup)

• (2) IEC 60320 C13 (Surge Protection)
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: IEC 60320 C13

Specifications
Output
- Max Configurable Power (Watts): 780 Watts / 1.3kVA
- Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
- Topology: Line interactive

Input
- Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
- Input voltage range for main operations: 176 - 294V

Batteries & Runtime
- Battery type: Lead-acid battery
- Typical recharge time: 16hour(s)
- Nominal Battery Voltage: 24 V
- Replacement Battery: APCRBC165
- Expected Battery Life (years): 3 - 5
- RBC Quantity: 1
- Battery Charge Power (Watts): 11 Watts

Communications & Management
- Interface Port(s): USB
- Control panel: Multifunction LCD status and control console

Surge Protection and Filtering
- Surge energy rating: 509 Joules
- Filtering: Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Physical
- Maximum Height: 100MM, 10.0CM
- Maximum Width: 250MM, 25.0CM
- Maximum Depth: 382MM, 38.2CM
- Net Weight: 10.2KG
- Shipping weight: 11.85KG
- Shipping Height: 330MM, 33.0CM
- Shipping Width: 225MM, 22.5CM
- Shipping Depth: 485MM, 48.5CM
- Color: Black
- SCC Codes: 10731304346903

Environmental
- Operating Temperature: 0 - 40 °C
- Operating Relative Humidity: 0 - 95 (Non-condensing) %
- Operating Elevation: 0 - 3048meters
- Storage Temperature: -15 - 45 °C
- Storage Relative Humidity: 0 - 95 (Non-condensing) %
- Storage Elevation: 0 - 15240meters
- Audible noise at 1 meter from surface of unit: 45.0dBA
- Online thermal dissipation: 22.0BTU/hr

Conformance
- Approvals: A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
