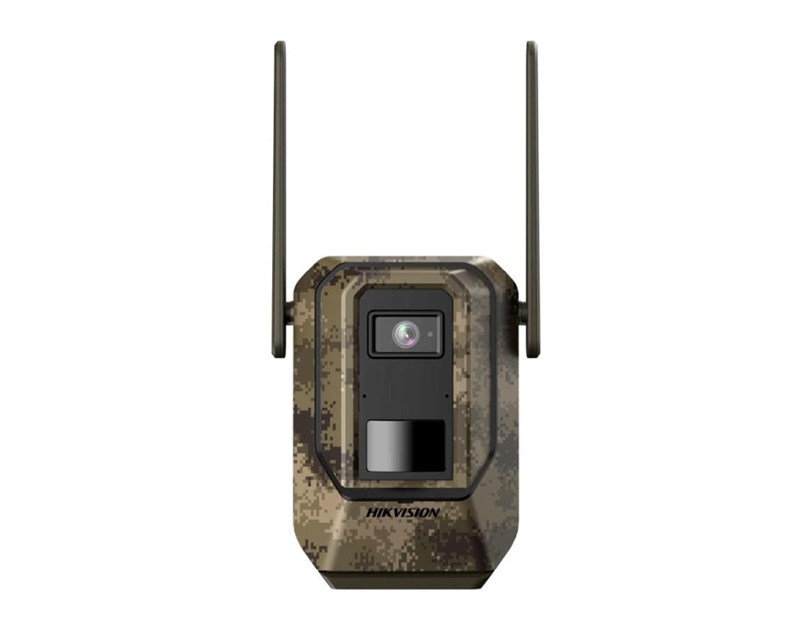

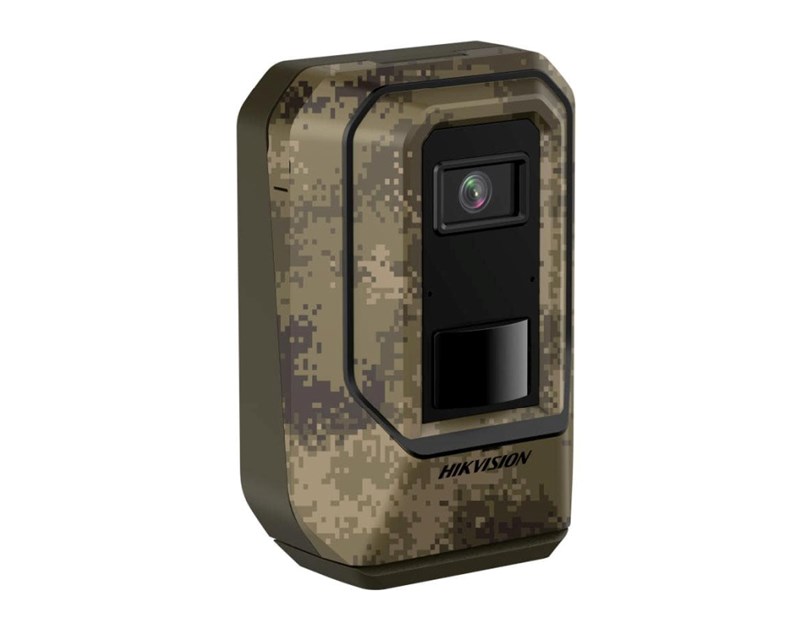

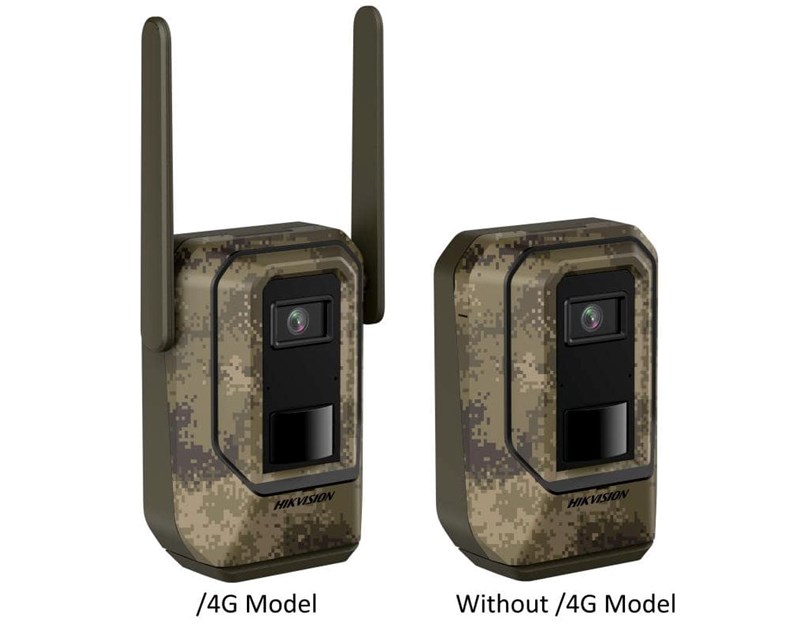

HikVision IP lovačka kamera 4G LTE H.265 (2688×1520), IR (DS-2XS6F45G0-IC1/4G (2.8mm))

- It can be installed in the wild environment for concealed monitoring and capture, and can detect the living habits and wild animals to provide guidance for nimal protection research

Features
- High-sensitivity PIR detector, accurate detection of wild animals, high-definition image acquisition, detection range can cover horizontal 102°
- Ultra-low power consumption: Support sleep mode and full power consumption mode, in sleep mode, the standby time can be up to 180 days (10 snapshots a day)
- Ultra-low illumination, providing star-level monitoring effect, providing clearer video and snapshot effects
- The highest resolution can reach 2560 × 1440 @25 fps, and real-time image can be output
- Support BLC, HLC,DWDR, adapt to different monitoring environments
- 15 m IR Range
- Support 256 GB Micro SD/Micro SDHC/Micro SDXC
- Support: LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/EVDO/CDMA 1×
- Build-in GPS
- Build-in microphone

Specification
CAMERA
- Image Sensor: 1/3" Progressive Scan CMOS
- Min. Illumination:
* Color: 0.005 Lux @ (F1.2, AGC ON)
* B/W: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Wide Dynamic Range: Digital WDR
- Day & Night: IR cut filter

LENS
- Lens Type & FOV: 2.8 mm, horizontal FOV 102°, vertical FOV 55°, diagonal FOV 122°
- Aperture: F1.4
- Lens Mount: M12

ILLUMINATOR
- IR Range: Up to 15 m
- Wavelength: 940 nm
- Smart Supplement Light: Yes

VIDEO
- Max. Resolution: 2688×1520
- Main Stream:
* 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720)
* 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720)
- Sub Stream:
* 50 Hz: 25 fps (640×480, 640×360)
* 60 Hz: 30 fps (640×480, 640×360)
- Video Compression:
* Main stream: H.265
* Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CVR/BVR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 4 fixed area for main stream and sub-stream

AUDIO
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 KHz/16 KHz/32 KHz/44.1 KHz/48 KHz
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32~192 Kbps(MP2L2)
- Audio Type: Mono

NETWORK
- Simultaneous Live View: Up to 20 channels
- API: Open Network Video Interface (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, UDP
- User/Host: Up to 32 users / 3 user levels: administrator, operator and user
- Network Storage:
* NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
* Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Client: iVMS-4200, Hik-Connect
- Web Browser:
* Plug-in required: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11
* Plug-in free: Chrome 45.0+, Firefox 52.0+

MOBILE COMMUNICATION
- 4G Frequency:
* LTE-TDD Band 38/39/40/41
* LTE-FDD Band 1/3/5
* TD-SCDMA Band 34/39
* UMTS 1/8
* EVDO BC0
* CDMA 1x BC0
- 4G Standard: LTE-TDD/LTE-FDD/TD-SCDMA/UMTS/EVDO/CDMA 1×

- Day/Night Switch: Day, Auto
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image Enhancement: BLC, HLC, Defog, 3D DNR
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- SNR: ? 52 dB
- Privacy Mask: Yes

PIR
- PIR Range: 15 m
- PIR Angle: Horizontal: 90°

SATELLITE POSITIONING
- GPS Detection: Support GPS and searching longitude and latitude of the device

INTERFACE
- Audio: 1 built-in microphone
- RS-232: 1 four-core 1.5 mm serial port
- On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
- Hardware Reset: Yes
- Ethernet Interface: 1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)

EVENT
- Smart Event: Intrusion detection, line crossing detection, region entrance detection, region exiting detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, sending message

GENERAL
- Online Upgrade: Yes
- Dual Backup: Yes
- Firmware Version: V5.5.110
- General Function: One-key reset, anti-banding, heartbeat, password protection, privacy mask, watermark, IP address filter
- Software Reset: Yes
- Material: Plastic
- Screw Material: SUS304
- Camera Dimension:
* With antennas folded: 171.5×139.7×86.9 mm
* With antennas extending: 283.4×139.7×86.9 mm
- Camera Weight: Approx. 0.61 kg
- Storage Conditions: -20 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
- Startup and Operating Conditions:
* C1/C2: -20 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
* C0: -10 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
- Power Supply:
* C1/C2: USB Type-C (5V, 2A)
* C0: dry cell (10, 5AA dry cell, 1.5 V)
- Power Consumption and Current: 6 to 15 VDC, 0.82 to 0.33 A, max. 4.9 W
- Power Interface:
* C1/C2: pin
* C0: shrapnel (5AA dry cell)

BATTERY
- Battery Type:
* C1/C2: chargeable lithium battery
* C0: 5AA dry cell
- Capacity: C1/C2: 9.4 Ah
- Operating Temperature:
* C1/C2: -20°C - 60°C
* C0: -10°C - 60°C
- Battery Voltage:
* C1/C2: Rated voltage: 7.2 VDC, Charging voltage: 8.4 VDC, Discharging cut-off voltage: 5.6 VDC
* C0: Rated voltage: 15 VDC, Discharging cut-off voltage: 8 VDC
- Cycle Lifetime: Cycle lifetime is calculated under the condition that the camera captures 10 times per day (9 times during the day and 1 time at night)
* C1/C: 80 days
* C0: 22 days
