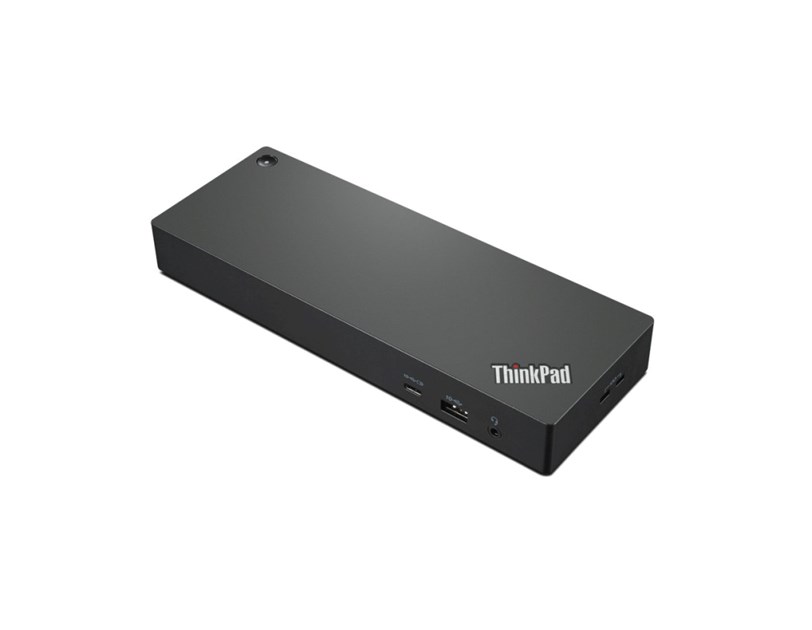

Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135EU)

- The ThinkPad Universal Thunderbolt 4 Dock (40B0) is engineered to expand into new horizons. Bringing forth the next generation of Intel Thunderbolt technology, packed with game-changing features like support for 8K @ 30 Hz display, Intel vPro functionality support (*1), smart remote manageability, and dynamic power charging up to 100W. The ThinkPad Universal Thunderbolt 4 Dock truly is the pinnacle of premium docking.

Features
- One Cable. All Your Needs: A single Thunderbolt cable is all you need to take your productivity to new heights. Adding an 8K @ 30 Hz display or up to four 4K @ 60 Hz displays, lightning-fast 40 Gbps transfer speeds, vPro pass-through support, and enhanced dynamic power charging up to 100W. You can do it all with the ThinkPad Universal Thunderbolt 4 Dock.

- Compatibility. Made Limitless: Freedom is the key to productivity. That’s why we’ve engineered the ThinkPad Thunderbolt 4 Dock to be limitlessly adaptable supporting up to 100W PD and unrivaled performance on all Thunderbolt 3 and 4, USB 4, and USB-C Windows-based systems (*2).

- Remote Management. But Smarter: Remote dock management just got a whole lot smarter. Thanks to Lenovo Dock Manager and our latest hardware, firmware updates can be done without any end-user interruption, which means productivity is never compromised.

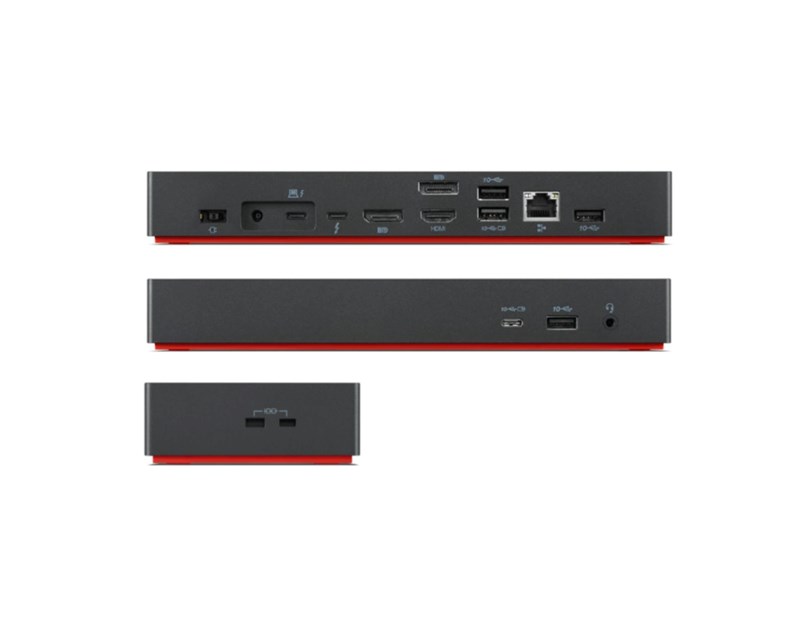

Specifications
- Thunderbolt Port:
* One Thunderbolt Port - for Host connect
* One Thunderbolt Port - for Device connect
- Video Ports:
* One HDMI 2.1
* Two DisplayPort 1.4
- USB Ports:
* Four USB
* One USB-C
- Audio Ports: 3.5mm Audio combo Jack
- Ethernet: Gigabit Ethernet
- Physical Security Feature:
* One NanoSaver lock slot
* One MicroSaver lock slot
- Maximum number of external Monitors: 4
- Charging Port: DC-IN
- Color: Black/Red

Electrical Specifications:
- Input Power: 20V 6.75A
- Power Delivery: Yes
- Output Power: Max 100W
- Power Button: Yes
- Power Plug: Slim Tip

Maximum Resolution Support and Refresh Rate:
- One at: 8K 30Hz Via HDMI 2.1
- Four at: 4K 60 Hz

Operating Environment:
- Minimum Operating Temperature: 0 celsius
- Maximum Operating Temperature: 40 celsius
- Minimum Relative Humidity (%): 5
- Maximum Relative Humidity (%): 95

Dock Measurements:
- Length: 220 mm (8.7 inches)
- Depth: 80 mm (3.1 inches)
- Height: 30 mm (1.2 inches)
- Weight: 0.45Kg (1.0 lb)

Packed Dimensions:
- Length: 270 mm (10.6 inches)
- Depth: 195 mm (7.7 inches)
- Height: 85 mm (3.3 inches)
- Weight: 1.2 Kg (2.6 lb)

Agency Approvals:
- cULus, FCC,ICES,NOM

Compatibility list
- Lenovo ThinkBook 13s G4 IAP 21AR
- Lenovo ThinkBook 13x G2 IAP 21AT
- Lenovo ThinkPad E14 Gen 4 21E3, 21E4
- Lenovo ThinkPad E15 Gen 4 21E6
- Lenovo ThinkPad L13 Yoga Gen 3 21B5, 21B6
- Lenovo ThinkPad L14 Gen 3 21C1, 21C2
- Lenovo ThinkPad L15 Gen 3 21C3
- Lenovo ThinkPad P15v Gen 3 21D8, 21D9
- Lenovo ThinkPad P16s Gen 1 21BU
- Lenovo ThinkPad T14 Gen 3 21AH
- Lenovo ThinkPad T14s Gen 3 21BR, 21BS
- Lenovo ThinkPad T16 Gen 1 21BV
- Lenovo ThinkPad X1 Carbon Gen 10 21CB, 21CC
- Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX
- Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ
- Lenovo ThinkPad X1 Nano Gen 2 21E8, 21E9
- Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0
- Lenovo ThinkPad X1 Yoga Gen 7 21CD, 21CE
- Lenovo ThinkPad X13 Gen 3 21BN
- Lenovo ThinkPad X13 Yoga Gen 3 21AX
