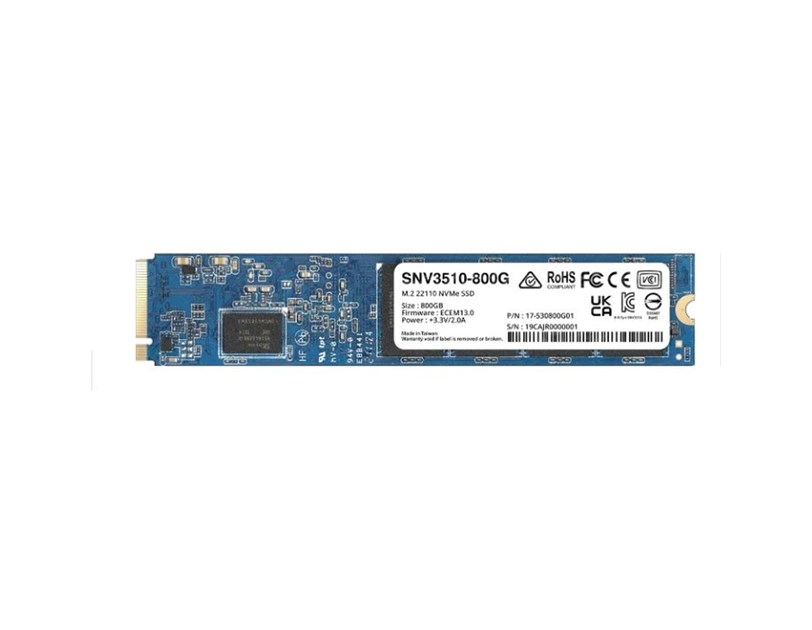

Synology 800GB SSD NVMe M.2 22110 (SNV3510-800G)

Supercharge your NAS/SAN
- Synology SNV3400/3500 Series NVMe SSDs are designed to intelligently work with Synology DiskStation Manager (DSM) to boost I/O performance. These high-performance NVMe drives accelerate the slower but higher-capacity storage space provided by traditional hard drives, enabling cost-effective, in-place upgrades for existing systems.

Performance
- Up to 70,000 4K random write IOPS

Endurance
- Up to 1,022 TBW

Analytics
- Actionable insight for optimal performance and longevity

Updates
- One-click drive firmware updates through DSM

Consistently fast caching for 24/7 environments
- Designed specifically for Synology systems, the SNV3400/3500 Series SSDs are built for maximum performance consistency. Each drive is rated for up to 400,000/70,000 4K random read/write IOPS1 across the usable lifespan of the drive. Endurance of up to 1,022 TBW ensures longevity.

Data integrity safeguards
- Full end-to-end data protection and power loss protection (SNV3500 Series only)5 ensure data integrity and help prevent corruption issues during unexpected shutdown events.

Better analytics
- Synology drives can provide more accurate insights about drive health in Synology DSM, including the workload placed on them over time.

Timely notifications
- Timely notifications of potential issues help you plan ahead to attain consistent system performance and longevity.

Optimal use
- Easy monitoring allows you to make optimal use of each SSD.

One-click firmware upgrades
- Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.

Purpose-built for Synology NAS
- Synology SNV3400/3500 Series drives are thoroughly validated for use in our systems following each engineering change. Each firmware and component is strictly controlled. Intensive I/O stress, power cycling, and temperature stress tests ensure that all products meet our strictest standards for quality and reliability.

Specifications
General
- Capacity: 800 GB
- Form Factor: M.2 2280
- Interface: NVMe PCIe 3.0 x4

Performance

• Sustained Sequential read (128 KB, QD32): 3,100 MB/s

• Sustained Sequential write (128 KB, QD32): 1,000 MB/s

• Sustained Random Read (4KB, QD256): 400,000 IOPS

• Sustained Random Write (4KB, QD256): 70,000 IOPS
- Notes

• All performance measurement were reached in full sustained mode based on the JESD219A enterprise workload, defined by JEDEC Solid State Technology Association.

• Performance specifications refer to SSD performance only. Actual performance may vary depending on the hardware and software configuration of the host system.

Endurance and Reliability

• Terabytes Written (TBW): 1,022 TB
- Power Loss Protection: No
- Warranty: 5 Years
- Notes

• Based on the JESD219A enterprise workload.

• 5-year limited warranty provides coverage until the end of the warranty period or until the endurance usage of the drive has been reached, whichever comes first. (Learn more)

Power Consumption

• Active Read (Typ.): 5.5 W

• Active Write (Typ.): 4.6 W

• Idle: 1.6 W
- Notes

• Power consumption may differ according to configurations and platforms.

Temperature

• Operating Temperature: 0°C to 70°C (32°F to 158°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
