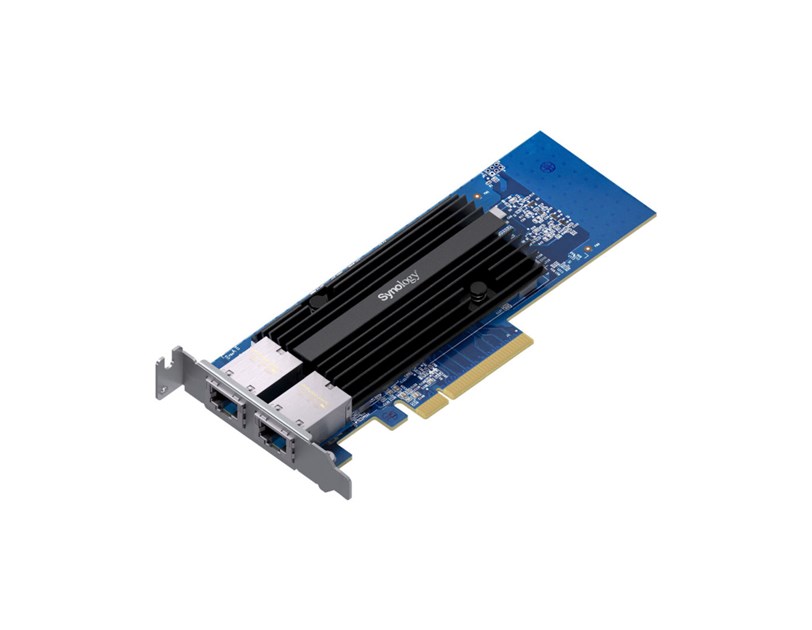

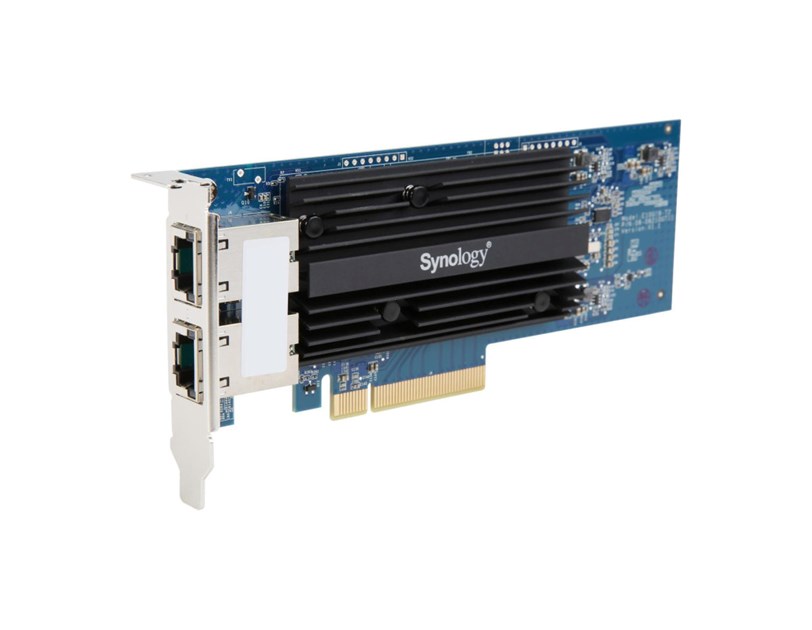

Synology E10G30-T2, dual-port 10GbE RJ45 mrežni adapter

Throughput
- Increase network performance with 10GbE connectivity

Flexibility
- Easy integration to existing deployments

Compatibility
- Designed for maximum performance and reliability in Synology systems

Specifications
Hardware Specifications
- Host Bus Interface: PCIe 3.0 x8
- Bracket Height: Low Profile and Full Height
- Size (Height x Width x Depth): 68.9 mm x 167.7 mm x 14.7 mm
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-5°F to 140°F)
- Relative Humidity: 5% to 95% RH

Network
- IEEE Specification Compliance

• IEEE 802.3x Flow Control
- IEEE 802.3ad Link Aggregation
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3an 10Gbps Ethernet
- Data Transfer Rates: 10 Gbps/1 Gbps
- Supported Features

• TCP Segmentation Offload (TSO)

• Receive Side Scaling (RSS)

• Generic Segmentation Offload (GSO)

• 1.5 - 9 KB Jumbo Frame

• TCP/UDP Checksum Offload

• Transmit side scaling (TSS)

• SR-IOV

• Large receive offload (LRO)

Compatibility
- Applied Models

• FS series:FS6400, FS3600, FS3410, FS3400, FS2500

• HD series:HD6500

• SA series:SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D

• UC series:UC3400, UC3200

• 23 series:RS2423RP+, RS2423+, DS1823xs+

• 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+

• 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+

• 20 series:RS820RP+, RS820+

• 19 series:RS1619xs+, DS2419+II, DS2419+, DS1819+

• 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+

• 17 series:DS3617xs
