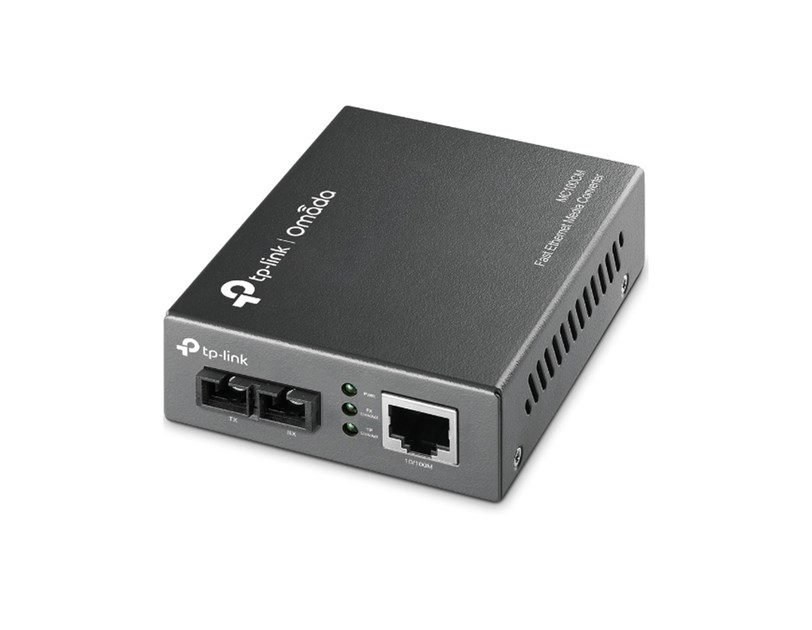

TP-Link 100M optički pretvarač, 10/100M RJ45 u 100M multi-mod SC, Full-duplex, do 2km
20241106T13_55_57Z.png)
-
Šifra artiklaMC100CM
-
Kataloški brojMC100CM
-
Jamstvo36 mjeseci
{{CurrentProduct.SinglePriceToPay_print}}
WHAT THIS PRODUCT DOES
- The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa
- Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector
- The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data
- Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode
- The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 2km
Specifications
MEDIA CONVERTER & MODULE
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Basic Function:
* Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
* Full Duplex Flow Control (IEEE 802.3x)
* Half Duplex Flow Control (Backpressure)
* Extends fiber distance up to 2km
- Ports:
* 1× 100M SC/UPC port
* 1× 10/100M RJ45 port (Auto MDI/MDIX)
- Wave Length: 1310nm
- Network Media 10BASE-T:
* UTP category 3, 4, 5 cable (max. 100m)
* EIA/TIA-568 100Ohm STP (max. 100m)
- Network Media 100BASE-T:
* UTP category 5, 5e cable (max. 100m)
* EIA/TIA-568 100Ohm STP (max. 100m)
- Network Media 100BASE-FX: Multi-mode Fiber
- LED Indicators: Power, Link/Act
- Dimensions (W×D×H): 94.5×73.0×27.0 mm
- Power Supply: External power supply
- Max Power Consumption: 2.4W
- Safety & Emission: FCC, CE, RoHS
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa
- Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector
- The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data
- Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode
- The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers
Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 2km
Specifications
MEDIA CONVERTER & MODULE
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Basic Function:
* Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
* Full Duplex Flow Control (IEEE 802.3x)
* Half Duplex Flow Control (Backpressure)
* Extends fiber distance up to 2km
- Ports:
* 1× 100M SC/UPC port
* 1× 10/100M RJ45 port (Auto MDI/MDIX)
- Wave Length: 1310nm
- Network Media 10BASE-T:
* UTP category 3, 4, 5 cable (max. 100m)
* EIA/TIA-568 100Ohm STP (max. 100m)
- Network Media 100BASE-T:
* UTP category 5, 5e cable (max. 100m)
* EIA/TIA-568 100Ohm STP (max. 100m)
- Network Media 100BASE-FX: Multi-mode Fiber
- LED Indicators: Power, Link/Act
- Dimensions (W×D×H): 94.5×73.0×27.0 mm
- Power Supply: External power supply
- Max Power Consumption: 2.4W
- Safety & Emission: FCC, CE, RoHS
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Masa
- 0,4223
