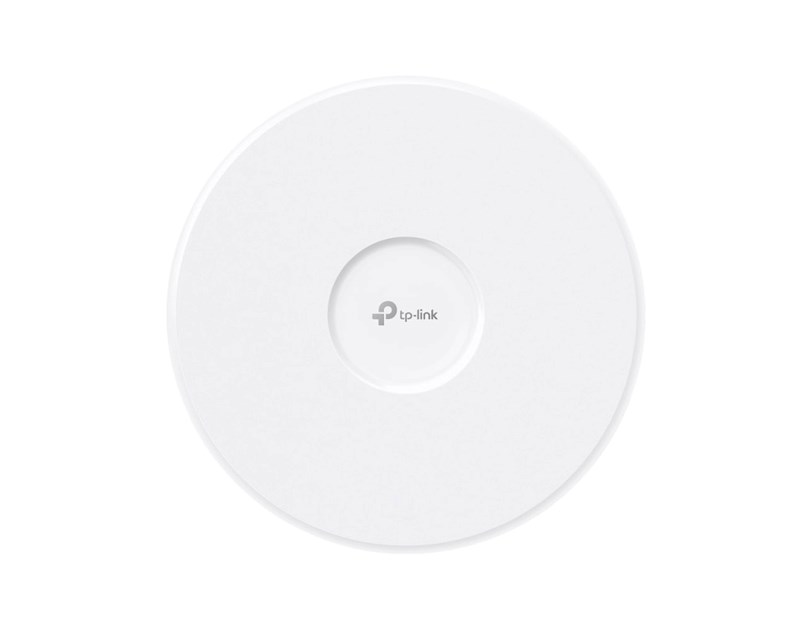

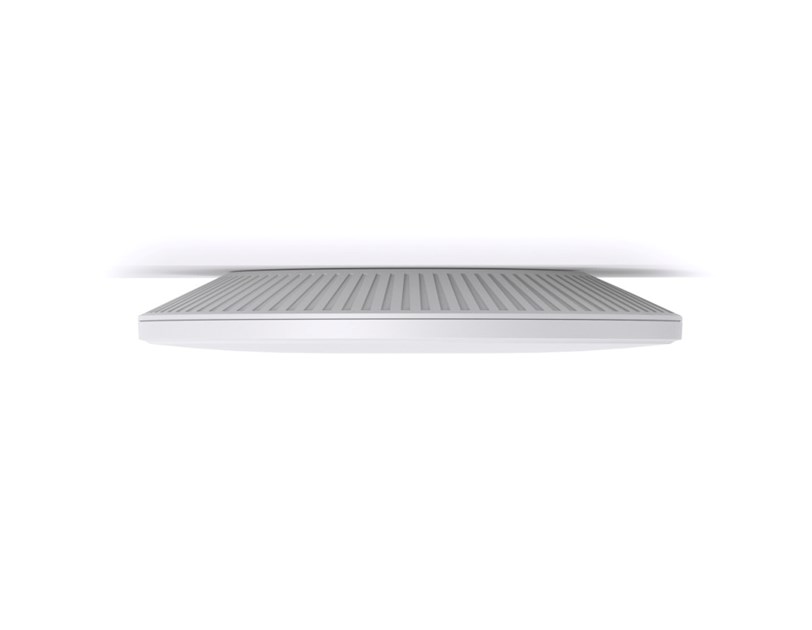

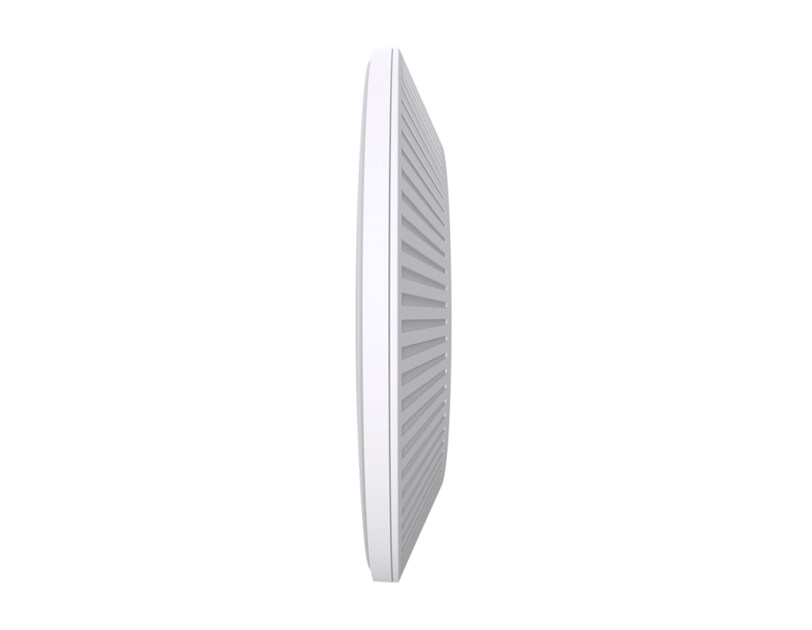

TP-Link BE11000 bežična pristupna točka zidna/stropna, Tri-Band Wi-Fi 7 (AP) 574Mbps/4320Mbps/5760 Mbps(2.4GHz/5GHz/6GHz) 802.11 a/b/g/n/ac/ax/be, 1×G-LAN, Omada App

BE11000 Tri-Band Wi-Fi 7:
- 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.

1× 10G Port:
- Unlock the full potential of Wi-Fi 7.

Clear 6 GHz Band:
- Brings cleaner and wider band resources to your Wi-Fi.

320 MHz Bandwidth:
- Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.

Low Latency and Interference:
- Multi-Link Operation, and Multi-RUs ensure high performance of your network.

Advanced Functions:
- Supports centralized management, mesh, and AI roaming.

Specifications
HARDWARE FEATURES

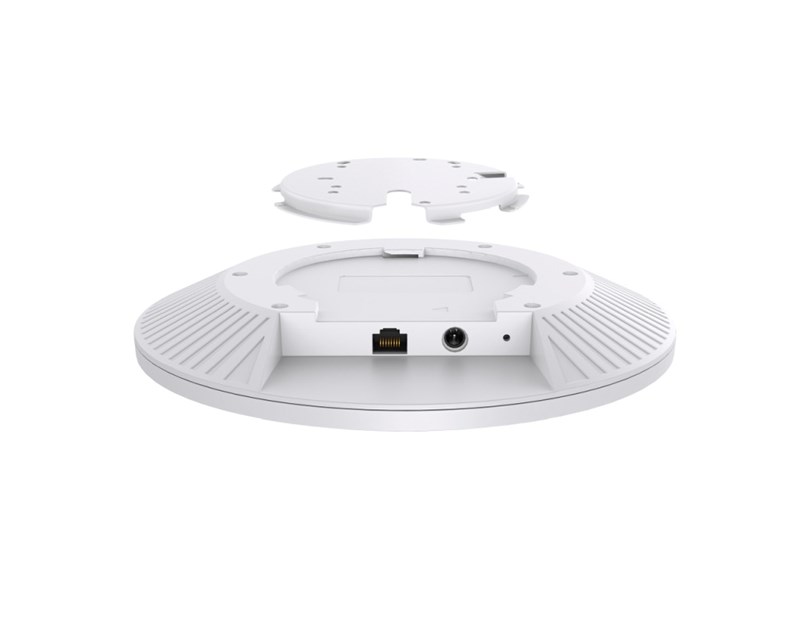

- Interface: 1× 10G Ethernet Port
- Button: Reset
- Power Supply: 802.3at PoE or 12V/2.5A DC
- Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.
- Power Consumption

• 25.44 W (For PoE)

• 22.57 W (For DC)
- Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
- Antenna Type

• 2.4 GHz: 2× 4.0 dBi

• 5 GHz: 2× 5.0 dBi

• 6 GHz: 2× 5.0 dBi
- Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
- Mounting: Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES
- Coverage: 140?(1500 ft2)
- Concurrent Clients: 380+
- Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
- Frequency: 6 GHz, 5 GHz, and 2.4 GHz
- Signal Rate: 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
- Wireless Functions

• MLO

• 4K-QAM

• Seamless Roaming(802.11k/v/r)

• MU-MIMO (2*2 DL/UL MU-MIMO)

• HE320

• Mesh

• BSS Coloring

• OFDMA

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:24(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication
- Wireless Security

• Captive Portal Authentication

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power
< 25 dBm (2.4 GHz)
< 25 dBm (5 GHz )
< 23 dBm (6 GHz)

MANAGEMENT
- Omada App: Yes
- Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller
- Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Yes
- Web-based Management: Yes

OTHERS
- Certification: CE, FCC, RoHS, IC

Package Contents

• EAP773

• Installation Guide

• Ceiling/Wall Mounting Kits
- Note: Power Adapter is NOT included.

Environment

• Operating Temperature: 0 C–40 C (32 F–104 F)

• Storage Temperature: -40 C–70 C (-40 F–158 F)

• Operating Humidity: 10%–90% non-condensing

• Storage Humidity: 5%–90% non-condensing
