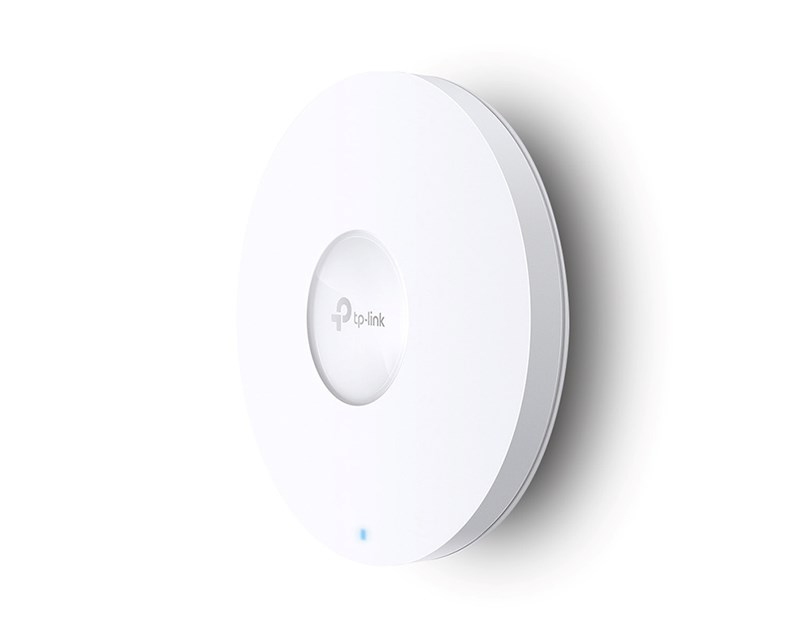

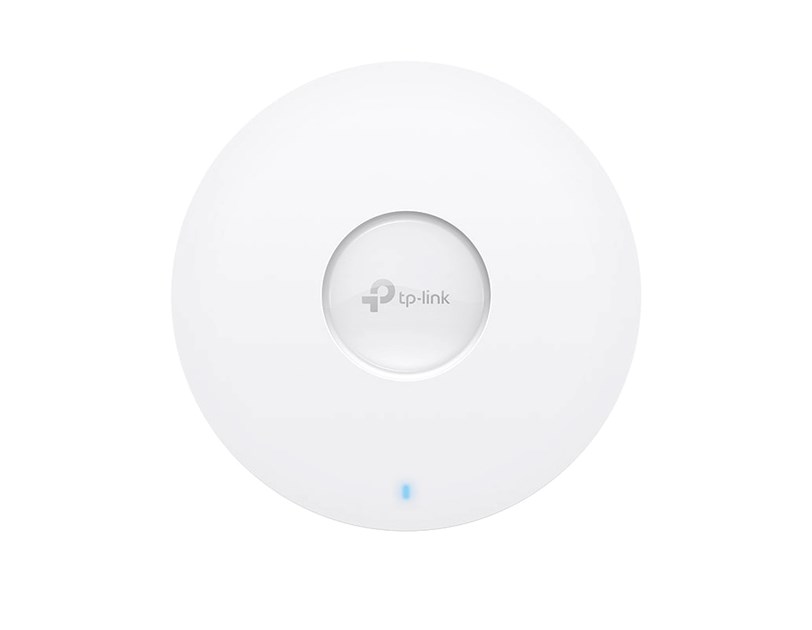

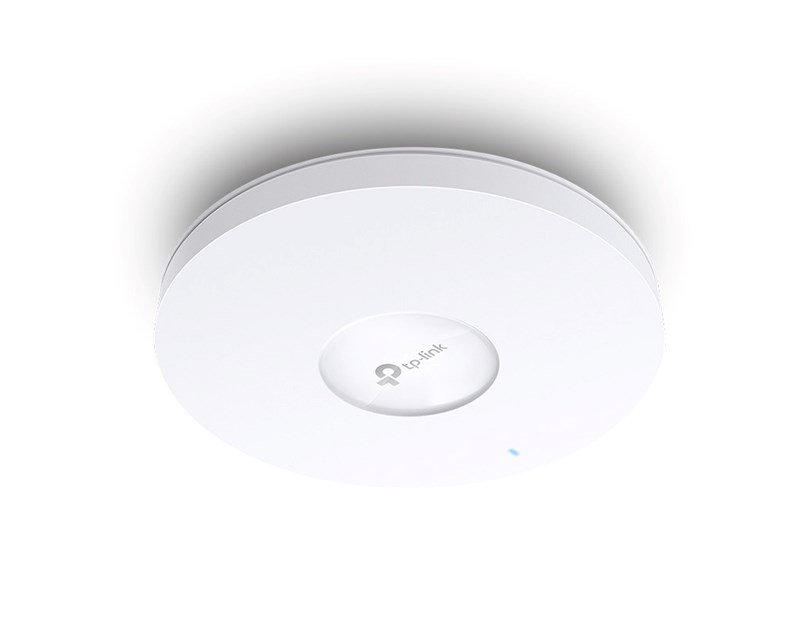

TP-Link Omada AX3000 bežična pristupna točka stropna Dual-Band Wi-Fi 6 (AP) 574Mbps/2402Mbps (2.4GHz/5GHz), 802.11ax/ac/n/g/b/a, 1×1GbE, 802.3at PoE, 2×interna antena

Ultra-Fast WiFi 6 Speeds:
- Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

High-Efficiency WiFi 6:
- More connected devices can enjoy faster speeds.

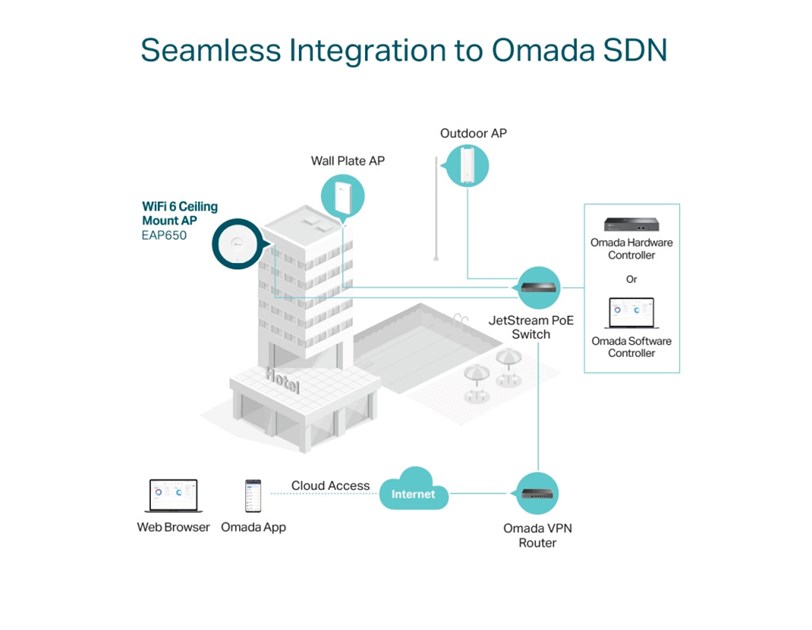

Centralized Cloud Management:
- Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel:
- Double the data at peak transmission times on a single stream with HE160.

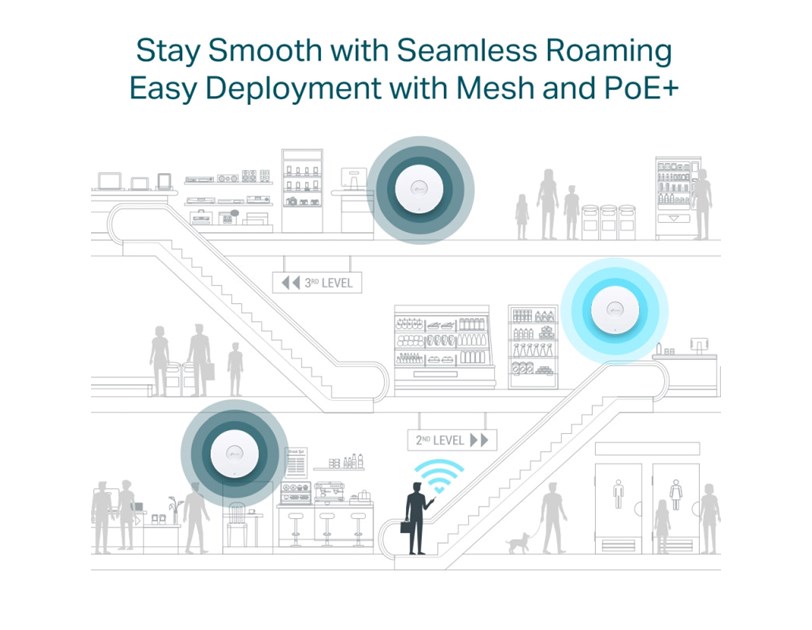

Seamless Roaming:
- Video streams and voice calls are unaffected as users move between locations.

Omada Mesh:
- Enables wireless connectivity between access points for extended range and flexible deployment.

PoE+ Powered:
- Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

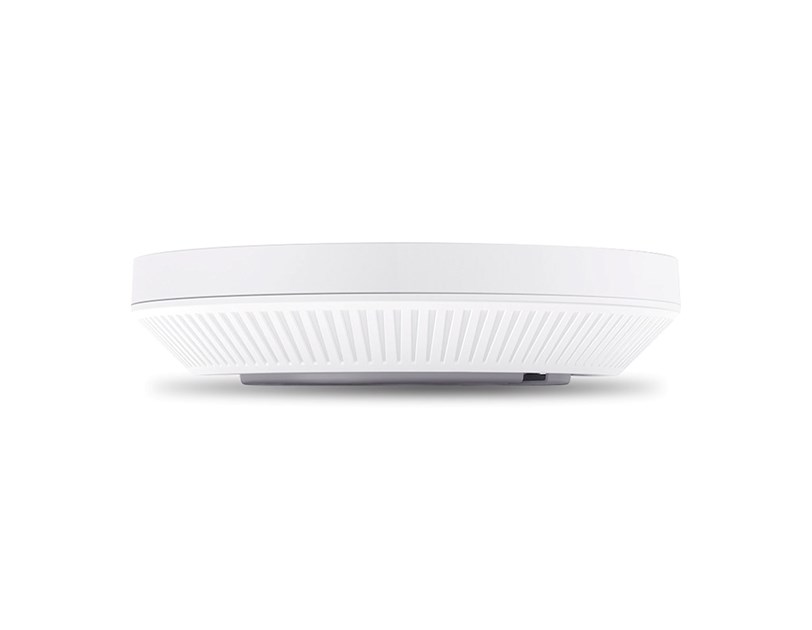

Ultra-Slim Design:
- 160 mm × 33.6 mm elegant design brings more agility.

Specifications
HARDWARE FEATURES

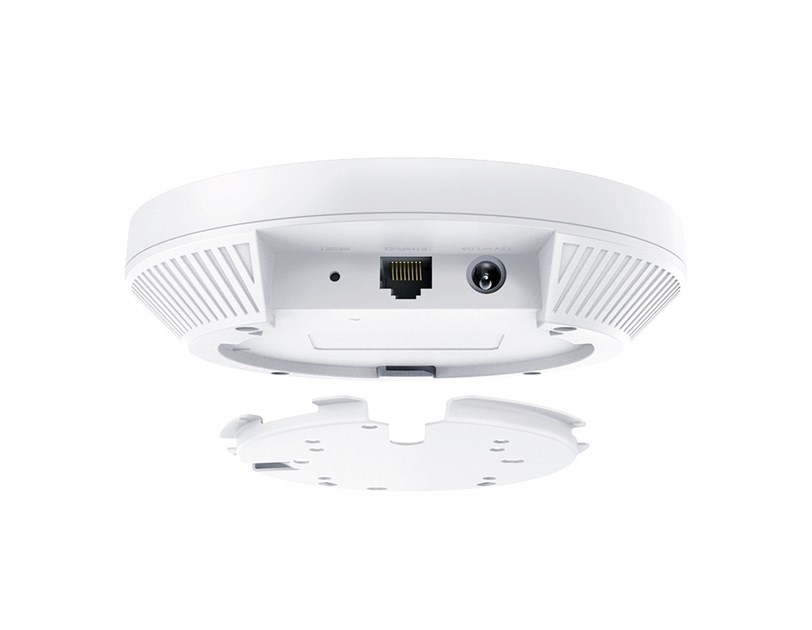

- Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Button: Reset
- Power Supply

• 802.3at PoE

• 12V DC (Power Adapter included) (12 V / 1.0 A DC)

• 48V Passive PoE
- Power Consumption: 13.5 W
- Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
- Antenna Type: Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi
- Bluetooth: Yes

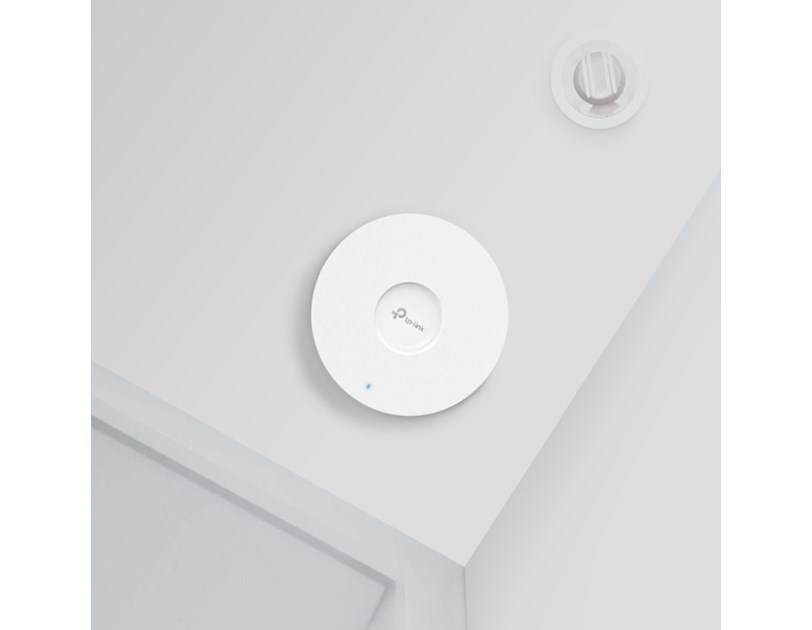

- Mounting

• Ceiling /Wall Mounting (Kits included)

• Junction Box Mounting

WIRELESS FEATURES
- Coverage: 140?(1500 ft2)
- Wireless Client Capacity: 250+
- Concurrent Clients: 250+
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps
- Wireless Functions

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• HE160 (160 MHz Bandwidth)‡

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client
- Wireless Security

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

MANAGEMENT
- Omada App: Yes
- Centralized Management

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller
- Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents

• EAP650

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
- Environment

• Operating Temperature: 0–40 ? (32–104 ?)

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing
