TP-Link Omada bežična pristupna točka vanjska (AP) 1km, 867Mbps (5GHz), IEEE 802.11 a/b/g/n/ac, podrška za Pasive PoE, 3×LAN, 2×2 11.0 dBi usmjeriva antena

- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
- Ideal for long-range wireless transmission up to 1 km.
- Auto-pairing and agile LEDs for efficient deployment.
- 3× Gigabit Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).

Specifications
HARDWARE FEATURES

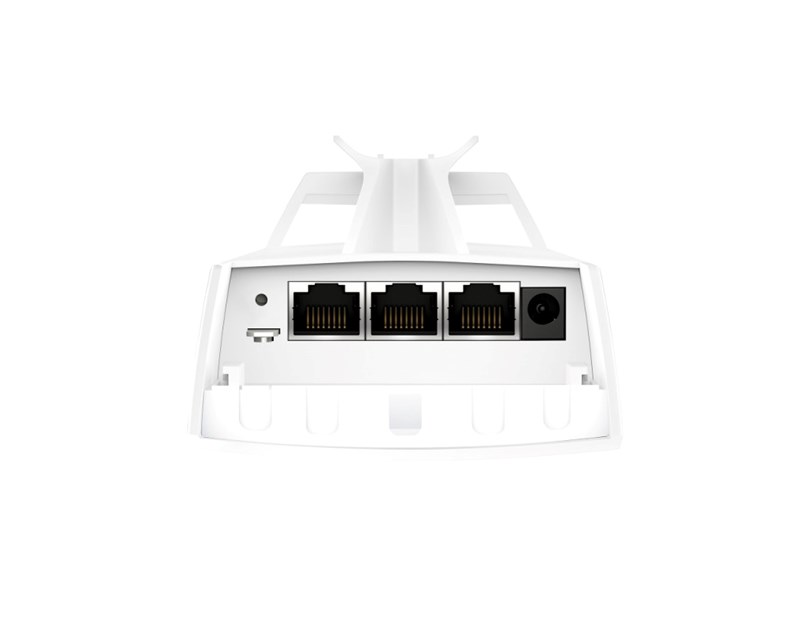

- Interface: 3x Gigabit Ethernet Ports
- Button: Reset
- Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
- Power Consumption: 11.5W

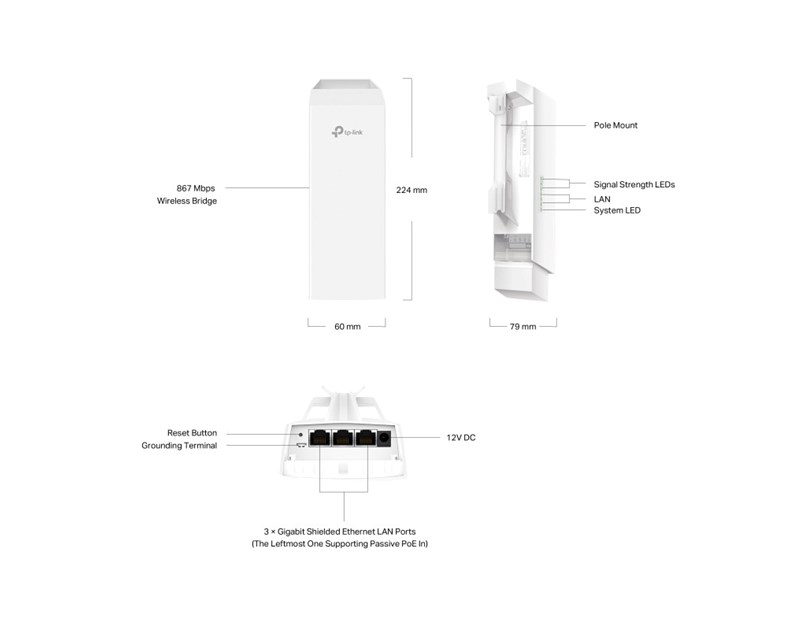

- Dimensions ( W x D x H ): 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
- Antenna Type
- Internal

• 2×2 Dual-polarized directional MIMO antennas

• 5 GHz: 7.0 dBi
- Weatherproof Enclosure: IP65
- Mounting: Pole Mounting (Accessories included)

WIRELESS FEATURES
- Coverage: 1000m(3280ft)5
- Wireless Standards: IEEE 802.11 a/n/ac
- Frequency: 5 GHz
- Signal Rate: 5 GHz: Up to 867 Mbps
- Wireless Functions

• Mesh*4

• MU-MIMO: 5G 2x2 MU-MIMO DL

• Load Balance

• Beamforming

• Airtime Fairness

• Multiple SSIDs:8

• Wireless Statistics

• Wireless Schedule

• Reboot Schedule

• RADIUS Accounting

• MAC Authentication

• Static IP/Dynamic IP
- Wireless Security

• VLAN

• Access Control

• Rogue AP Detection

• Captive Portal Authentication*4

• Maximum number of MAC Filter: 4,000

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
- Transmission Power

• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);


• FCC:
<22dBm (5 GHz band1/4)

MANAGEMENT
- Omada App: Yes
- Restore & Backup: Yes
- Firmware update via Web: Yes
- NTP: Yes
- Centralized Management

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller
- Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
- LED ON/OFF Control Yes
- Management MAC Access Control Yes
- SNMP v1, v2c, v3
- SSH Yes
- Web-based Management Yes

OTHERS
- Certification: CE, FCC, RoHS

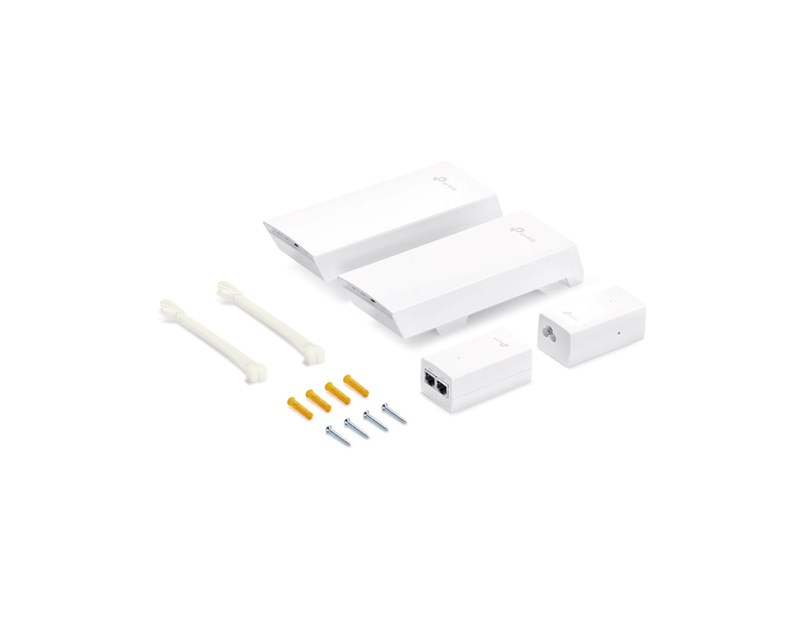

- Package Contents

• EAP211-Bridge KIT

• Passive PoE Adapter

• Power Cord

• Installation Guide

• Mounting Kit
- Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing
