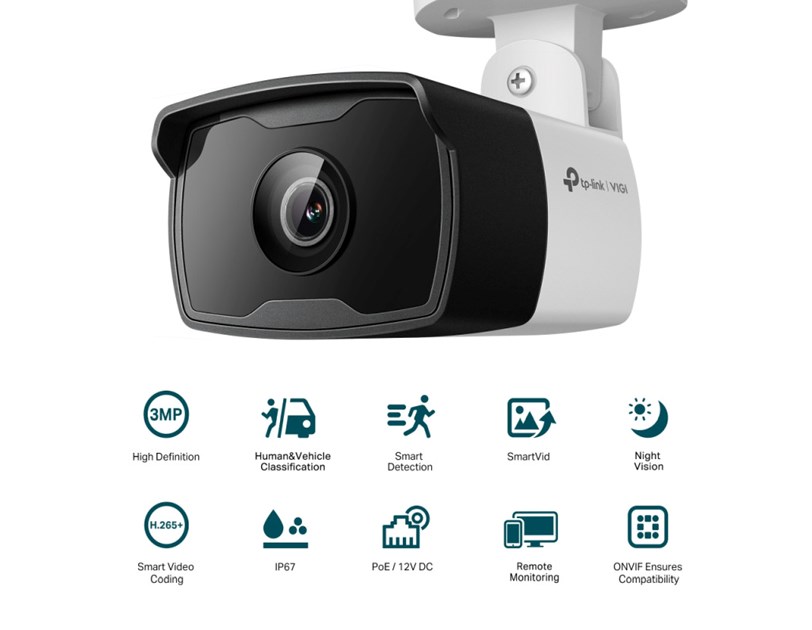

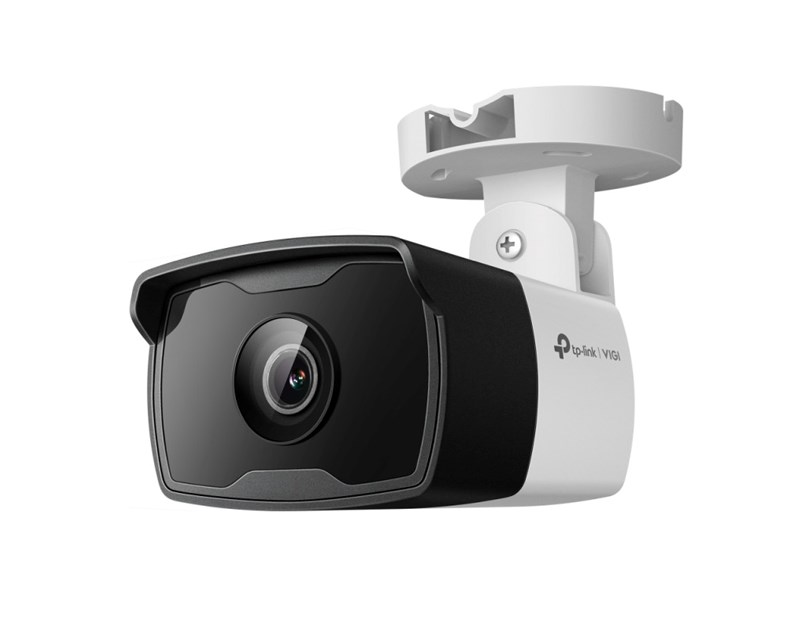

TP-Link vanjska IP Bullet 3MP (2304 × 1296) H.265+ video, 3MP,6 mm leća, RJ45,Night Vision, detekcija pokreta, vodootporna IP67, VIGI App

3MP Super-High Definition:
- The VIGI C330I camera comes with 3MP — more than enough pixels to pick up some of the more discrete details.

Human & Vehicle Classification:
- Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:
- Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

Smart Video Enhancement:
- VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

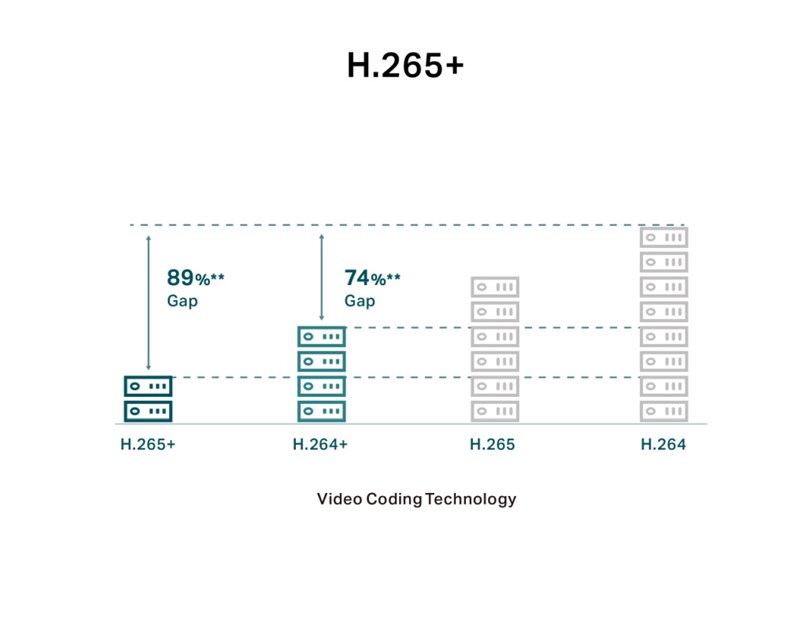

H.265+:
- Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

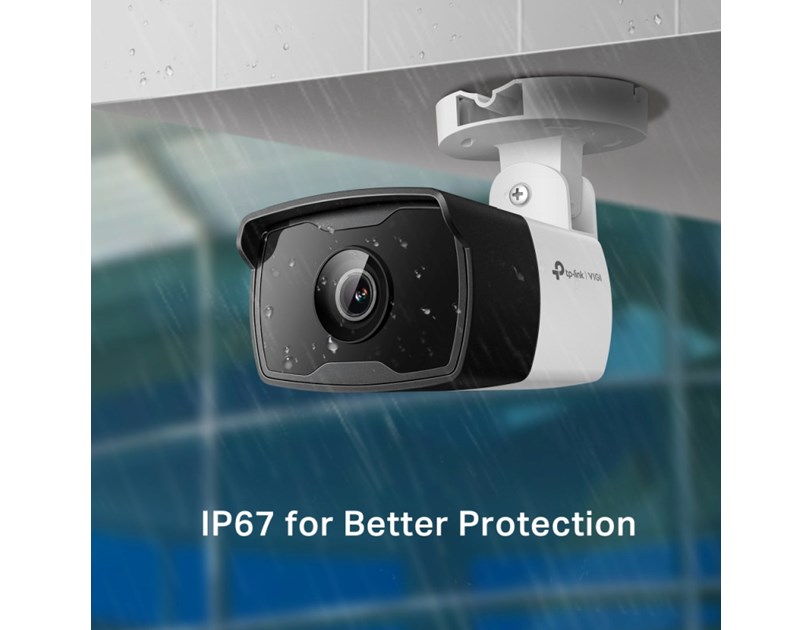

Waterproof:
- Reliable IP67 for stable outdoor performance.

PoE/12V DC:
- Two types of power supply not only give you more convenience but also make your wiring remarkably easy.

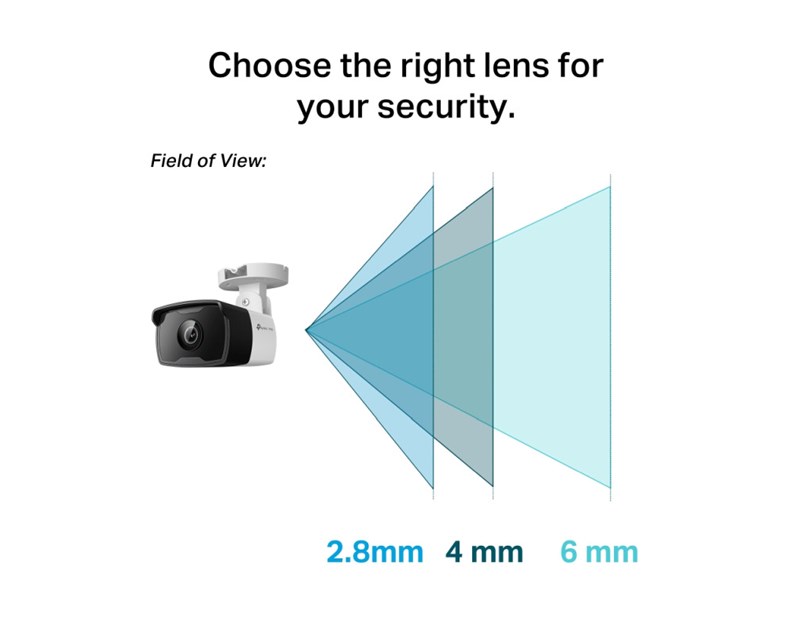

2.8/4/6 mm Lens:
- Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C330I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Specifications
CAMERA
- Image Sensor: 1/2.8” Progressive Scan CMOS
- Lens: 2.8 mm/ 4 mm/ 6 mm
- Day/Night Switch: Day/Night/Auto/Schedule-Switch
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
- Weatherproof Rating: IP67
- IR Working Distance: 30m
- Shutter Speed: 1/3 to 1/10000 s
- Aperture

• 2.8 mm: F2.2

• 4 mm: F2.0

• 6 mm: F2.0
- Lens Mount: M12
- Viewing Angle: 2.8 mm, Diagonal FOV: 117.9°
- 4 mm, Diagonal FOV: 98°
- 6 mm, Diagonal FOV: 60°
- Slow Shutter: Yes
- Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
- Day/Night Mechanism: IR Cut Filter

NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: ONVIF
- Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
- Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
- Web Browser

• Google Chrome 57 and above

• Firefox 52 and above

• Safari 11 and above

• Microsoft Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Network Storage: NAS (NFS, SMB/ CIFS)

GENERAL
- Operating Temperature: -30–60 °C
- Storage Temperature: -40–60 °C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Dimensions( H X W X D ): 174 × 74 × 71 mm
- Material: Plastic
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Power Requirements:

• 12V DC ± 5%, 5.5mm Coaxial Power Plug

• PoE (802.3af/at, class 0)
- Net Weight: 0.2 Kg
- Gross Weight: 0.35 Kg
- Power Consumption: 12V DC: Max 5W
- PoE: Class 0
- Power Supply

•12V DC ± 5%, 5.5mm Coaxial Power Plug

• PoE (802.3af/at, class 0)
Protection: IP67
Product Dimensions (L x W x H): 174 × 74 × 71 mm
Certifications: CE/BSMI/VCCI/ONVIF

INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Alarm: N/A
- Reset Button: N/A
- Power: DC Power Port
- Button: N/A
- Video Output: N/A
- On-board Storage: N/A
- Built-in Microphone: N/A
- Built-in Speaker: N/A
- Audio: N/A

ALARM AND EVENT MANAGEMENT
- Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
- Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
- Alarm Linkage: Message Push
- Linkage Method: N/A
- Output Notification: Message Push

VIDEO/IMAGE
- Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264
- Frame Rate & Resolutions

• Main Stream:

• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
- Sub-Stream:

• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 704x576, 640x480, 352x288, 320x240
- Max. Resolution: 3MP (2304 × 1296)
- Video Streaming

• Main Stream

• Sub-Stream
- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Video Bit Rate: 64 Kbps to 4 Mbps
- Day/Night Switch: Day/Night/Auto/Schedule

SMART FEATURE-SET
- Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection
- Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region

AUDIO
- Audio Communication: N/A
- Audio Input: N/A
- Audio Output: N/A
- Audio Compression: N/A
- Audio Sampling Rate: N/A
- Environment Noise Filtering: N/A
- Audio Bit Rate: N/A

ILLUMINATOR
- IR LED

• Quantity: 2

• Range: 30m

• Wavelength: 850nm
- White LED: N/A
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

LENS
- Type: Fixed Focal Lens
- Focal Length: 2.8 mm/4 mm/6 mm
- Aperture

• 2.8mm: F2.2

• 4mm: F2.0

• 6mm: F2.0

FOV
- 2.8 mm:

• Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°
- 4 mm:

• Horizontal FOV: 82.5°, Vertical FOV: 44.9°, Diagonal FOV: 99.3°
- 6 mm:

• Horizontal FOV: 51.9°, Vertical FOV: 28.7°, Diagonal FOV: 60°
- Lens Mount: M12

DORI Distance
- 2.8 mm:

• Detect: 49 m (161 ft)

• Observe: 20 m (67 ft)

• Recognize: 10 m (32 ft)

• Identify: 5 m (16 ft)

- 4 mm:

• Detect: 65 m (214 ft)

• Observe: 27 m (89 ft)

• Recognize: 13 m (43 ft)

• Identify: 7 m (21 ft)

- 6 mm:

• Detect: 98 m (321 ft)

• Observe: 41 m (134 ft)

• Recognize: 20 m (64 ft)

• Identify: 10 m (32 ft)

ANGLE ADJUSTMENT (MANUAL)
- Range: Pan: -90° to 90°
- Tilt: -90° to 90°

VIDEO
- Max. Resolution: 2304 × 1296

Main Stream
- Frame Rate:

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
* If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream
- Frame Rate:

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 704x576, 640x480, 352x288, 320x240
* If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

- Bit Rate Control: CBR, VBR
- Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264

- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: DWDR
- SNR: ? 52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes

Package Contents:
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
