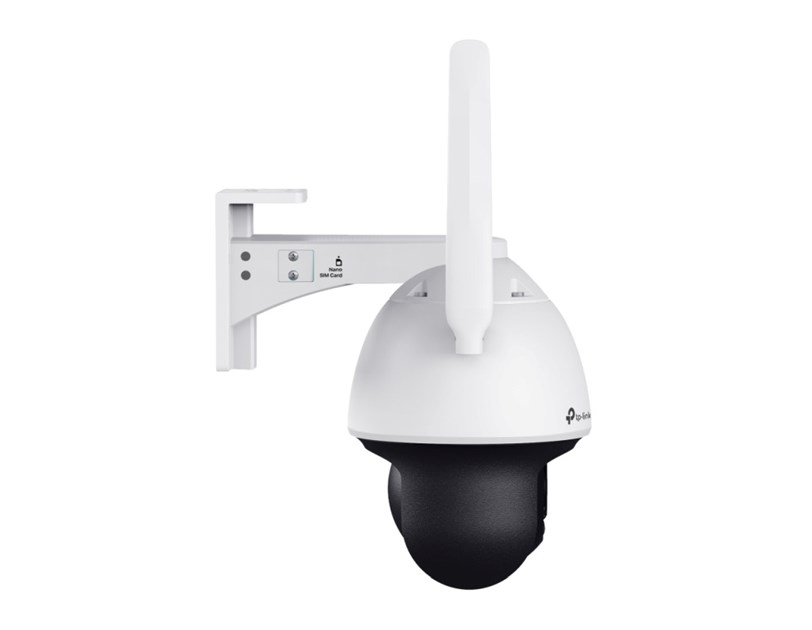

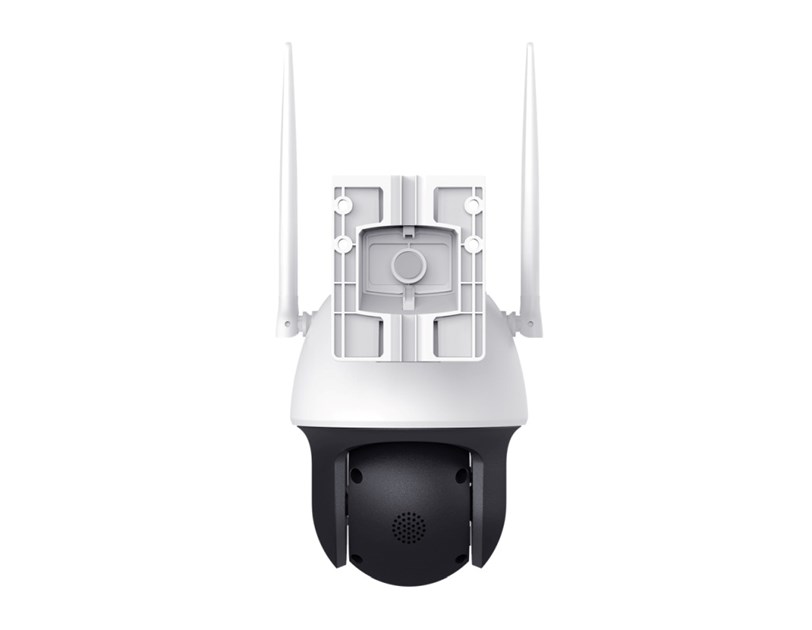

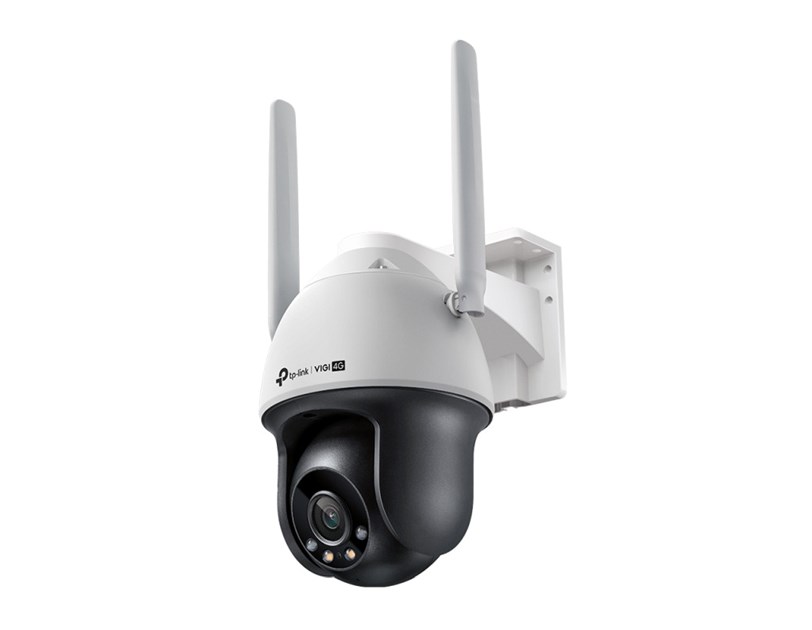

TP-Link VIGI C540-4G Full-Color kamera 2K 4MP Pan/Tilt, H.265+, Night vision, microSD, dvosmjerni audio, detekcija pokreta, vodootporna IP66, VIGI app

4MP Super-High Definition:
- The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.

24h Full-Color:
- Experience clear, vibrant 24-hour monitoring, even in total darkness.

4G Mobile Networking:
- Enjoy hassle-free installation and simple monitoring in places where the internet is not available.

360° Monitoring:
- Cover every corner and eliminate blind spots.

Human & Vehicle Classification:
- Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.

Smart Detection:
- Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.

Automatic Tracking:
- Automatically tracks persons or vehicles of interest and provides seamless and longer video.

Active Defense:
- Warn potential intruders instantly with sound and light when abnormal events.

Two-Way Audio:
- With voice intercom support, carry two-way conversations while watching your feed from anywhere.

H.265+:
- Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

IP66 Waterproof:
- Reliable IP66 for stable outdoor performance.

Remote Management:
- Take full control over your security anytime and anywhere on the VIGI app or PC client.

Onboard Storage:
- Support on-board storage up to 256 GB (SD card slot).

Specifications
CAMERA
- Image Sensor: 1/3.06” Progressive Scan CMOS
- Shutter Speed: 1/3 to 1/10000 s
- Slow Shutter: Yes
- Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
- Day/Night Mechanism: IR Cut Filter
- Day/Night Switch: Unified/ Scheduled/ Auto

LENS
- Type: Fixed Focal Lens
- Focal Length: 4 mm
- Aperture: F1.6
- FOV: Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
- Lens Mount: M12*0.5
- DORI Distance: Detect: 80 m (262 ft)
- Observe: 33 m (109 ft)
- Recognize: 16 m (52 ft)
- Identify: 8 m (26 ft)

PTZ
- Pan/tilt Range: Pan: 0° to 348°, Tilt: 0° to 120°
- Pan/tilt Speed

• Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s

• Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
- Manual Control Speed: Configurable from 8° to 35°/s
- Presets: 300
- Patrol Scan: 8 patrols, up to 8 presets for each patrol
- Power-off Memory: Yes. Auto restore to previous PTZ and lens status after power failure
- Park Action: Yes. Preset; Patrol Scan
- 3D Positioning: Yes

Angle Adjustment (Manual)
- Range

• Pan: 0° to 348°

• Tilt: 0° to 120°

ILLUMINATOR
- IR LED

• Quantity: 2

• Range: 30m;

• Wavelength: 850nm
- White LED

• Quantity: 2

• Range: 30m
- Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO
- Max. Resolution 2560 X 1440
- Main Stream

• Frame Rate:

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
- Sub-Stream

• Frame Rate:

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution: 640x480, 352x288, 320x240
- Bit Rate Control: CBR, VBR
- Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264
- H.264 Type: Main Profile/High Profile
- H.264+: Main Stream Supported
- H.265 Type: Main Profile
- H.265+: Main Stream Supported
- Video Bit Rate

• Main Stream: 256 Kbps to 3 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps

- Image Settings

• Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure, WDR,

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software

• Rotation (90°/270°)
- Image Enhancement: BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range: DWDR
- SNR: ? 52 dB
- Image Parameters Switch: Yes
- Privacy Mask: Up to 4 Masks
- ROI: 1 Region
- OSD Setting: Yes

AUDIO
- Audio Communication: Two-Way Audio
- Audio Input: Yes
- Audio Output: Yes
- Audio Compression: Yes
- Audio Sampling Rate: 8KHz
- Environment Noise Filtering: Yes
- Audio Bit Rate: 64 Kbps(G.711 alaw)

NETWORK
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- ONVIF: Yes
- API: ONVIF
- Simultaneous Live View: 2 Main Streams & 2 Sub-Streams
- Client: VIGI App, VIGI Security Manager, Web UI
- Web Browser:

• Google Chrome 57 and above

• Firefox® 52 and above

• Safari® 11 and above

• Microsoft® Edge 91 and above
- Cloud: Yes
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G
- Standard: LTE-TDD/LTE-FDD/WCDMA
- SIM Type: Nano SIM
- Category: 4
- Frequency: LTE-FDD: B 1/3/5/7/8/20/28
- LTE-TDD: B 38/40/41
- WCDMA: B 1/5/8

ALARM AND EVENT MANAGEMENT
- Smart Event

• Human & Vehicle Classification

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned Detection

• Object Removal Detection

• People Detection

• Vehicle Detection
- Basic Event

• Motion Detection

• Video Tampering Detection

• Exception (Illegal Login)
- Alarm Linkage

• Memory Card Video Recording

• Message Push

• Audible Warning

• White Light Flashing
- Linkage Method: N/A
- Output Notification: Message Push

INTERFACES
- Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Alarm: N/A
- Reset Button: Yes
- Power: DC Power Port
- On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

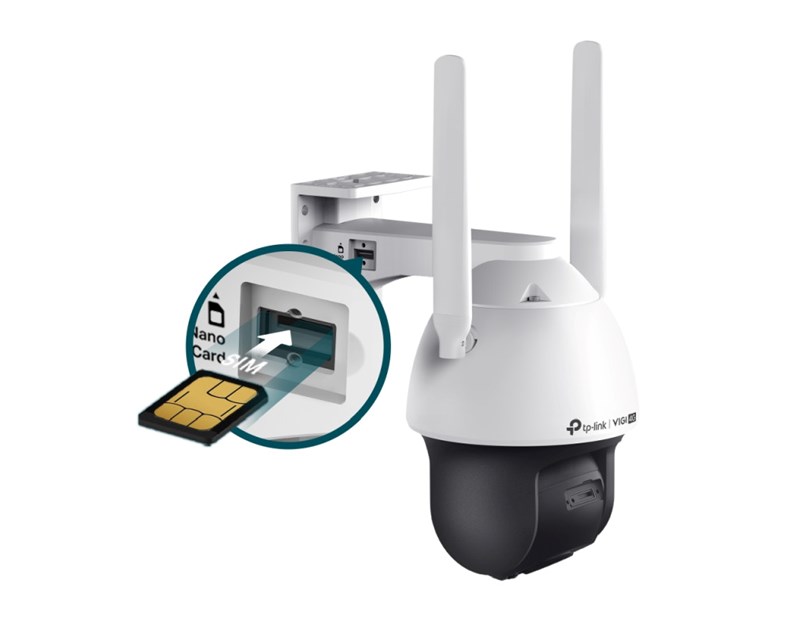

- Built-in Nano-SIM Card Slot: Yes
- Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
- Built-in Speaker: Yes
- Audio: N/A

GENERAL
- Operating Temperature: -30–60 °C
- Storage Temperature: -40–60 °C
- Operating Humidity: 95% or Less (Non-Condensing)
- Storage Humidity: 95% or Less (Non-Condensing)
- Package Contents

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories

• Power Adapter
- Material: Plastic
- Net Weight: 0.69 Kg
- Gross Weight: 1.16 Kg
- Power Supply: 12V DC/1A, 5.5mm Coaxial Power Plug
- Antenna

• Quantity: 2

• Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna

• Gain:

• Ant1:0.84dBi 690~960MHz, 2.85dBi 1710~2690MHz

• Ant2:0.74dBi 690~960MHz, 3.06dBi 1710~2690MHz
- Protection: IP66
- Product Dimensions (L x W x H): 120 × 182 × 201 mm (excluding antennas)
- Certifications: CE, RCM, BSMI, RoHS, NCC
