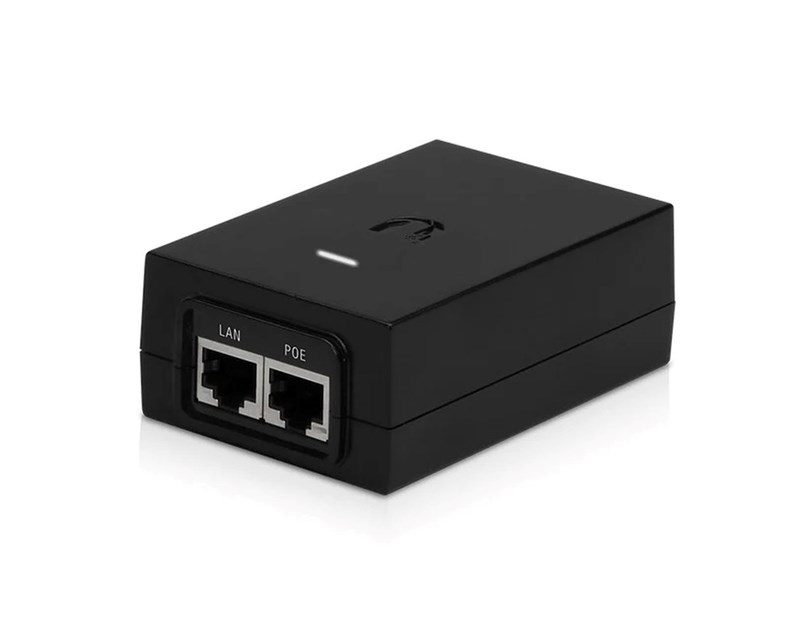

Ubiquiti PoE adapter 48-24W-G
20241108T13_20_12Z.png)
-
Šifra artikla38714
-
Kataloški brojPOE-48-24W-G
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}
- Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
* Surge protection
* Clamping protection
* Maximum surge discharge
* Peak pulse current
* AC cable with earth ground
Specifications
- Output Voltage: 48VDC @ 0.5A
- LAN Activity Indicator: No
- Gigabit LAN Port: Yes
- Remote Reset Capability: No
- Reset Button: No
- Input Voltage: 90-260VAC @ 47-63 Hz
- Input Current:
* 0.6A @ 120VAC
* 0.4A @ 240VAC
- Inrush Current:
* <65A Peak @ 120VAC
* <130A Peak @ 230VAC
- Efficiency: 80+%
- Output Ripple: 1% Max
- Switching Frequency: 65 kHz
- Line Regulation: +/- 1%
- Load Regulation: +/- 3%
- 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: 30C to 70C (-22F to 158F)
- Operating Humidity: 35 to 95% Noncondensing
- AC Connector: IEC-320 C6
- Data IN / POE: RJ45 Shielded Socket
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power
- Max. Surge Discharge: 1500A (8/20 us) Power
- Peak Pulse Current: 36A (10/1000 us) Data
- Shunt Capacitance: <5 pF data
- Response Time: <1 ns
- Compliance:
* IEC 60950-1:2005+A1
* UL60950-1
* EN55022:2010, EN55024:2010
* FCC Class B
- AC Cable with Earth Ground: USA, EU, AR, BR, UL, CCC, Mexico
- Dimensions: 96×62×35 mm
- Weight: 166 g
* Surge protection
* Clamping protection
* Maximum surge discharge
* Peak pulse current
* AC cable with earth ground
Specifications
- Output Voltage: 48VDC @ 0.5A
- LAN Activity Indicator: No
- Gigabit LAN Port: Yes
- Remote Reset Capability: No
- Reset Button: No
- Input Voltage: 90-260VAC @ 47-63 Hz
- Input Current:
* 0.6A @ 120VAC
* 0.4A @ 240VAC
- Inrush Current:
* <65A Peak @ 120VAC
* <130A Peak @ 230VAC
- Efficiency: 80+%
- Output Ripple: 1% Max
- Switching Frequency: 65 kHz
- Line Regulation: +/- 1%
- Load Regulation: +/- 3%
- 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: 30C to 70C (-22F to 158F)
- Operating Humidity: 35 to 95% Noncondensing
- AC Connector: IEC-320 C6
- Data IN / POE: RJ45 Shielded Socket
- Surge Protection: Difference and Common Mode
- Clamping Protection: 11V Data, 60V Power
- Max. Surge Discharge: 1500A (8/20 us) Power
- Peak Pulse Current: 36A (10/1000 us) Data
- Shunt Capacitance: <5 pF data
- Response Time: <1 ns
- Compliance:
* IEC 60950-1:2005+A1
* UL60950-1
* EN55022:2010, EN55024:2010
* FCC Class B
- AC Cable with Earth Ground: USA, EU, AR, BR, UL, CCC, Mexico
- Dimensions: 96×62×35 mm
- Weight: 166 g
- Masa
- 0,2744
