Ubiquiti UniFi 5-Port full-managed Multi-Gigabit-Layer-2-Switch, PoE support, 4x 10 Gbit/s Ethernet, 1x Gigabit Ethernet (USW-Flex-XG)

- A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.

- (4) 10 GbE ports
- (1) GbE PoE+ input port for power


Mechanical

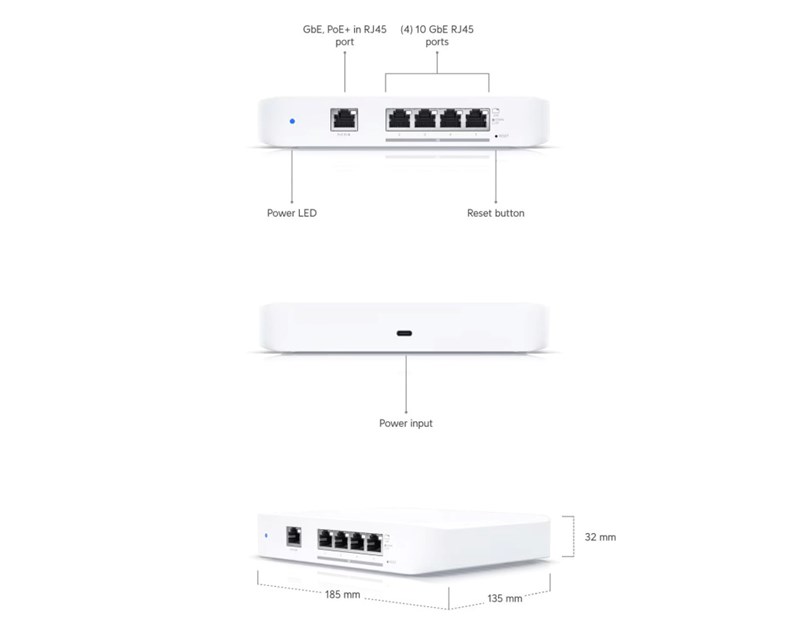

- Dimensions: 135 x 185 x 32 mm (5.3 x 7.3 x 1.3")
- Weight: 1.2 kg (2.7 lb)
- Enclosure material: Polycarbonate

Hardware
- Management interface. Ethernet In-Band
- Networking interface

• (1) GbE, PoE+ RJ45 port

• (4) 10 GbE RJ45 ports
- Total non-blocking throughput: 41 Gbps
- Switching capacity: 82 Gbps
- Forwarding rate: 61.012 Mpps
- Power method

• (1) PoE+, 50—57V DC, 25W

• (1) USB Type-C, 5V DC, 5A
- Power supply:

• PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)

• AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included)
- Supported voltage range: 90—264V AC (Adapter)
- Max. power consumption: 25W
- ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
- Button: Factory reset
- Ambient operating temperature: -5 to 45° C (23 to 113° F)
- Ambient operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC

Switching Features
- Layer 2 features:

• IGMP snooping

• STP / RSTP with priorities and port-level disable

• Port isolation

• Storm control

• Voice VLAN

• Port mirroring

• LACP port aggregation

• Multicast / broadcast rate limiting

• MAC address blocking

• Flow control

• 802.1X control

• Jumbo frames

• Proprietary loop protection

• DHCP snooping / guarding

• Egress rate limit

• LLDP-MED

• Port restricted by MAC

• Device isolation with ACLs

LEDs
- System: Status
- Ethernet: Speed/link/activity

Application Requirements
- UniFi Network: Version 6.1.67 and later
