ATEN 2-port USB DisplayPort KVM Switch sa kablovima (CS22DP)

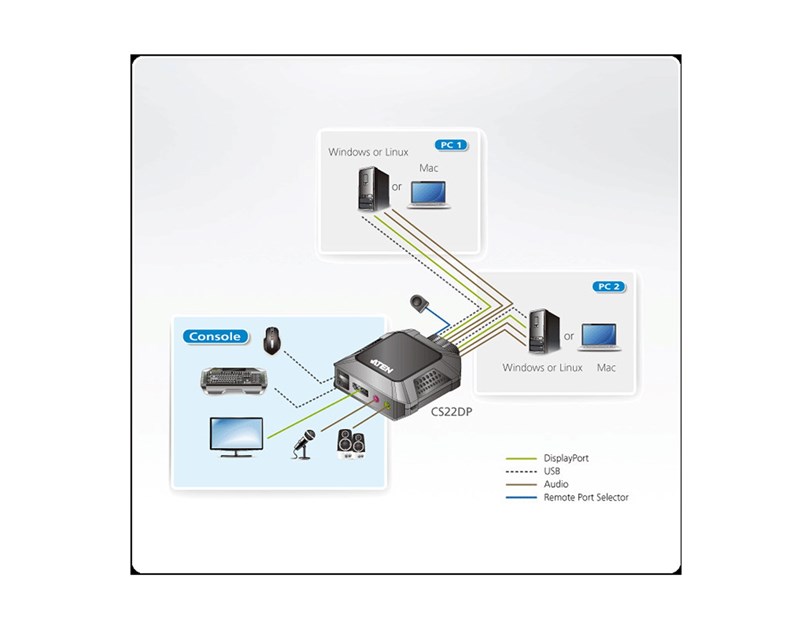

- The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio
- With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton
- The CS22DP supports multiplatform operations allowing you to switch between two PCs running different operating systems
- Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized
- Its fast and easy to set up the CS22DP
- Simply plug the KVM cables into their respective ports on the CS22DP and on the computers
- There is no need to install software or configure devices - just plug and play
* To connect a VGA/DVI/HDMI monitor to the DisplayPort console port, it requires a separate purchase of DisplayPort to VGA/DVI/HDMI adapter with its own power supply

Features
- One KVM console controls two USB DisplayPort computers
- Superior video quality - up to 4096×2160 @ 30Hz
- Computer selection via Remote Port Selector
- Multiplatform support - Windows, Mac, and Linux
- Supports microphone and speakers
- The console USB ports can be used for USB peripheral sharing
* The CS22DP may require an external power supply via the USB Micro-B Power Port. For the USB Micro-B cable connecting to the USB Micro-B Power Port, it requires a separate purchase based on the type of the power supply you use
- Supports USB hot-plugging
- DisplayPort 1.1 compliant; HDCP compliant
- Bus-powered

Specifcations
- Computer Connections: 2
- Port Selection: Remote Port Selector

CONNECTORS
- Console Ports:
1× DisplayPort Female
2× USB Type A Female
1× 3.5mm Audio Jack Female (Green)
1× 3.5mm Audio Jack Female (Pink)
- KVM (Computer) Ports:
2× DisplayPort Male
2× USB Type A Male
2× 3.5mm Audio Jack Male (Green)
2× 3.5mm Audio Jack Male (Pink)
- Power (Optional):
1× USB Micro Type B Female

LEDs
- KVM Port (On Line /Selected): 2 (White)

CABLE LENGTH
- KVM: 2× 1.2 m
- Remote Port Selector: 1.8 m

EMULATION
- Keyboard / Mouse: N/A

VIDEO
- 4096×2160 @ 30Hz

POWER CONSUMPTION
- DC5V:1.38W:28BTU

ENVIRONMENTAL
- Operating Temperature: 0C to 50C
- Storage Temperature: -20C to 60C
- Humidity: 0% - 80% RH, Non-condensing

PHYSICAL PROPERTIES
- Housing: Plastic
- Weight: 0.35 kg
- Dimensions (L×W×H): 8.34×8.42×3.04 cm
* For some of rack mount products, please note that the standard physical dimensions of W×D×H are expressed using a L×W×H format

PACKAGE CONTENTS

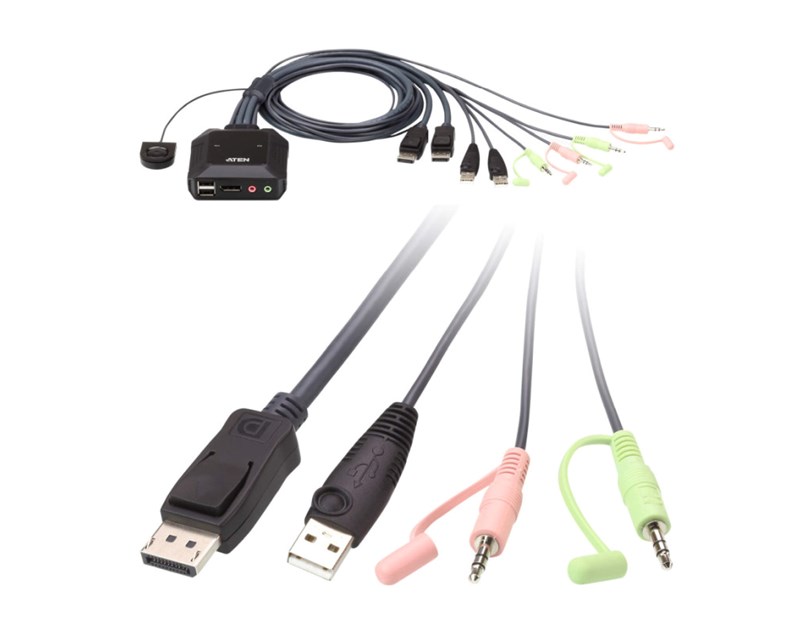

1× CS22DP 2-Port USB DisplayPort Cable KVM Switch
1× User Instructions
