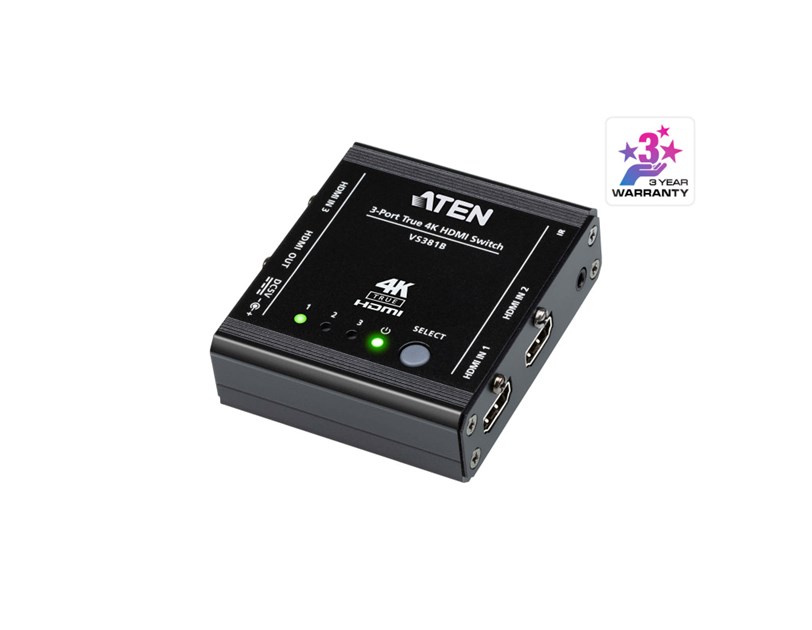

Aten 3-Port True 4K HDMI Switch
-
Šifra artikla14.01.7205
-
Kataloški brojVS381B
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}

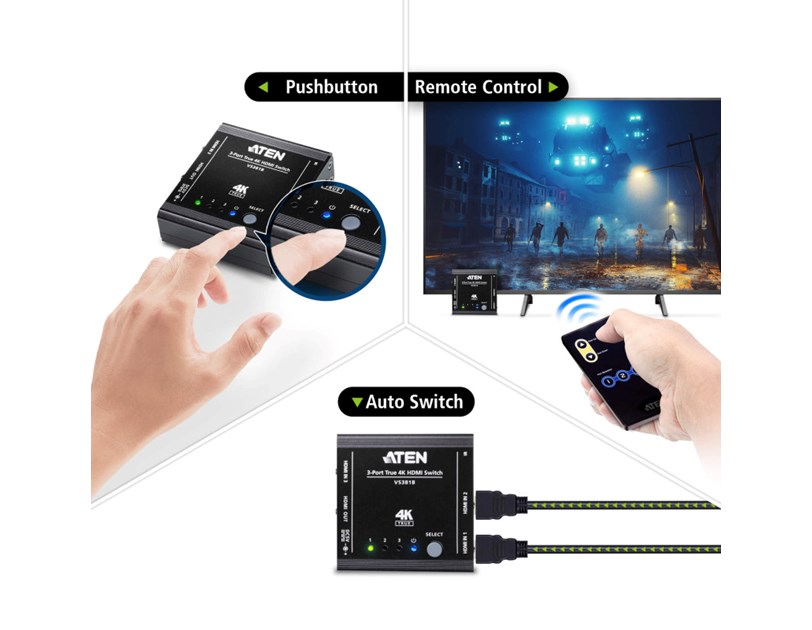

- The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides users to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.
- VS381B is a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
Specifications
LEDs
- Input: 3 x HDMI-In (Green)
- Power: 1 x Power LED (Green)
Pushbuttons
- Select: 1 x push button (input selection)
Audio
- Input: 3 x HDMI Type A Female (Black)
- Output: 1 x HDMI Type A Female (Black)
Video Input
- Interfaces: 3 x HDMI Type A Female (Black)
- Impedance: 100 ?

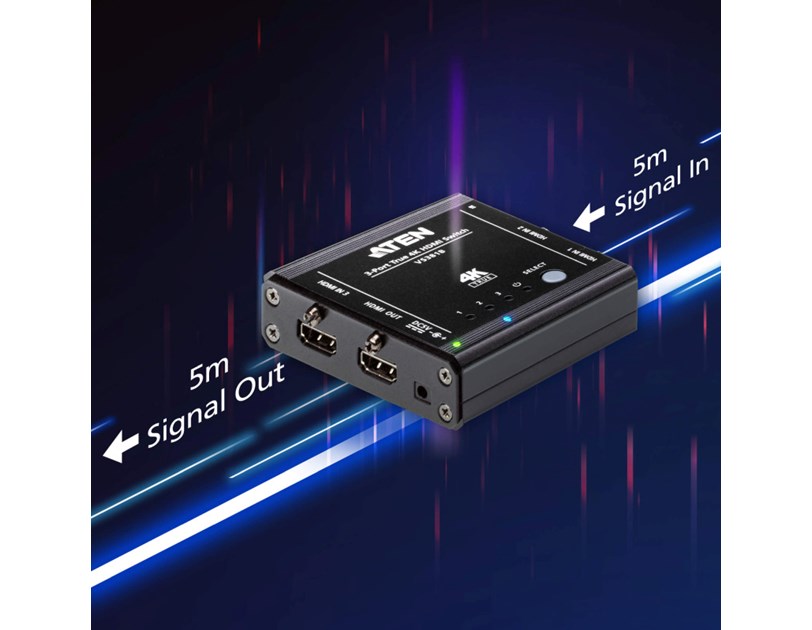

- Max. Distance: Max 5m Up to 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: Max 5m Up to 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Video
- Max. Data Rate: 18 Gbps (6 Gbps Per Lane)
- Max. Pixel Clock: 600 MHz
- Compliance
• HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision)
• HDCP 2.2
- Max. Resolution: 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Control
- IR: 1 x Mini Stereo Jack Female (Black) / Max distance 5m
Connectors
Power: 1 x DC Jack
*Note: ATEN strongly recommend to use the USB via USB to DC cable (supplied) and a 5V/0.5A power adapter (self-supplied) as the main power source for the unit. The power supply from the HDMI connection may be insufficient for the unit to operate fully.
Power Consumption
- DC5V:1.46W:6BTU
Environmental
- Operating Temperature: 0-40 °C
- Storage Temperature: -20 - 60 °C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 0.15 kg ( 0.33 lb )
- Dimensions (L x W x H): 7.16 x 7.90 x 2.55 cm (2.82 x 3.11 x 1 in.)
- Carton Lot: 20 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- VS381B is a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
Specifications
LEDs
- Input: 3 x HDMI-In (Green)
- Power: 1 x Power LED (Green)
Pushbuttons
- Select: 1 x push button (input selection)
Audio
- Input: 3 x HDMI Type A Female (Black)
- Output: 1 x HDMI Type A Female (Black)
Video Input
- Interfaces: 3 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: Max 5m Up to 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Video Output
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: Max 5m Up to 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Video
- Max. Data Rate: 18 Gbps (6 Gbps Per Lane)
- Max. Pixel Clock: 600 MHz
- Compliance
• HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision)
• HDCP 2.2
- Max. Resolution: 4096 x 2160 / 3840 x 2160 60Hz (4:4:4)
Control
- IR: 1 x Mini Stereo Jack Female (Black) / Max distance 5m
Connectors
Power: 1 x DC Jack
*Note: ATEN strongly recommend to use the USB via USB to DC cable (supplied) and a 5V/0.5A power adapter (self-supplied) as the main power source for the unit. The power supply from the HDMI connection may be insufficient for the unit to operate fully.
Power Consumption
- DC5V:1.46W:6BTU
Environmental
- Operating Temperature: 0-40 °C
- Storage Temperature: -20 - 60 °C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 0.15 kg ( 0.33 lb )
- Dimensions (L x W x H): 7.16 x 7.90 x 2.55 cm (2.82 x 3.11 x 1 in.)
- Carton Lot: 20 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
