Aten 4-Port 4K HDMI razdjelnik (VS184A)

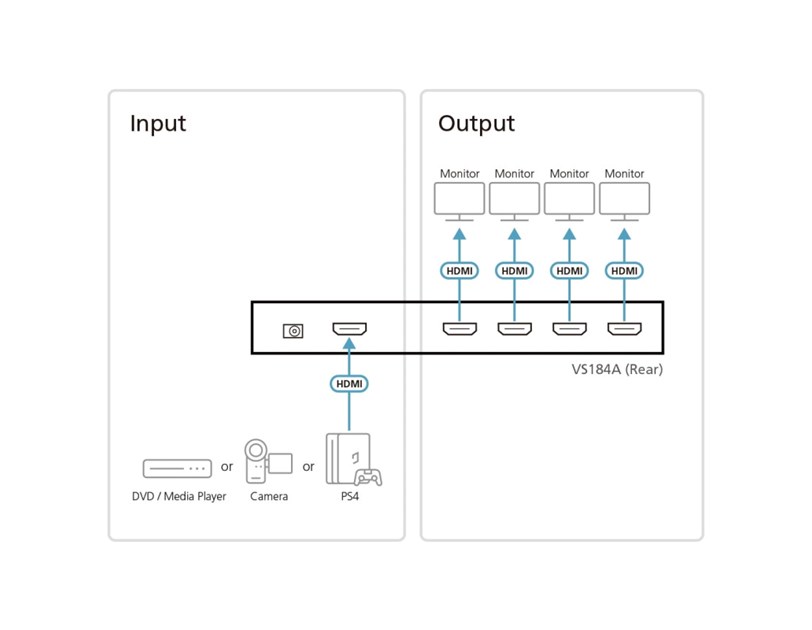

- The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

- The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Specifications
Video Input
- Interfaces: 1 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 3m 3840x2160 30Hz (4:4:4)

Video Output
- Interfaces: 4 x HDMI Type A Female (Black)
- Impedance: 100 ?
- Max. Distance: 15m 3840x2160 30Hz (4:4:4)

Video
- Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
- Max. Pixel Clock: 340 MHz
- Compliance

• HDMI (3D, Deep Color, 4K);

• HDCP Compatible
- Max. Resolution

• Up to 4096 x 2160 / 3840 x 2160 60Hz (4:2:0);

• 4096 x 2160 / 3840 x 2160 30Hz (4:4:4)

Audio
- Input: 1 x HDMI Type A Female (Black)
- Output. 4 x HDMI Type A Female (Black)

Connectors
- Power: 1 x DC Jack

Power Consumption:
- DC5.3V:6.02W:28BTU

Environmental
- Operating Temperature: 0-50 °C
- Storage Temperature: -20 - 60 °C
- Humidity: 0 - 80% RH, Non-Condensing

Physical Properties
- Housing: Metal
- Weight: 0.47 kg ( 1.04 lb )
- Dimensions (L x W x H): 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.)
- Carton Lot: 20 pcs
* Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
