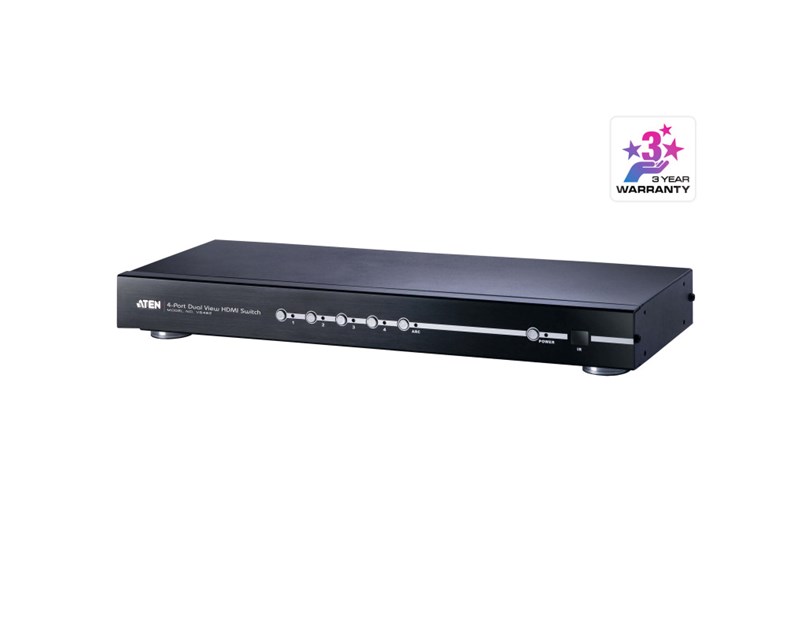

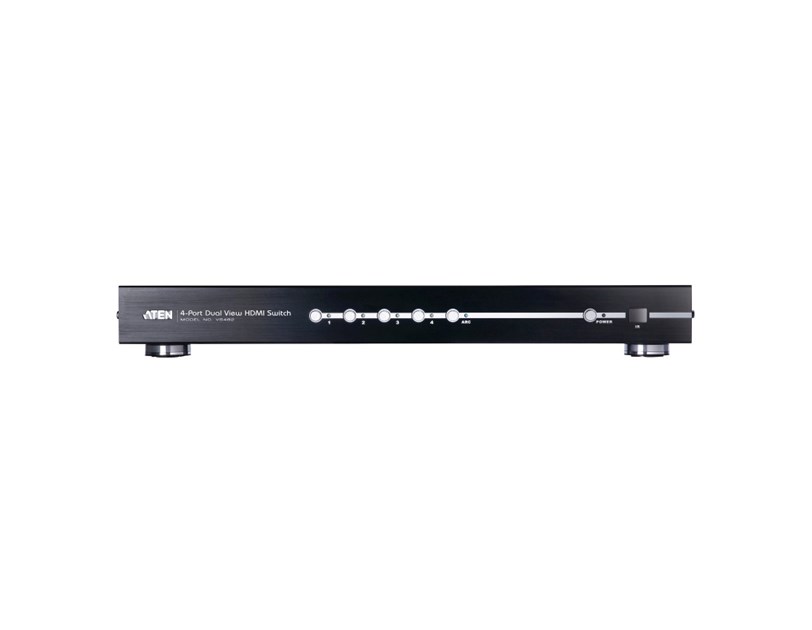

Aten 4-Port HDMI Switch with Dual Output
-
Šifra artikla14.01.6417
-
Kataloški brojVS482
-
Jamstvo24 mjeseca
{{CurrentProduct.SinglePriceToPay_print}}
- With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.

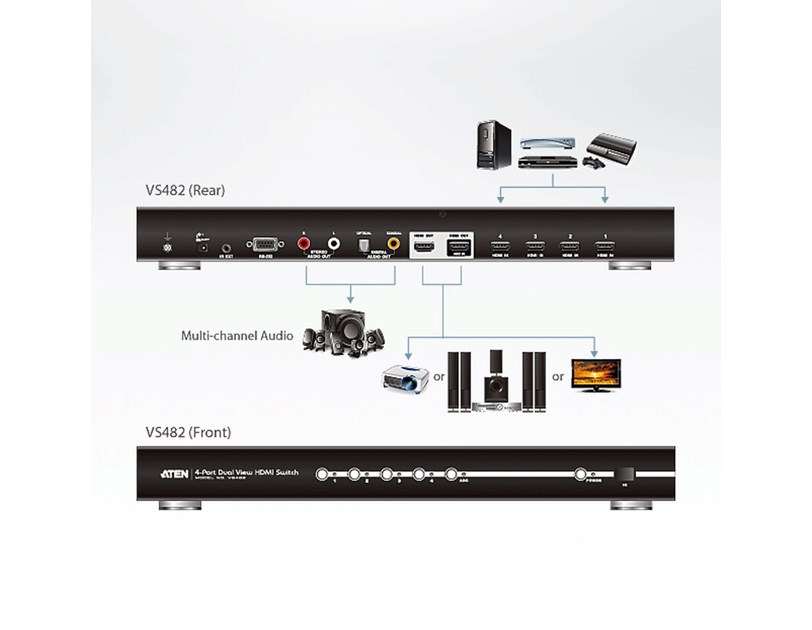

- The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
Specifications
Video Input
Interfaces: 4 x HDMI Type A Female (Black)
Impedance: 100 ?
Max. Distance: 3m 1920*1080 60 (4:4:4)
Video Output
Interfaces: 2 x HDMI Type A Female (Black)
Impedance: 100 ?
Max. Distance: 15m 1920*1080 60 (4:4:4)
Video
Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock: 225 MHz
Compliance
• HDMI (3D, Audio Return Channel, Deep Color)
• HDCP Compatible
• Consumer Electronics Control (CEC)
Max. Resolution: Up to 1080p
Audio
Input: 4 x HDMI Type A Female (Black)
Output: Analog: 2 x RCA (Red / White)
Digital:
• 1 x HDMI Type A Female (Black);
• 1 x Toslink (Black);
• 1 x RCA (Orange)
Control
- RS-232
• Connector: 1 x DB-9 Female (Black)
• Baud Rate and Protocol:
• Baud Rate: 19200, Data Bits: 8,
• Stop Bits:1, Parity: No, Flow Control: No
- IR: 1 x Mini Stereo Jack Female (Black)
EDID Settings
- EDID Mode: Default / Port1 / Auto

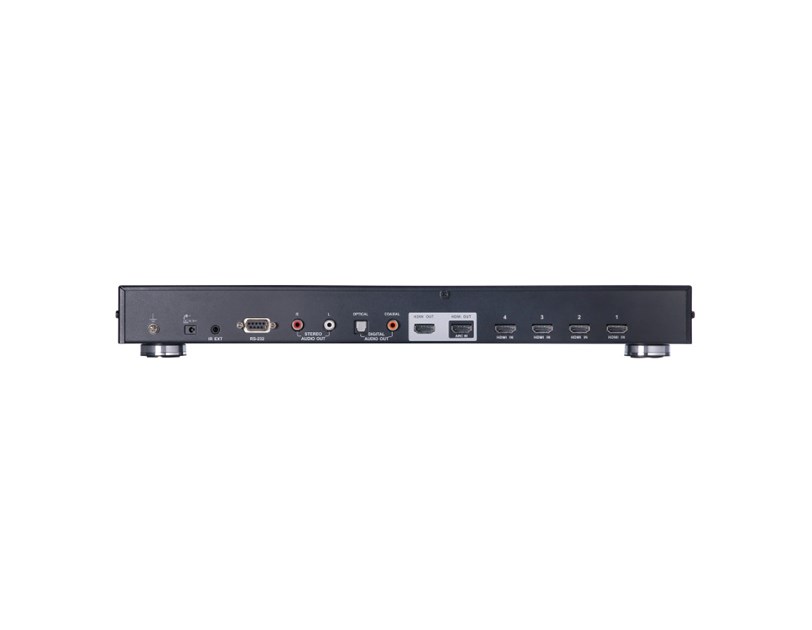

Connectors
- Power: 1 x DC Jack
Power Consumption
- DC5.3V:5.74W:27BTU
Environmental
- Operating Temperature: 0 - 50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 2.17 kg ( 4.78 lb )
- Dimensions (L x W x H): 43.72 x 15.86 x 4.40 cm (17.21 x 6.24 x 1.73 in.)
- Carton Lot: 3 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
Specifications
Video Input
Interfaces: 4 x HDMI Type A Female (Black)
Impedance: 100 ?
Max. Distance: 3m 1920*1080 60 (4:4:4)
Video Output
Interfaces: 2 x HDMI Type A Female (Black)
Impedance: 100 ?
Max. Distance: 15m 1920*1080 60 (4:4:4)
Video
Max. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock: 225 MHz
Compliance
• HDMI (3D, Audio Return Channel, Deep Color)
• HDCP Compatible
• Consumer Electronics Control (CEC)
Max. Resolution: Up to 1080p
Audio
Input: 4 x HDMI Type A Female (Black)
Output: Analog: 2 x RCA (Red / White)
Digital:
• 1 x HDMI Type A Female (Black);
• 1 x Toslink (Black);
• 1 x RCA (Orange)
Control
- RS-232
• Connector: 1 x DB-9 Female (Black)
• Baud Rate and Protocol:
• Baud Rate: 19200, Data Bits: 8,
• Stop Bits:1, Parity: No, Flow Control: No
- IR: 1 x Mini Stereo Jack Female (Black)
EDID Settings
- EDID Mode: Default / Port1 / Auto
Connectors
- Power: 1 x DC Jack
Power Consumption
- DC5.3V:5.74W:27BTU
Environmental
- Operating Temperature: 0 - 50°C
- Storage Temperature: -20 - 60°C
- Humidity: 0 - 80% RH, Non-Condensing
Physical Properties
- Housing: Metal
- Weight: 2.17 kg ( 4.78 lb )
- Dimensions (L x W x H): 43.72 x 15.86 x 4.40 cm (17.21 x 6.24 x 1.73 in.)
- Carton Lot: 3 pcs
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
